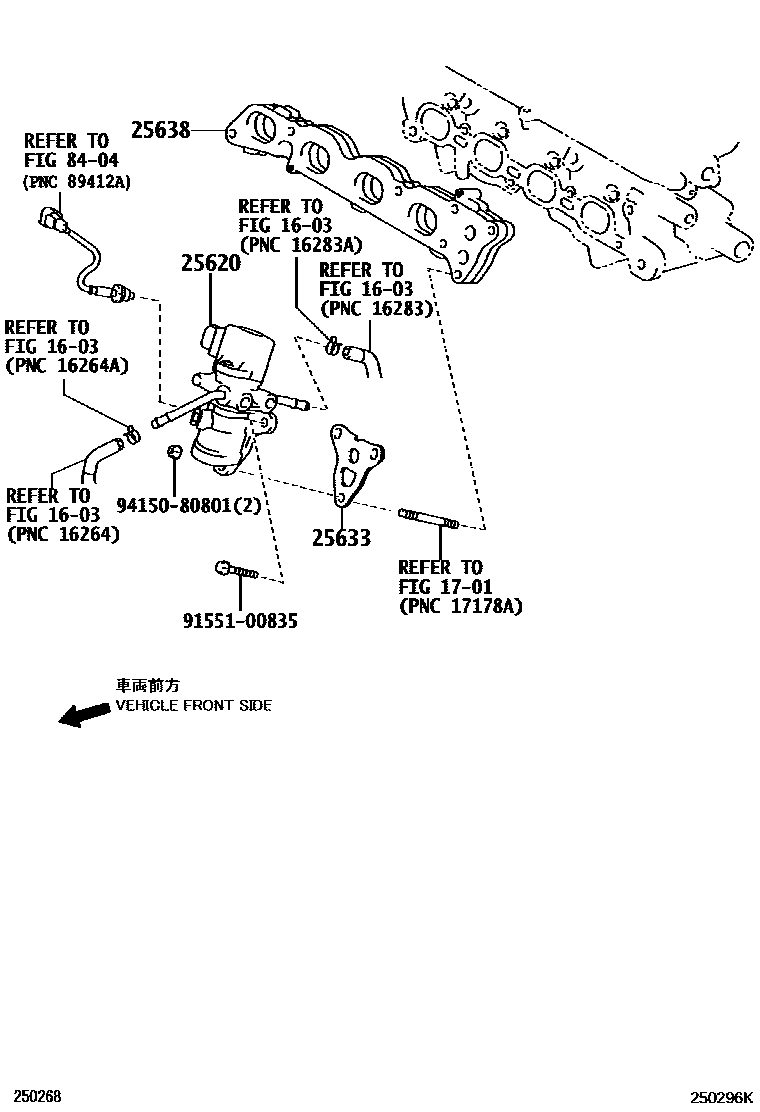

EXHAUST GAS RECIRCULATION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25620VALVE ASSY, EGR

main25620-21010i1NZFE..NZT260..CBU200705-201004

main25620-21030i1NZFE..NZT260..CBU201212-201606

25633GASKET, EGR VALVE

main25633-21020i1NZFE..NZT260..CBU200705-201004

25638CHAMBER, EGR DELIVERY

main25638-21020i1NZFE..NZT260..CBU200705-201004

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9155100835

main91551-00835

9415080801

main94150-80801

8 parts on this diagram · 1 diagram in section
