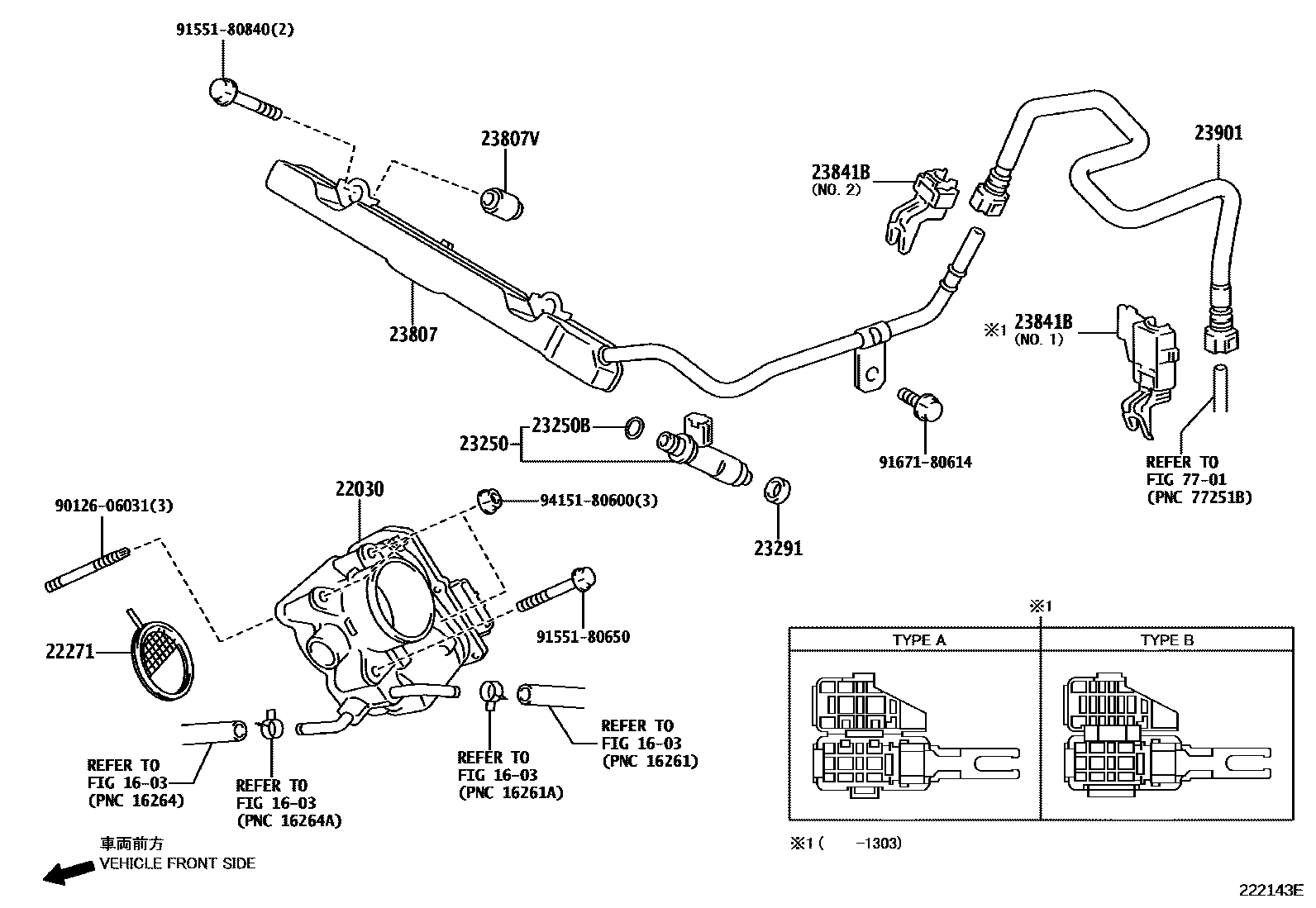

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i1NZFE..NZT260..CBU201004-201212

main22030-21040i1NZFE..NZT260..CBU201606

22271GASKET, THROTTLE BODY

main22271-21060i1NZFE..NZT260..CBU201004-201606

main22271-75031i2ZRFAE,3ZRFAE..ZRT26#..CBU201004-201606

23250INJECTOR ASSY, FUEL

main23209-21040×4i1NZFE..NZT260..CBU201004-201212

main23209-21100×4i1NZFE..NZT260..CBU201212-201606

main23209-39145×4i2ZRFE,3ZRFAE..ZRT26#..CBU200705-200902

main23209-39146×4i2ZRFAE,3ZRFAE..ZRT26#..CBU201004-201212

main23209-39235×4i3ZRFAE..ZRT261..CBU201606-202009

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i1NZFE..NZT260..CBU; 2ZRFAE..ZRT260,265201606

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i1NZFE..NZT260..CBU; 2ZRFAE..ZRT260,265201606

main23291-28020×4i2ZRFAE..ZRT260,265201606

main23291-41010×4i1NZFE..NZT260..CBU201004-201107

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21030i1NZFE..NZT260..CBU201004-201410

main23807-21031i1NZFE..NZT260..CBU201606

main23814-37050i2ZRFE,3ZRFAE..ZRT26#..CBU200705-201004

main23814-37051i2ZRFAE..ZRT260,265201606

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i1NZFE..NZT260..CBU201004-201606

main23891-37010×2i2ZRFAE..ZRT260,265201606

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i1NZFE..NZT260..CBU; 2ZRFAE,3ZRFAE..ZRT26#..CBU201004-201208

main23841-21050i1NZFE..NZT260..CBU201606

main23841-37090i3ZRFAE..ZRT261..CBU201606-202009

23901TUBE SUB-ASSY, FUEL

main23901-21160i1NZFE..NZT260..CBU201606

main23901-37060i2ZRFE..ZRT26#200705-200708

main23901-37090i2ZRFE,3ZRFAE..ZRT26#..CBU200709-201004

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9012606031

main90126-06031

9155180650

main91551-80650

9155180840

main91551-80840

9167180614

main91671-80614

9415180600

main94151-80600

16 parts on this diagram · 3 diagrams in section
