Toyota 221130 — MANIFOLD

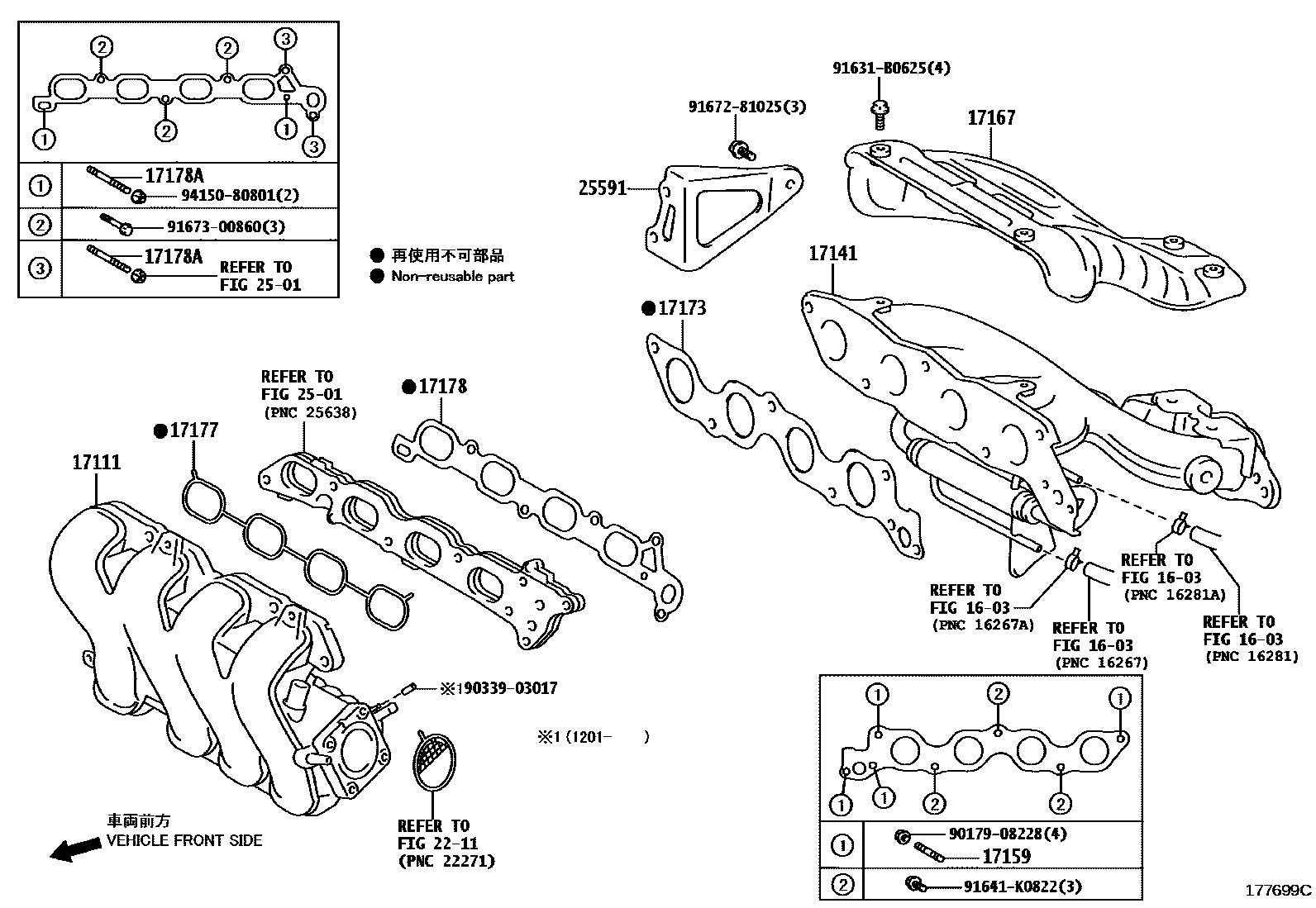

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

17111MANIFOLD, INTAKE

17141MANIFOLD, EXHAUST

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

17173GASKET, EXHAUST MANIFOLD TO HEAD

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

17178ASTUD, HEX LOBULAR(INTAKE MANIFOLD TO HEAD GASKET)

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

25591BRACKET, MANIFOLD SUPPORT

9017908228

9033903017

91631B0625

91641K0822

9167281025

9167300860

9415080801

19 parts on this diagram · 9 diagrams in section

MANIFOLD for Toyota 221130

This section contains 37 genuine Toyota parts for the MANIFOLD system of the Toyota 221130. Key components include: JOINT, ENGINE COVER, RADIATOR & WATER OUTLET, VACUUM PIPING, MANIFOLD, INTAKE, STAY, MANIFOLD.
