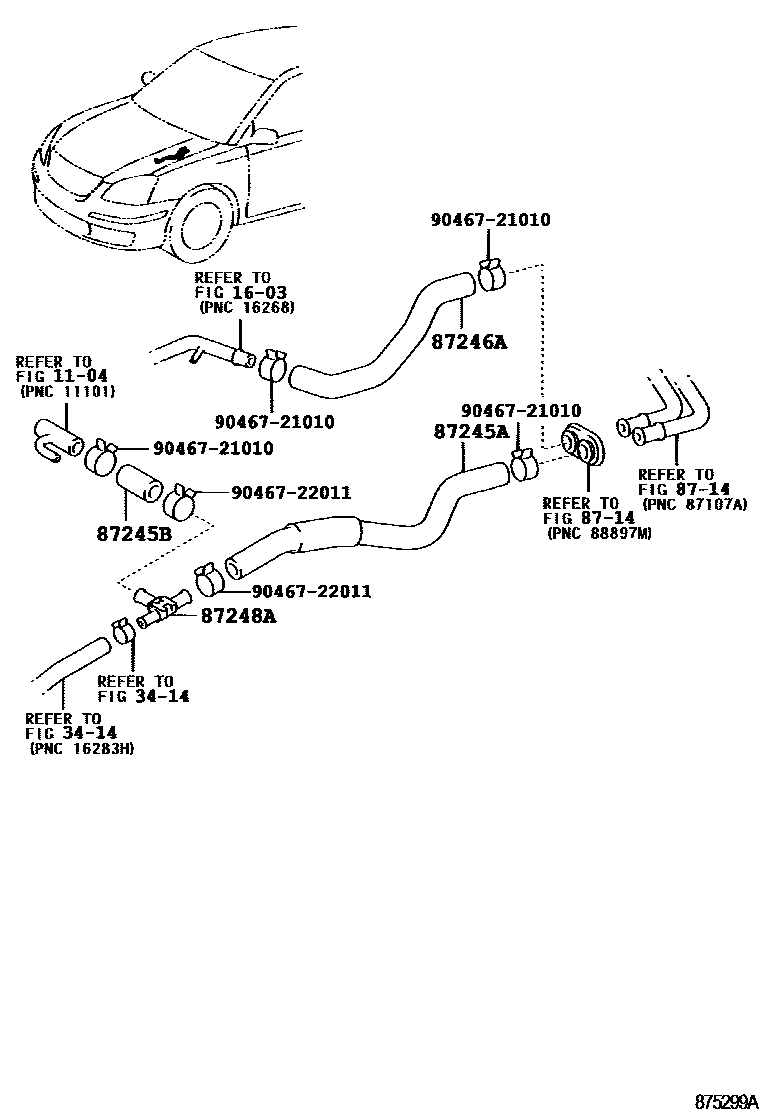

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

3414OIL COOLER & TUBE(CVT)

→ Go to FIG 34-14

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-2D600iAZT240200412-200704

main87245-2D601iAZT240200705

main87245-2D620iZZT240200112-200411

main87245-2D640iNZT240200412-200704

main87245-2D680iZZT240200411-200412

main87245-2D681iZZT24#200705

87245BHOSE, HEATER WATER, INLET B

main87245-2D660iAZT240200412-200704

main87245-2D661iAZT240200705

main87245-2D670iZZT240200112-200411

main87245-68060iZZT240200412-200705

main87245-68061iZZT240200705

87246AHOSE, HEATER WATER, OUTLET A

main87245-2D610iAZT240200112-200412

main87245-2D611iAZT240200705

main87245-2D630iZZT240200112-200411

main87245-2D631iZZT245200705

main87245-2D650iNZT240200412-200704

main87245-68050iZZT240200411-200412

main87245-68051iZZT240200705

87248APIPE, HEATER WATER INLET, A

main87248-20380iZZT240200112-200411

main87248-44180iZZT240200411-200412

9046721010

main90467-21010

9046722011

main90467-22011

10 parts on this diagram · 5 diagrams in section
