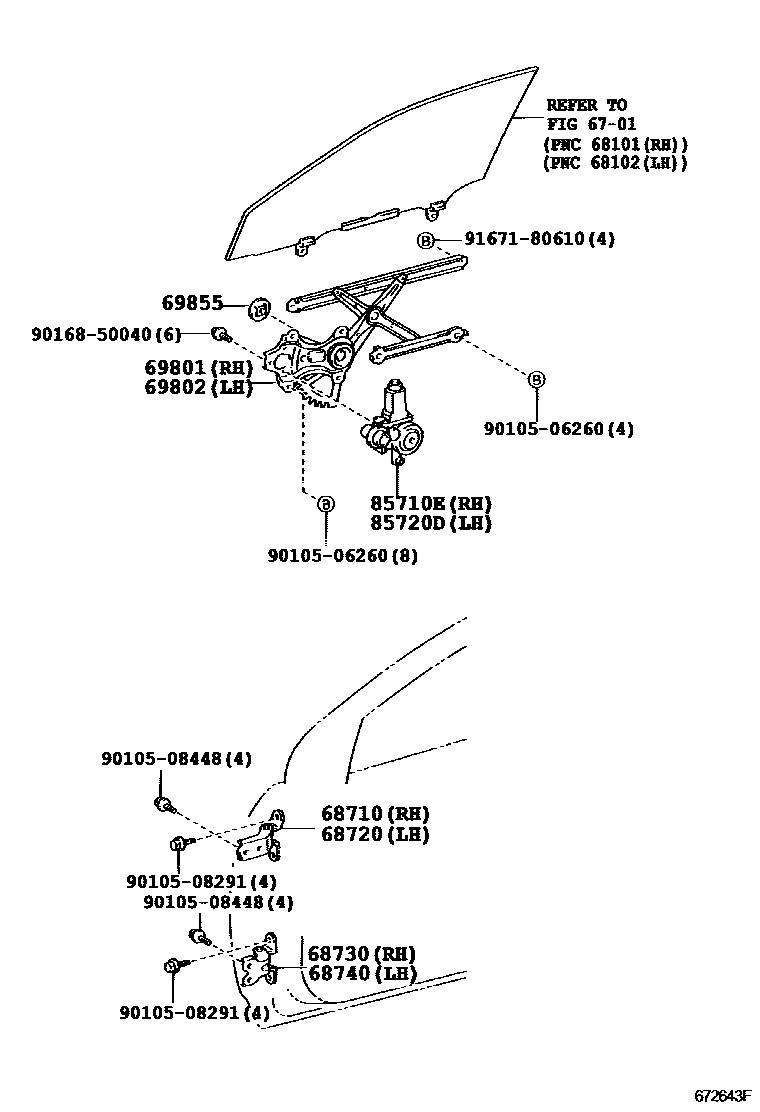

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iAZT240,NZT240,ZZT24#200112-200412

main68710-12151iAZT240,NZT240,ZZT24#200610-200705

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iAZT240,NZT240,ZZT24#200112-200412

main68720-12151iAZT240,NZT240,ZZT24#200610-200705

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-52010iAZT240,NZT240,ZZT24#200112-200412

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-52010iAZT240,NZT240,ZZT24#200112-200412

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20300iAZT240,NZT240,ZZT24#200112-200412

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20320iAZT240,NZT240,ZZT24#200112-200412

69855COVER, DOOR WINDOW REGULATOR GEAR

main69855-20010×2iAZT240,NZT240,ZZT24#200112-200412

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-20390iAZT240,NZT240,ZZT24#200112-200412

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-20410iAZT240,NZT240,ZZT24#200112-200412

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9016850040

main90168-50040

9167180610

main91671-80610

15 parts on this diagram · 1 diagram in section
