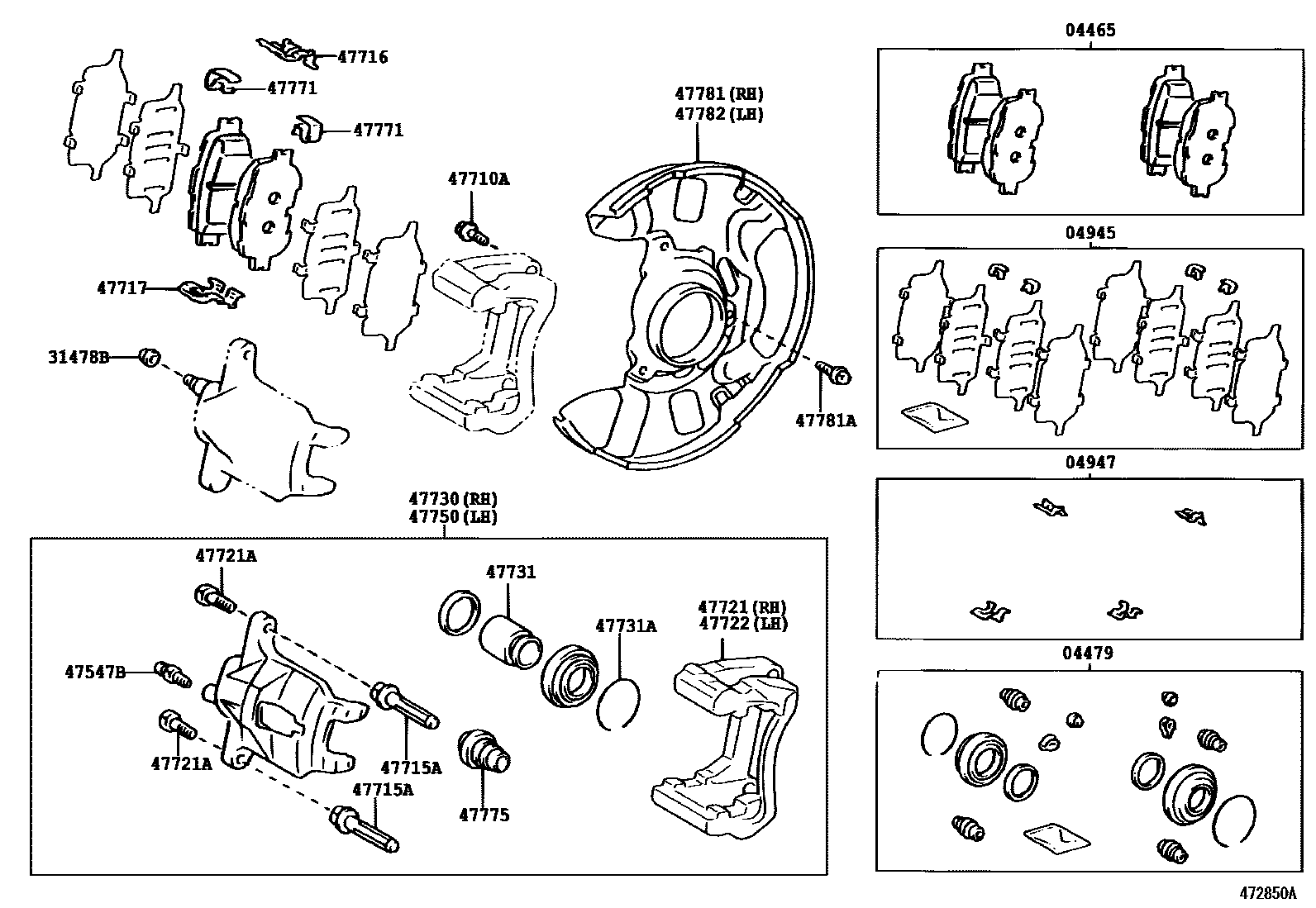

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-20540iAZT240,ZZT245200112-200412

main04465-32230iNZT240,ZZT240200112-200412

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-13020iAZT240,ZZT245200605

main04479-20320iNZT240,ZZT240200412

main04479-20330iAZT240,ZZT245200412-200604

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-13030iAZT240,ZZT245200412

main04945-20210iNZT240,ZZT240200112-200412

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20110iNZT240,ZZT240200112-200412

main04947-20120iAZT240,ZZT245200112-200412

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAZT240,NZT240,ZZT24#200112-200412

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iAZT240,NZT240,ZZT24#200112-200412

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4iAZT240,NZT240,ZZT24#200112-200412

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22080×4iAZT240,ZZT245200112-200412

main47715-52010×4iNZT240,ZZT240200412

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20200×2iNZT240,ZZT240200112-200412

main47716-20210×2iAZT240,ZZT245200412

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20100×2iNZT240,ZZT240200112-200412

main47717-20110×2iAZT240,ZZT245200412

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20440iNZT240,ZZT240200412

main47721-20460iAZT240,ZZT245200412

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164×4iAZT240,NZT240,ZZT24#200112-200412

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-20130iNZT240,ZZT240200112-200412

main47722-20150iAZT240,ZZT245200412

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20600iNZT240,ZZT240200112-200412

main47730-20640iAZT240,ZZT245200412

47731PISTON, FRONT DISC BRAKE

main47731-20260×2iNZT240,ZZT240200112-200412

main47731-44010×2iAZT240,ZZT245200412

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005×2iNZT240,ZZT240200412

main90522-66001×2iAZT240,ZZT245200412

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20510iNZT240,ZZT240200412

main47750-20640iAZT240,ZZT245200412

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32040×4iAZT240,ZZT245200112-200412

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070×4iAZT240,ZZT245200112-200412

main47775-50010×4iAZT240,ZZT245200605

main47775-52010×4iNZT240,ZZT240200112-200412

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-12240iAZT240,NZT240,ZZT24#200112-200412

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iAZT240,NZT240,ZZT24#200112-200412

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-12240iAZT240,NZT240,ZZT24#200112-200412

22 parts on this diagram · 2 diagrams in section
