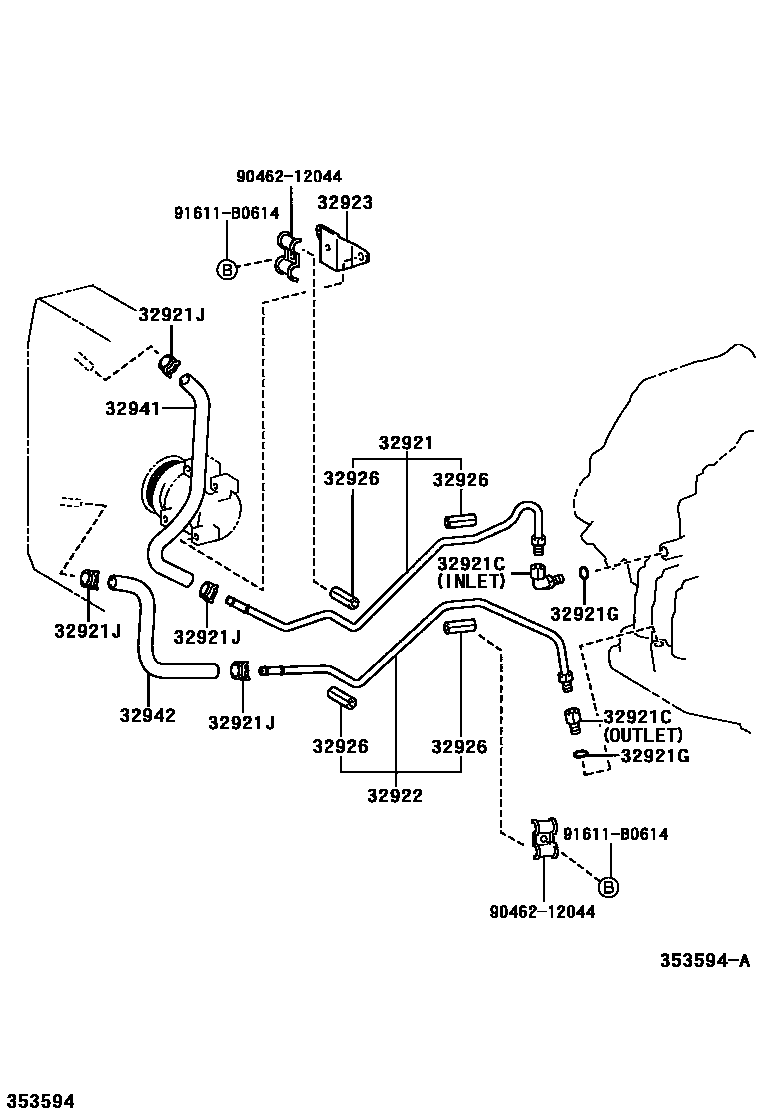

OIL COOLER & TUBE (ATM)

0001 1U340E 0002 1U341E 0003 1U341E 0004 1U341F

32921TUBE, OIL COOLER INLET, NO.1

main32921-20510iNZT240200412

main32921-20560iZZT245200112-200412

32921CUNION(FOR OIL COOLER TUBE)

main90404-13004×2iZZT240200412

main90404-16031iNZT240,ZZT245200112-200412

main90407-16010iNZT240,ZZT245200412

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iNZT240,ZZT24#200112-200412

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16022×4iNZT240,ZZT24#200412-200705

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-20530iNZT240200412

main32922-63020iZZT245200112-200412

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-20180iNZT240200112-200412

main32923-32080iZZT245200412

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×4iNZT240,ZZT245200412

32941HOSE, OIL COOLER INLET, NO.1

main32941-20210iZZT240200112-200212

main32941-20220iNZT240200112-200412

main32941-20240iZZT245200412

main32941-68010iZZT240200412

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-20060iZZT240200112-200212

main32942-20070iNZT240200412

main32942-68010iZZT240200412

9046212044

main90462-12044

91611B0614

main91611-B0614

11 parts on this diagram · 4 diagrams in section
