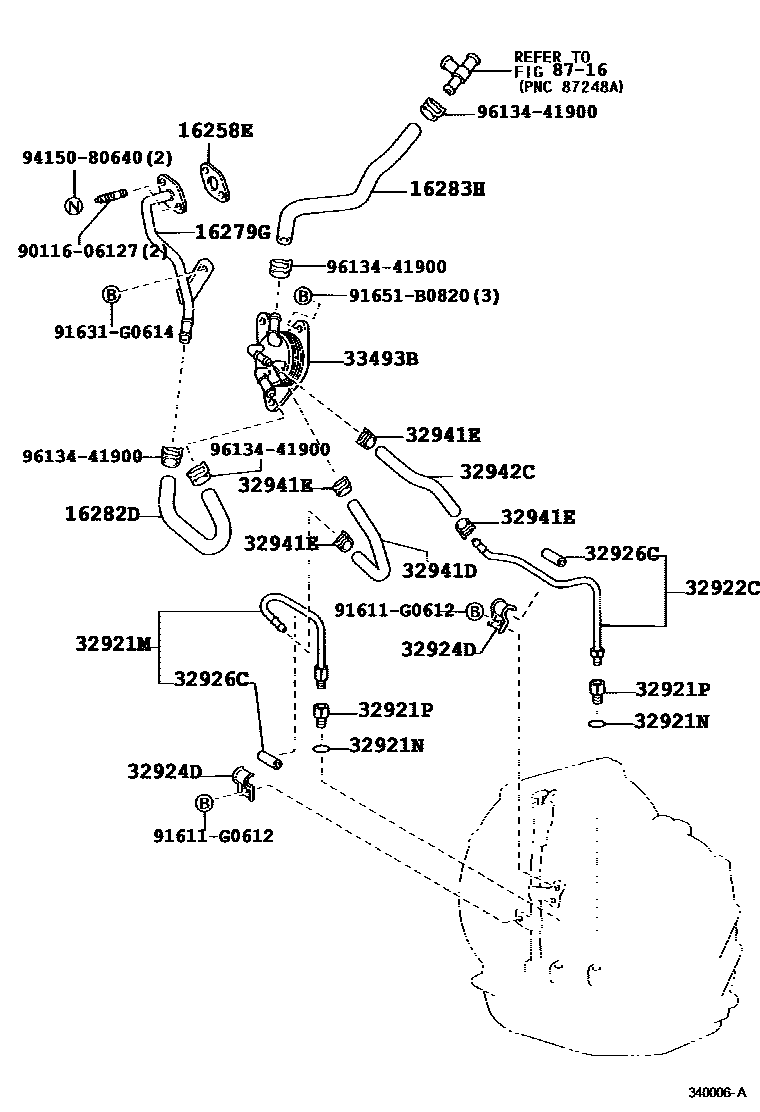

OIL COOLER & TUBE(CVT)

16258EGASKET(FOR WATER BY-PASS PIPE)

main16258-28020i1AZFSE..AZT240200112-200308

main16258-28040i1AZFSE..AZT240200308-200412

16279GPIPE, WATER BY-PASS, NO.3

main16279-28020i1AZFSE..AZT240200112-200412

16282DHOSE, WATER BY-PASS, NO.5

main16282-28020i1AZFSE..AZT240200112-200412

16283HHOSE, WATER BY-PASS, NO.6

main16283-28020i1AZFSE..AZT240200112-200412

32921MTUBE, OIL COOLER INLET, NO.1

main32921-20540iAZT240200112-200412

32921NRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iAZT240200112-200412

32921PUNION(FOR OIL COOLER TUBE)

main90404-16031×2iAZT240200112-200412

32922CTUBE, OIL COOLER OUTLET, NO.1

main32922-20520iAZT240200112-200412

32924DCLAMP, OIL COOLER TUBE, NO.2

main32924-20090×2iAZT240200112-200412

32926CCUSHION, OIL COOLER TUBE(CVT)

main32926-20010×2iAZT240200112-200412

32941DHOSE, OIL COOLER INLET

main32941-20230iAZT240200112-200412

32941ECLIP(FOR OIL COOLER TUBE)

main90467-16022×4iAZT240200112-200412

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-20080iAZT240200112-200412

33493BCOOLER, OIL

main33493-20030iAZT240200112-200412

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9011606127

main90116-06127

91611G0612

main91611-G0612

91631G0614

main91631-G0614

91651B0820

main91651-B0820

9415080640

main94150-80640

9613441900

main96134-41900

21 parts on this diagram · 1 diagram in section
