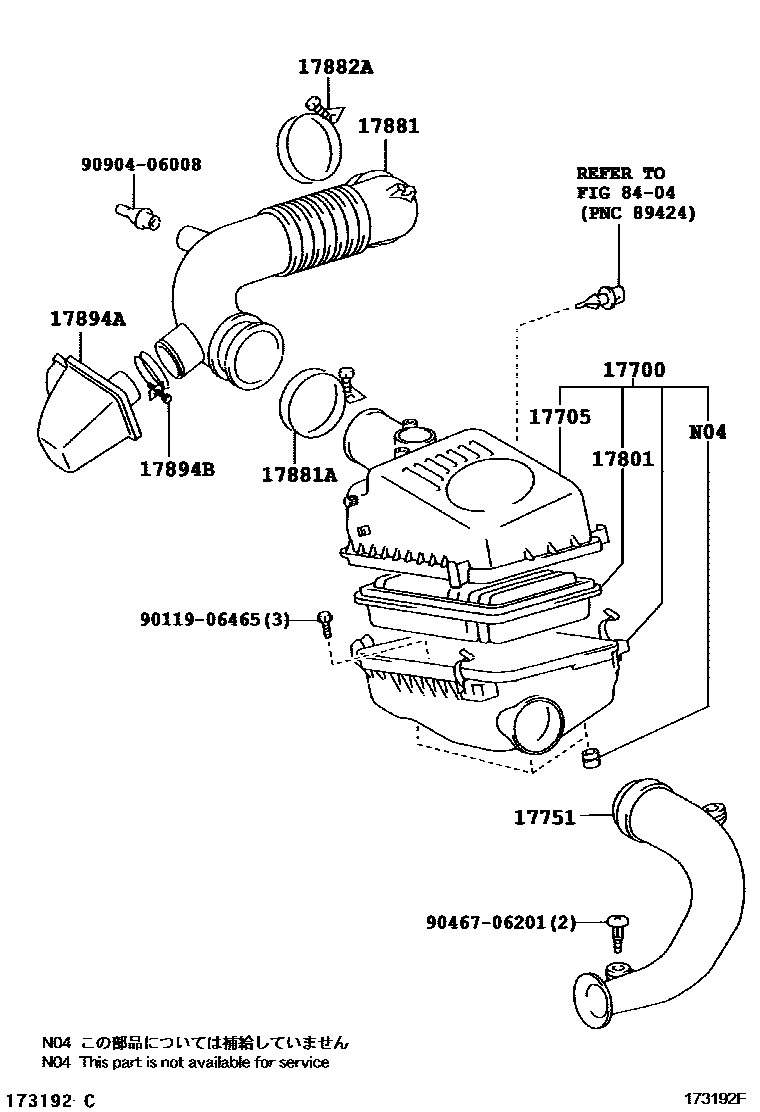

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17700CLEANER ASSY, AIR

main17700-21070i1NZFE..NZT240200112-200412

main17700-22140i1AZFSE..AZT240; 1ZZFE..ZZT24#200412

main17700-28110i1AZFSE..AZT240200112-200412

17705CAP SUB-ASSY, AIR CLEANER

main17705-21050i1NZFE..NZT240200412

main17705-22140i1AZFSE..AZT240; 1ZZFE..ZZT24#200412

main17705-28070i1AZFSE..AZT240200112-200412

17751INLET, AIR CLEANER, NO.1

main17751-22100i1AZFSE..AZT240; 1NZFE..NZT240; 1ZZFE..ZZT24#200412

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-22020i1AZFSE..AZT240; 1NZFE..NZT240; 1ZZFE..ZZT24#200112-200412

17881HOSE, AIR CLEANER, NO.1

main17881-22080i1ZZFE..ZZT245200412

main17881-22120i1ZZFE..ZZT240200412

main17881-28060i1AZFSE..AZT240200412

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i1ZZFE..ZZT240200412

main96111-10800×2i1AZFSE..AZT240; 1ZZFE..ZZT24#200112-200412

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10730i1AZFSE..AZT240200112-200412

17894ARESONATOR, INTAKE AIR, NO.2

main17894-16060i1AZFSE..AZT240200112-200412

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10500i1AZFSE..AZT240200112-200412

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011906465

main90119-06465

9046706201

main90467-06201

9090406008

main90904-06008

13 parts on this diagram · 6 diagrams in section
