HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1����-� 0002 1����-� 0003 1�� ���� 0004 1���-

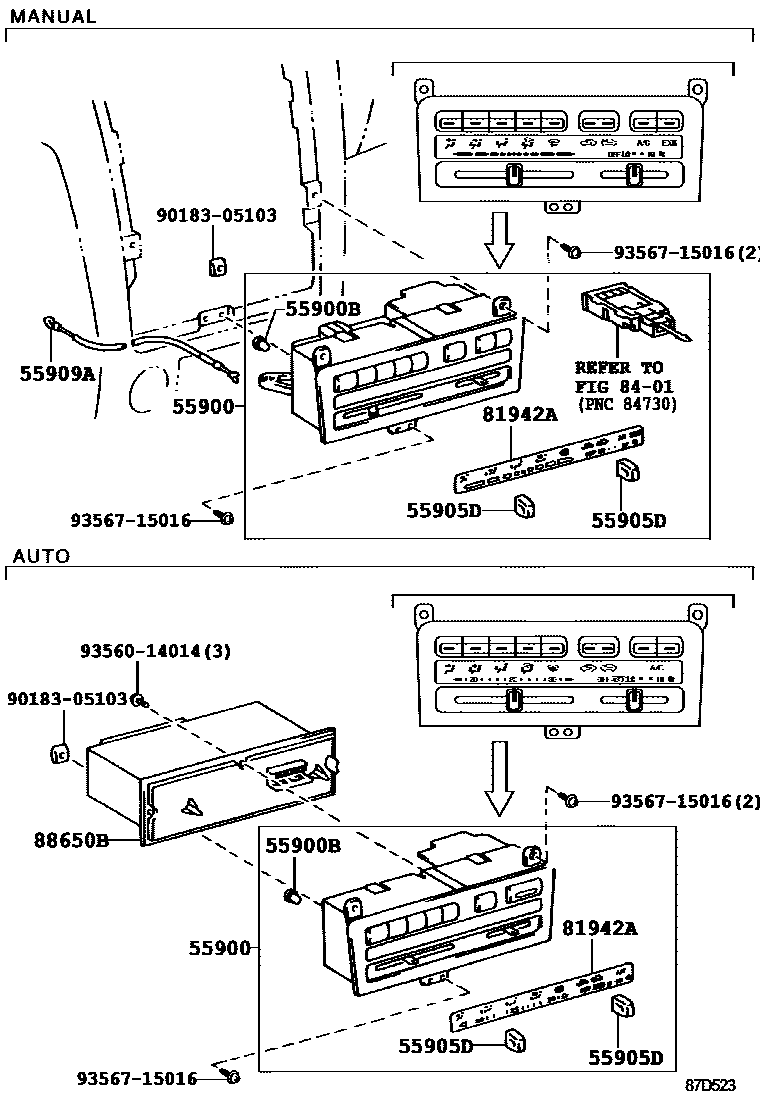

55900CONTROL ASSY, AIR CONDITIONER

main55900-2B120iAT21#199712

main55900-2B130iCT21#,ST215199712

main55900-2B280iST210199712

main55900-2B350iAT21#,CT21#,ST215199601-199712

main55900-2B360iAT211,ST215; ST210199601-199712

55900BBULB, AIR CONDITIONER CONTROL

main84999-70012×2iAT21#,CT21#,ST21#199601-199605

main84999-70018×2iAT21#,CT21#,ST21#199605-199712

main90010-05101×6iAT21#,CT21#,ST21#199712

55905DKNOB SUB-ASSY, CONTROL

main55905-20380×2iAT21#,CT21#,ST21#199601-199712

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-20190iAT21#,CT21#,ST215199601-199712

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-20470iAT21#,CT21#,ST215199601-199712

main81942-20500iAT211,ST215; ST210199601-199712

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-21070iAT21#199712

main88650-21080iCT21#,ST215199712

main88650-2B510iST21#..EFI199601-199712

main88650-2B520iAT211199601-199712

main88650-2B580iST210199712

9018305103

main90183-05103

9356014014

main93560-14014

9356715016

main93567-15016

10 parts on this diagram · 4 diagrams in section
