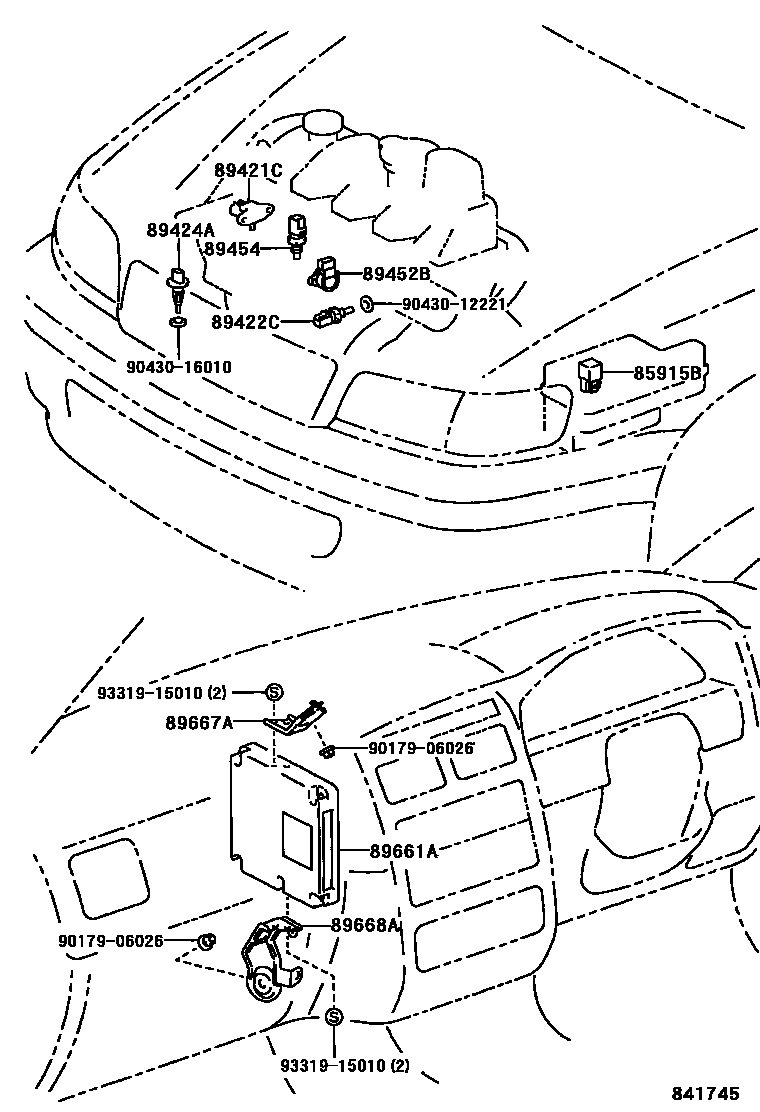

ELECTRONIC CONTROLED DIESEL (ECD)

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02012iCT21#200002

main90987-02015iCT21#199806-200002

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89420-20260iCT21#199712

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iCT21#199712

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-60010iCT21#199712

89452BSENSOR, THROTTLE POSITION

main89452-21020iCT21#199712

89454SENSOR, FUEL TEMPERATURE

main89454-60010iCT21#199712

89661ACOMPUTER, ENGINE CONTROL

main89661-21340iCT216199712

main89661-2G140iCT211..MTM199712

main89661-2G150iCT211..ATM199712

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-20380iCT21#199712

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20340iCT21#199712

9017906026

main90179-06026

9043012221

main90430-12221

9043016010

main90430-16010

9331915010

main93319-15010

13 parts on this diagram · 1 diagram in section
