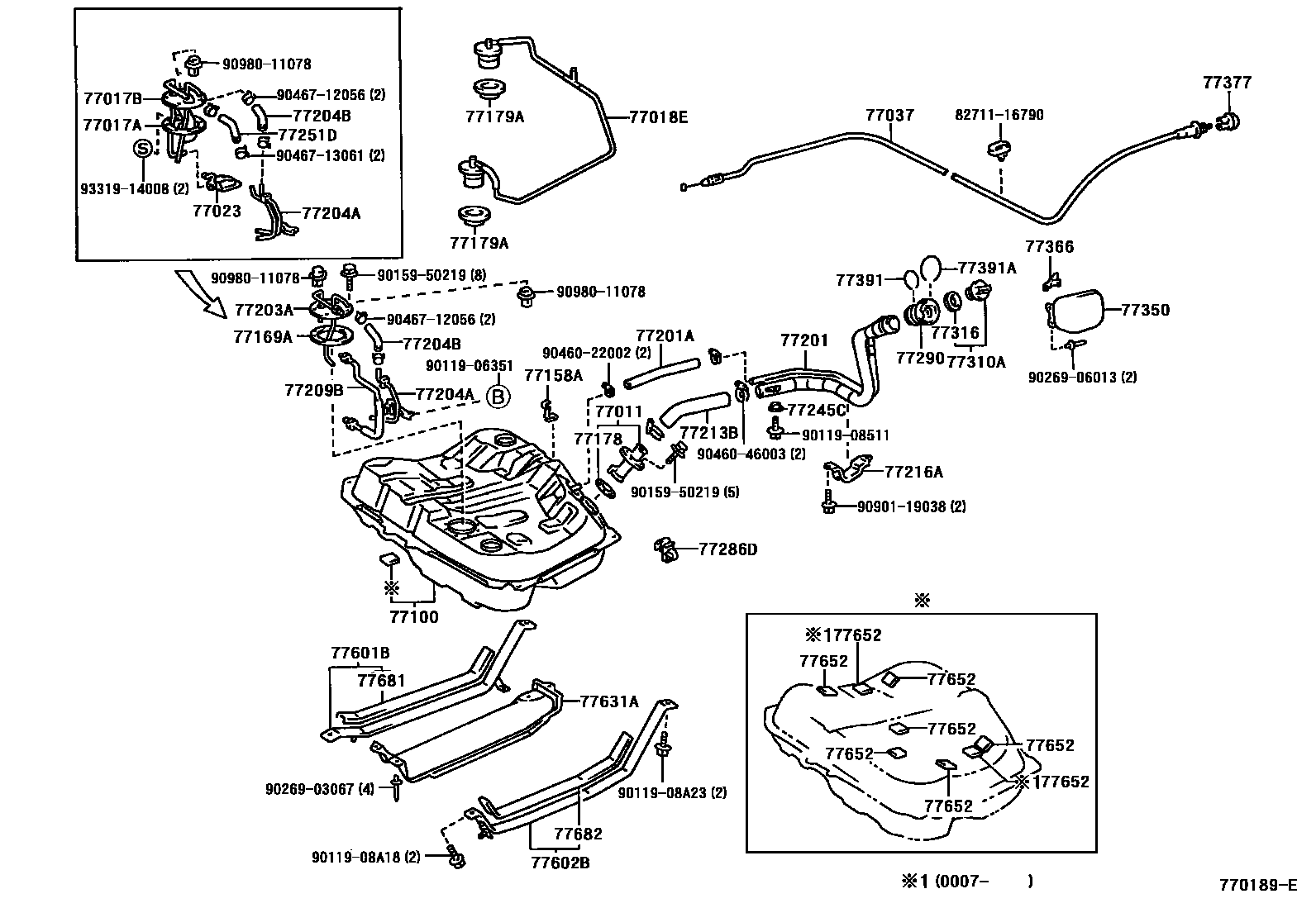

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-20100iAT21#,CT210,ST210199601-199712

main77011-32040iCT215,ST215199601-199712

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-20180iCT215199601-199712

77017AGASKET, FUEL TANK VENT

main77169-14010iCT215,ST215199601-199712

main77169-20050iCT210199601-199712

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-20190iCT210,211199601

main77017-21030iCT216199712

main77017-32071iCT215,ST215199601-199712

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-20140iAT21#,CT211,ST210199712

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-16020iCT215,ST215199601-199712

main77023-20050iCT216199712

main77023-32040iCT210,211199601

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-20110iAT21#,CT21#,ST21#199601

77100TANK ASSY, FUEL

main77001-20740iAT21#,CT210,211,ST210199601

main77001-21903iCT216,ST215199712

main77001-32912iCT215,ST215199601-199712

77158ASUPPORT, TANK SUCTION TUBE

main77158-20020iAT21#,CT210,211,ST210199601

77169AGASKET, FUEL SUCTION TUBE SET

main77169-20050iAT21#,CT211,ST210199601

main77169-60010iCT215,216,ST215199601

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iAT21#,CT21#,ST21#199601

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-33010iST210..D4;AT21#,CT211,216,ST215199601

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-20530iAT21#,CT21#,ST21#199601

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77019-20550iCT215,ST215199601-199712

main77019-21060iCT216,ST215199712

main90445-22036iAT21#,CT210,211,ST210199601

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-20140iST215199601-199712

main77203-20150iAT21#,ST210199601-199911

main77203-20170iST210199601-199712

main77203-21060iST215199712

main77203-21080iST215199712

main77203-21090iAT21#,ST210199911

main77203-21100iAT21#,ST210199911

77204ATUBE, FUEL TANK RETURN

main77204-20090iAT21#,ST210199601

main77204-20100iCT210,211199601

main77204-20110iAT21#,ST210199601-199604

main77204-20120iCT210199601-199604

main77204-21080iST215199712

main77204-21090iCT216199712

77204BHOSE, FUEL(FOR FUEL RETURN)

main95333-06020iAT21#,CT210,211,ST210199601

main95333-08011iCT215,ST215199601-199712

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-20110iAT21#,ST210199601

main77209-20120iST215199601

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-20150iAT21#,CT210,211,ST210199601

main77213-21010iCT216,ST215199712

main77213-32060iCT215,ST215199601-199712

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-20180iAT21#,CT21#,ST21#199601

77245CSUPPORT, FUEL TANK

main77245-20120iAT21#,CT21#,ST21#199601

77251DHOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

main95333-08020iCT210,211199601

77286DCLAMP, FUEL TUBE, NO.2

main77286-20100iAT21#,CT210,211,ST210199601

main77286-21040iCT216199712

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-20140iAT21#,CT21#,ST21#199601

77310ACAP ASSY, FUEL TANK

main77310-12150iCT21#199803

main77310-16011iAT21#,ST21#199601-199803

main77310-32011iCT21#199601-199803

main77310-48010iAT21#,ST21#199803

77316GASKET, FUEL TANK CAP

main77316-16010iAT21#,CT21#,ST21#199601

77350LID ASSY, FUEL FILLER OPENING

main77350-20270iAT21#,CT21#,ST21#199601

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12080iAT21#,CT21#,ST21#199601

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iAT21#,CT21#,ST21#199601

77391RING, FUEL INLET BOX

main77391-12020iAT21#,CT21#,ST21#199601

77391ARING, FUEL INLET BOX

main77391-20030iAT21#,CT21#,ST21#199601

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-20120iCT215,ST215199601-199712

main77601-20220iAT21#,CT210,211,ST210199601

main77601-21020iCT216,ST215199712

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-20140iAT21#,CT210,211,ST210199601

main77602-20150iCT215,ST215199601-199712

main77602-21020iCT216,ST215199712

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77606-21010iCT216,ST215199712

main77606-32031iCT215,ST215199601-199712

main77631-20090iAT21#,CT210,211,ST210199601

77652CUSHION, FUEL TANK, NO.1

main77651-20090iAT21#,CT210,211,ST210199601-200007

77681SEAT, FUEL TANK BAND, RH

main77681-32060iAT21#,CT21#,ST21#199601

77682SEAT, FUEL TANK BAND, LH

main77681-32060iAT21#,CT21#,ST21#199601

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9011906351

main90119-06351

9011908511

main90119-08511

9011908A18

main90119-08A18

9011908A23

main90119-08A23

9015950219

main90159-50219

9026903067

main90269-03067

9026906013

main90269-06013

9046022002

main90460-22002

9046046003

main90460-46003

9046712056

main90467-12056

9046713061

main90467-13061

9090119038

main90901-19038

9098011078

main90980-11078

9331914008

main93319-14008

52 parts on this diagram · 7 diagrams in section
