BATTERY CARRIER

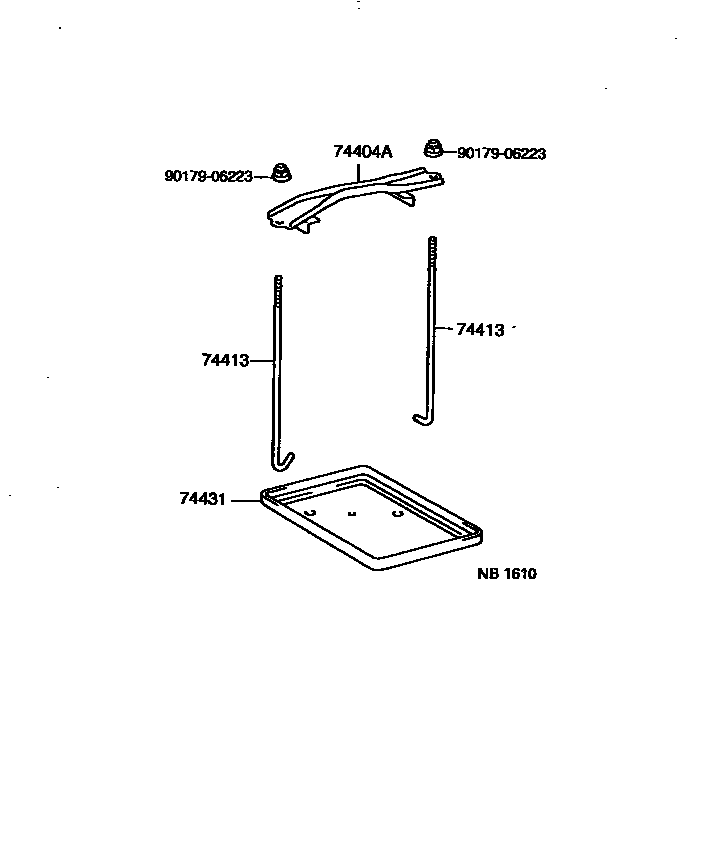

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-20490i199601

main74404-32130i199601

74413BOLT, BATTERY CLAMP

main74451-14010i199601-200008

FRONT

main74451-32070×2i199601-200008

REAR

main74451-32071×2i200008

74431TRAY, BATTERY

main74431-20080i199601-199712

main74431-20090i199601

main74431-20100i199601

9017906223

main90179-06223

4 parts on this diagram · 1 diagram in section
