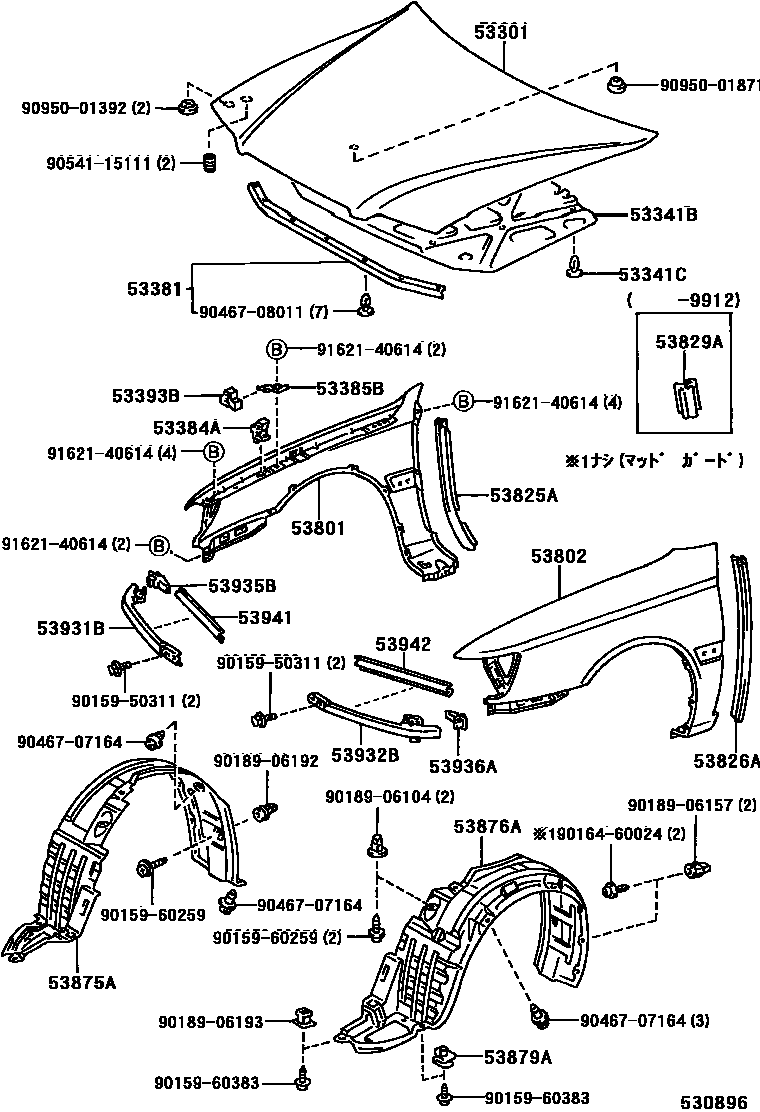

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53393BPROTECTOR, HOOD, FRONT
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53829APROTECTOR, FRONT FENDER, LOWER
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
53931BPANEL, FRONT END, RH
53932BPANEL, FRONT END, LH
53935BPROTECTOR, FRONT END PANEL
LIGHT GRAY,040 ,051 ,1C1 ,2EG ,4M7 ,586; LIGHT GRAY,040 ,1C1 ,2EG ,4M7
BLACK,3L3 ,6N0 ,6P2 ,8L3
53936APROTECTOR, FRONT END PANEL, LH
LIGHT GRAY,040 ,051 ,1C1 ,2EG ,4M7 ,586; LIGHT GRAY,040 ,1C1 ,2EG ,4M7
BLACK,3L3 ,6N0 ,6P2 ,8L3
53941EXTENSION, FRONT END PANEL, NO.1 RH
53942EXTENSION, FRONT END PANEL, NO.1 LH
9015950311
main90159-50311
9015960259
main90159-60259
9015960383
main90159-60383
9016460024
main90164-60024
9018906104
main90189-06104
9018906157
main90189-06157
9018906192
main90189-06192
9018906193
main90189-06193
9046707164
main90467-07164
9046708011
main90467-08011
9054115111
main90541-15111
9095001392
main90950-01392
9095001871
main90950-01871
9162140614
main91621-40614
35 parts on this diagram · 1 diagram in section
