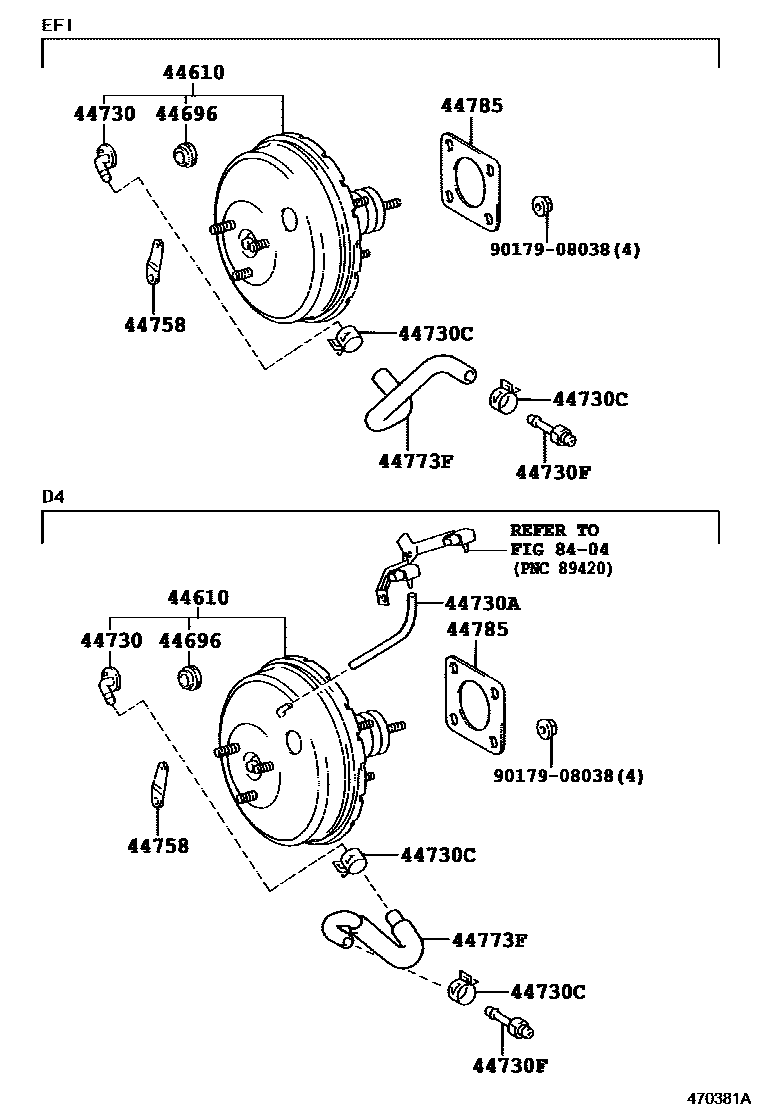

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-21030iCT216199712

main44610-21040iST215199712

main44610-21070iAT21#199708

main44610-2D750iAT21#199601-199708

main44610-2D760iCT210199601-199712

main44610-2D770iCT215199601-199712

main44610-2D780iST210..EFI199601-199712

main44610-2D810iST215199601-199712

main44610-2D850iST210..D4199612-199712

main44610-2D880iCT211199712

main44610-2D890iST210199712

44696GROMMET, CHECK VALVE

main90480-24439iST21#199712

main90480-24517iAT21#199712

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iST21#199712

main44730-28010iST215199601-199712

main44730-60050iCT21#199712

44730AHOSE, VACUUM, NO.1

main90999-92002iST210..D4199612

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×2iAT21#,CT21#,ST21#199601

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iAT21#,ST21#..EFI199601

main90406-09006iST210..D4199612

44758BRACKET, VACUUM CHECK VALVE

main44758-20230iST21#199601

main44758-20290iAT21#199601

44773FHOSE, UNION TO CHECK VALVE

main44773-20810iAT21#199601

main44773-21040iCT21#199712

main44773-2B060iCT21#199601-199712

main44773-2B070iST21#..EFI199601

main44773-2B130iST210..D4199612

44785GASKET, BRAKE BOOSTER

main44785-20020iAT21#,CT21#,ST21#199601

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9017908038

main90179-08038

11 parts on this diagram · 3 diagrams in section
