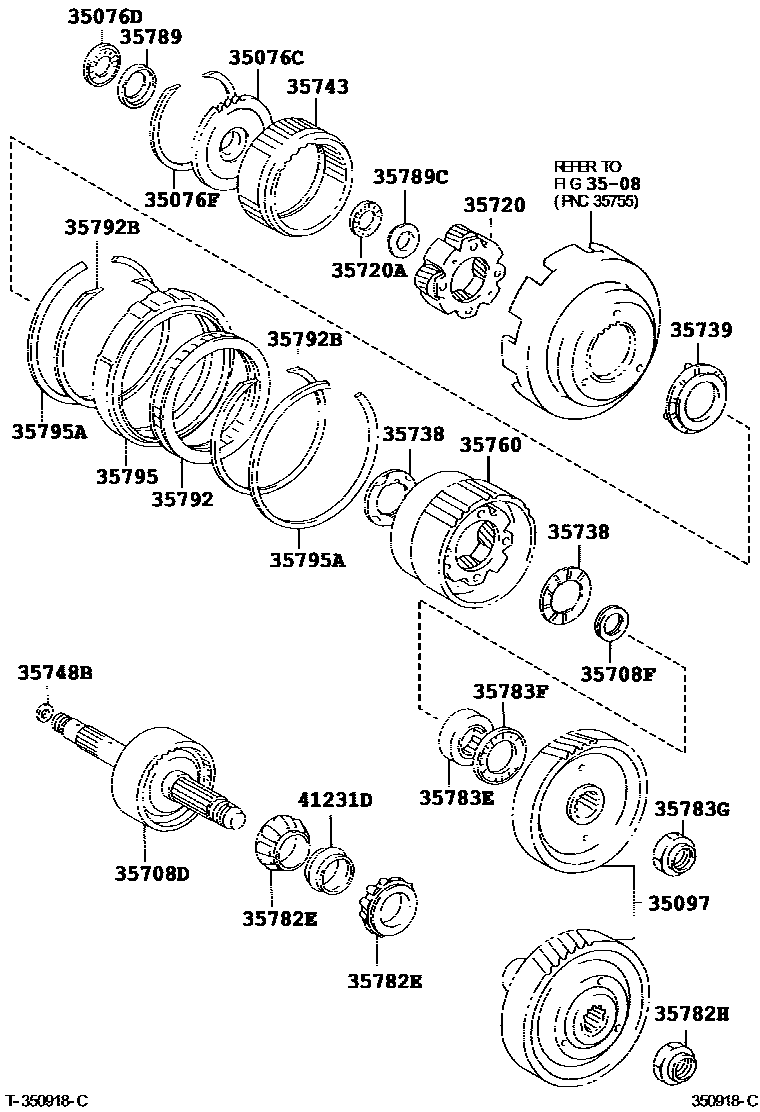

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1A245E,A247E 0003 1A241E,A241L,A241F,A243F 0005 1A540H

35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR

main35076-12020iST210..D4;AT21#..ATM199601-200112

main35076-32011iST215..ATM199601-199708

main35076-32020iCT216199712-200112

main35076-32030iCT210,ST210..ATM..(EFI,TD)199601-199708

35076DBEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANGE)

main90374-22001iCT210,211,ST21#..ATM..(EFI,TD,TDEFI)199601-199801

main90374-22005iCT211,ST215..ATM199801-200112

main90374-25007iST210..D4;AT21#..ATM199601-199909

main90374-25009iAT21#,ST210..ATM199909-200112

35076FRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE)

main90521-99014iAT21#,CT210,211,216,ST21#..ATM199601-200112

3508CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

→ Go to FIG 35-08

35097COUNTER GEAR KIT, AUTOMATIC TRANSAXLE

main35097-12050iST210..D4;AT21#..ATM199601-200112

main35097-20010iCT210,211..ATM199601-200112

main35097-20050iST215..ATM199712-200112

main35097-20060iST210..EFI199601-199712

main35097-21020iCT216199712-200112

main35097-32020iST215..ATM199601-199712

35708DSHAFT SUB-ASSY, INTERMEDIATE

main35708-12070iST210..D4;AT21#..ATM199601

35708FBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)

main90374-22003iST210..D4;AT21#..ATM199601

35720GEAR ASSY, FRONT PLANETARY

main35720-12030iAT21#..ATM199601-200112

main35720-17010iCT211,ST21#..ATM199601-200112

main35720-32010iCT210..ATM199601-199712

main35720-32020iCT216199712-200112

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-22001iCT210,211,ST21#..ATM..(EFI,TD,TDEFI)199601-199801

main90374-22004iST210..D4;AT21#..ATM199601-199909

main90374-22005iCT211,ST215..ATM199801-200112

main90374-22009iAT21#,ST210..ATM199909-200112

main90374-31001iCT216199712-200112

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-12010×2iAT21#..ATM199601-200112

main35738-21040iCT216199712-200112

main35738-21050iCT216199712-200112

main35738-32010×2iCT210,ST210..ATM..(EFI,TD)199601-199712

main35738-32030×2iST215..ATM199601-199712

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-21010iCT216199712-200112

main35739-32011iAT21#,CT210,211,ST21#..ATM199601-200112

35743GEAR, FRONT PLANETARY RING

main35743-32040iAT21#,CT210,211,ST21#..ATM199601-200112

main35743-33010iCT216199712-200112

35748BRING, INTERMEDIATE SHAFT OIL SEAL

main35748-32010iAT21#,CT210,ST210..ATM199601-199712

35760GEAR ASSY, REAR PLANETARY

main35760-12020iAT21#..ATM199601-200112

main35760-32010iCT210,ST210..ATM..(EFI,TD)199601-199712

main35760-32030iCT211,ST210..ATM199712-200112

main35760-33010iCT216199712-200112

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-40077×2iST215..ATM199601-199712

main90369-40006×2iST210..D4;AT21#..ATM199601

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-22021iST210..D4;AT21#..ATM199601

35783EBEARING, CYLINDRICAL ROLLER(FOR COUNTER DRIVEN GEAR)

main90365-37001iAT21#,CT210,ST210..ATM..(EFI,TD)199601-199712

main90365-37004iST210..D4199612-200112

main90365-37008iAT21#..ATM200009-200112

35783FBEARING, THRUST NEEDLE ROLLER(FOR COUNTER DRIVEN GEAR)

main90374-41001iAT21#,CT21#,ST21#..ATM199712-200112

35783GNUT(FOR COUNTER DRIVEN GEAR)

main90179-20013iCT210,ST210..ATM..(EFI,TD)199601-199712

main90179-22021iST210..D4;AT21#..ATM199601-200112

35789RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT)

main35789-12040iST210..D4;AT21#..ATM199601-200112

main35789-32050iCT210,211,216,ST21#..ATM..(EFI,TD,TDEFI)199601-200112

35789CRACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT)

main35789-32060iAT21#,CT210,211,216,ST21#..ATM199601-200112

35792CLUTCH, 1 WAY, NO.2

main35792-20020iCT211,216,ST210..ATM..(D4,TDEFI)199612-200104

main35792-20030iST210200104-200110

main35792-32011iAT21#,CT210,ST21#..ATM..(EFI,TD)199601-200112

main35792-44010iST210200110-200112

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-99010×2iAT21#,CT210,211,216,ST21#..ATM199601-200112

35795RACE, 1 WAY CLUTCH OUTER

main35795-12020iAT21#,ST210..ATM199908-200112

main35795-32010iCT210,211,216,ST21#..ATM199601-199908

35795ARING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)

main90521-99011×2iAT21#,CT210,211,216,ST21#..ATM199601-200112

41231DSPACER, DRIVE PINION BEARING

main41231-12050iST210..D4;AT21#..ATM199601

26 parts on this diagram · 3 diagrams in section
