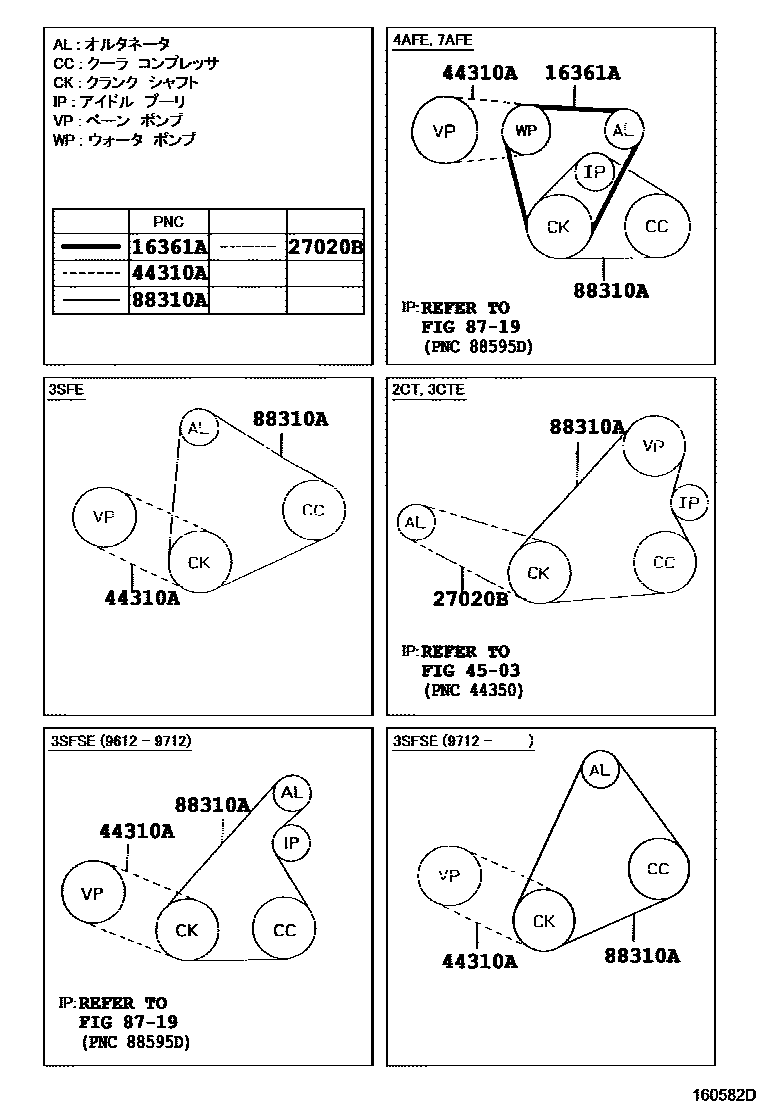

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91055i4AFE,7AFE..AT21#199712

main99365-20970i4AFE,7AFE..AT21#199601-199712

27020BBELT, V(FOR ALTERNATOR)

main90916-02372i2CT,3CTE..CT21#199601-199808

main90916-02447i3CTE..CT216199808

44310ABELT, V(FOR VANE PUMP)

main99363-80630iAT21#199601-199712

main99363-80760iST21#199601-199712

main99363-90630iAT21#199712

main99363-90760iST21#199712

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02423iAT21#199601

main90916-02424iAT21#199601-199712

main90916-02433iAT21#199712

main90916-02443iST210..D4199612-199708

main99365-21210iCT21#199601-199707

main99365-31100iST210199712

main99365-31110iST215199712

main99365-81110iST21#..EFI199601-199712

main99365-91100iST210199712

main99365-91110iST21#..EFI199601

main99365-91140iST210..D4199708-199712

main99365-91210iCT21#199601-199707

6 parts on this diagram · 1 diagram in section
