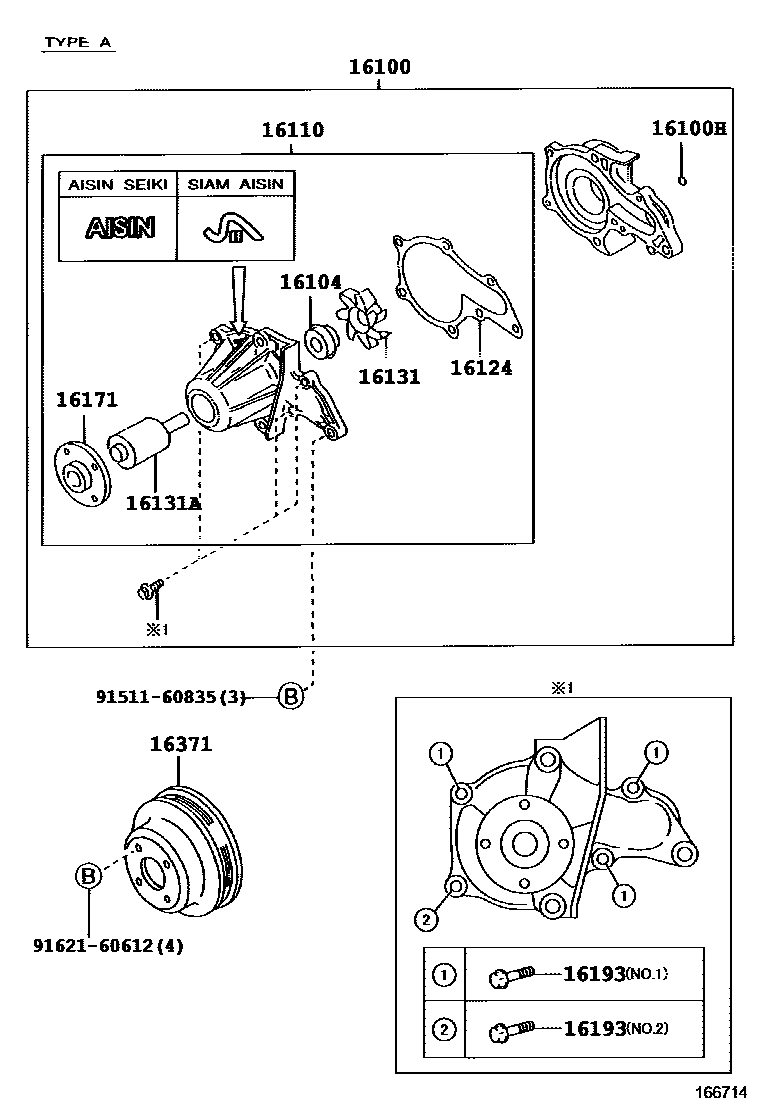

WATER PUMP

0001 1TYPE A 0002 1TYPE B 0003 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-09120i4AFE..AT210199901

main16100-19265i7AFE..AT211199601-199605

main16100-19295i4AFE..AT210199901

main16100-19305i7AFE..AT211199605

main16100-69295i2CT..CT21#199601-199704

main16100-69296i2CT,3CTE..CT21#199704-199811

main16100-69298i3CTE..CT21#199811-200012

main16100-69435i3CTE..CT21#200012

main16100-79185i3SF#..ST21#199601

16100HRING, O(FOR WATER PUMP)

main90301-37005i3SF#..ST21#199601

main96761-24035i4AFE,7AFE..AT21#199601

16104SEAL SET, WATER PUMP

main16104-46060i4AFE,7AFE..AT21#199708

main16104-54030i4AFE..AT210199605-199708

main16104-74010i4AFE,7AFE..AT21#199601-199605

16110PUMP ASSY, WATER, W/O COUPLING

main16110-19145i4AFE..AT210199601-199610

main16110-19146i4AFE..AT210199610

main16110-19175i7AFE..AT211199601-199610

main16110-19176i7AFE..AT211199610

main16110-19185i7AFE..AT211199601

main16110-19205i4AFE..AT210199601

16124GASKET, WATER PUMP COVER

main16124-15110i4AFE,7AFE..AT21#199605

main16124-16050i7AFE..AT211199601-199605

main16124-16060i4AFE,7AFE..AT21#199601

main16124-88460i3SF#..ST21#199601

16131ROTOR, WATER PUMP

main16131-16020i4AFE,7AFE..AT21#199601-199605

main16131-16090i4AFE,7AFE..AT21#199605

16131ABEARING, WATER PUMP

main90029-36846i4AFE,7AFE..AT21#199605

main90369-35071i7AFE..AT211199601-199605

16171SEAT, WATER PUMP PULLEY

main16171-10012i4AFE,7AFE..AT21#199601

main16171-15070i4AFE,7AFE..AT21#199601-199610

main16171-15071i4AFE,7AFE..AT21#199610

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011×4i4AFE..AT210; 7AFE..AT211199601-199605

main16193-15090i7AFE..AT211199601-199605

main16193-15100×4i4AFE,7AFE..AT21#199601

main90029-01500×2i3SF#..ST21#199601

16371PULLEY, FAN

main16371-02030i4AFE..AT210199901

main16371-15070i4AFE,7AFE..AT21#199601-199604

main16371-15071i4AFE,7AFE..AT21#199604-199901

9151160835

main91511-60835

9162160612

main91621-60612

12 parts on this diagram · 4 diagrams in section
