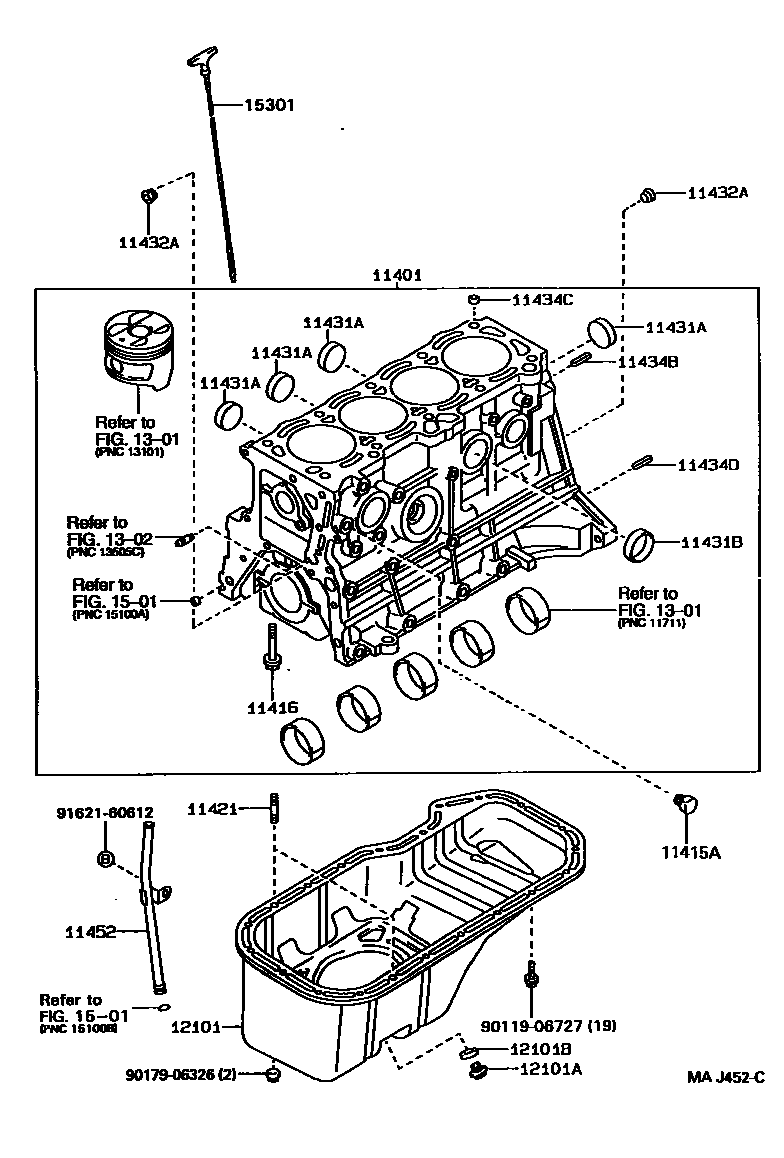

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19695i4AFE..AT210199601-199708

main11401-19725i7AFE..AT211199601

main11401-69615i2CT..CT210199601-199704

main11401-69616i2CT..CT210199704-199712

main11401-69685i2CT..CT215199601-199704

main11401-69686i2CT..CT215199704-199712

main11401-69735i3CTE..CT216199712-199812

main11401-69736i3CTE..CT216199812-199908

main11401-69737i3CTE..CT216199908-200011

main11401-69738i3CTE..CT216200011

main11401-69795i3CTE..CT211199712-199812

main11401-69796i3CTE..CT211199812-199908

main11401-69797i3CTE..CT211199908-200011

main11401-69798i3CTE..CT211200011

main11401-74932i3SFSE..ST210199612-199708

main11401-74966i3SFSE..ST210199708-199806

main11401-74967i3SFSE..ST210199806

main11401-79795i3SFE..ST215199601-199709

main11401-79805i3SFE..ST210199601-199712

main11401-80015i3SFE..ST215199709

main11401-80044i4AFE..AT210199708

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i3SFE..ST215199805-199806

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i3SF#..ST21#199601-199805

main90345-52003i4AFE,7AFE..AT21#199601

main90910-09087i3SFE..ST215199805-199806

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007×10i4AFE,7AFE..AT21#199601

main90105-10028×10i3SF#..ST21#199601

main90910-02061×10i2CT,3CTE..CT21#199601-199812

main90910-02135×10i3CTE..CT21#199812

11421BOLT, STUD(FOR OIL PAN)

main90116-06022×4i4AFE..AT210; 7AFE..AT211199601

main92122-60610×2i3SFE..ST21#199709

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500×4i2CT..CT21#199601-199703

main96411-63500×4i2CT,3CTE..CT21#199703

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000×4i2CT..CT21#199601-199703

main96411-44000i3SF#..ST21#; 4AFE,7AFE..AT21#199601

main96411-63000×4i2CT,3CTE..CT21#199703

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53006×2i4AFE,7AFE..AT21#199608

main90344-53008×2i4AFE,7AFE..AT21#199601-199608

main90345-52003i2CT,3CTE..CT21#199601

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i3SF#..ST21#; 4AFE,7AFE..AT21#199601

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-13017×2i4AFE,7AFE..AT21#199601

main90253-14002×2i2CT..CT21#199601-199708

main90253-14004×2i2CT,3CTE..CT21#199708

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003×2i3SF#..ST210; 3SFE..ST215; 4AFE,7AFE..AT21#199601

main90250-06068×2i2CT,3CTE..CT21#199601

11452GUIDE, OIL LEVEL GAGE

main11452-15030i4AFE,7AFE..AT21#199601

main11452-64030i2CT,3CTE..CT21#199601

main11452-74031i3SFE..ST21#199601

main11452-74090i3SFSE..ST210199612-199808

main11452-74100i3SFSE..ST210199808

12101PAN SUB-ASSY, OIL

main12101-16100i4AFE..AT210199601

main12101-64101i2CT,3CTE..CT215,216199601

main12101-64140i2CT,3CTE..CT210,211199601-199801

main12101-64141i3CTE..CT211199801

main12101-74050i3SFSE..ST210199805-199806

main12101-74150i3SFE..ST215199805

main12101-74170i3SFSE..ST210199806

main12111-16120i7AFE..AT211199601

12101APLUG(FOR OIL PAN DRAIN)

main90341-12026i2CT,3CTE..CT21#; 3SF#..ST21#; 4AFE,7AFE..AT21#199601

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2CT,3CTE..CT21#; 3SF#..ST21#; 4AFE,7AFE..AT21#199601

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-15051i4AFE..AT210199601

main15301-16091i7AFE..AT211199601

main15301-64090i2CT,3CTE..CT21#199601

main15301-74010i3SFE..ST21#199601

main15301-74140i3SFSE..ST210199612

9011906727

main90119-06727

9017906326

main90179-06326

9162160612

main91621-60612

22 parts on this diagram · 7 diagrams in section
