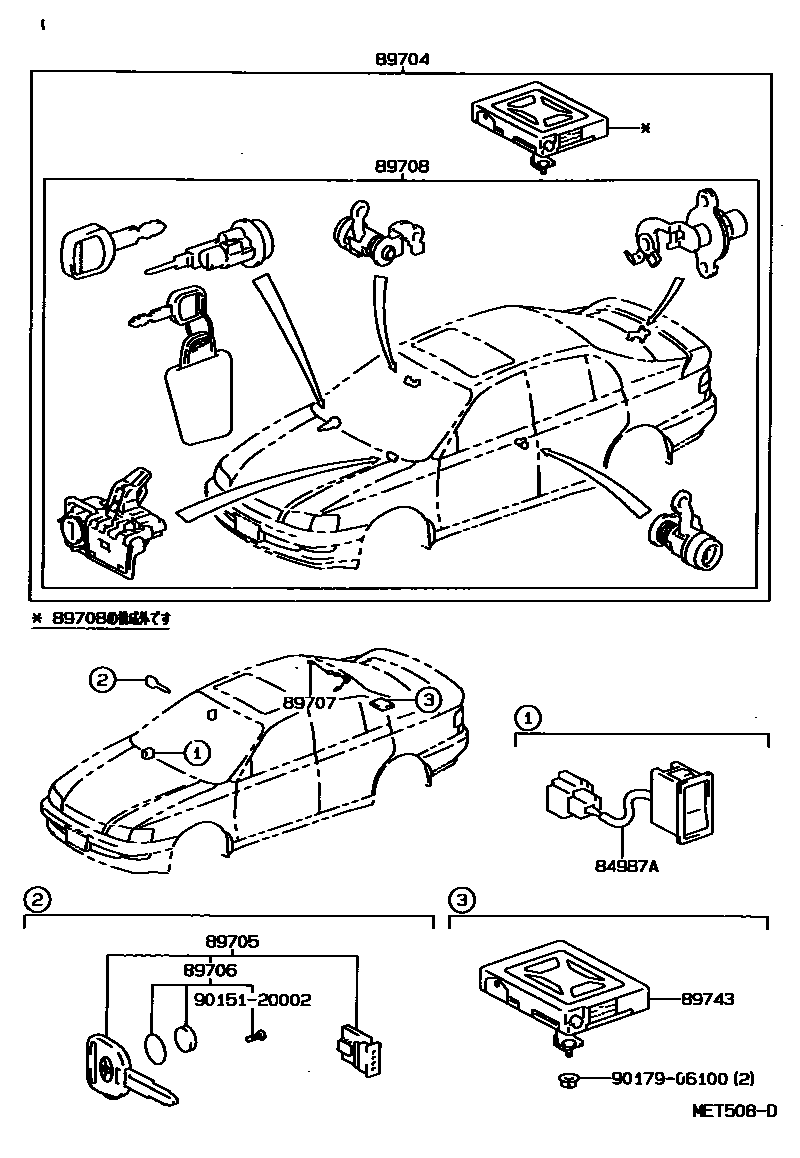

WIRELESS DOOR LOCK

0001 1 0003 1

84987ASWITCH, KEYLESS ENTRY CANCEL

main84987-20020iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199402

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-20100iAT190,CT19#,ST19#..EXG,EXS199202-199402

main89704-20110iST190,191..LB199202-199503

main89704-20130iCT195..EXS;AT190,CT190,ST19#..EXG,EXS,SELS199409-199503

89705TRANSMITTER, DOOR CONTROL

main89705-20060iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199402

main89742-12060iAT190,CT190,ST190,195..SELS199408

89706BATTERY SET, TRANSMITTER

main89706-50010iAT190,CT190,ST190,195..SELS199408

89707CORD SUB-ASSY, WIRELESS DOOR LOCK

main89707-20030iST190,191..LB199202-199601

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-20020iST190,191..LB199503-199601

main89708-20030iCT195..EXS;AT190,CT190,ST19#..EXG,EXS,SELS199503-199601

89743RECEIVER, DOOR CONTROL

main89743-20070iAT190,CT19#,ST19#..EXG,EXS199202-199402

main89743-20080iST190,191..LB199202-199601

9015120002

main90151-20002

9017906100

main90179-06100

9 parts on this diagram · 2 diagrams in section
