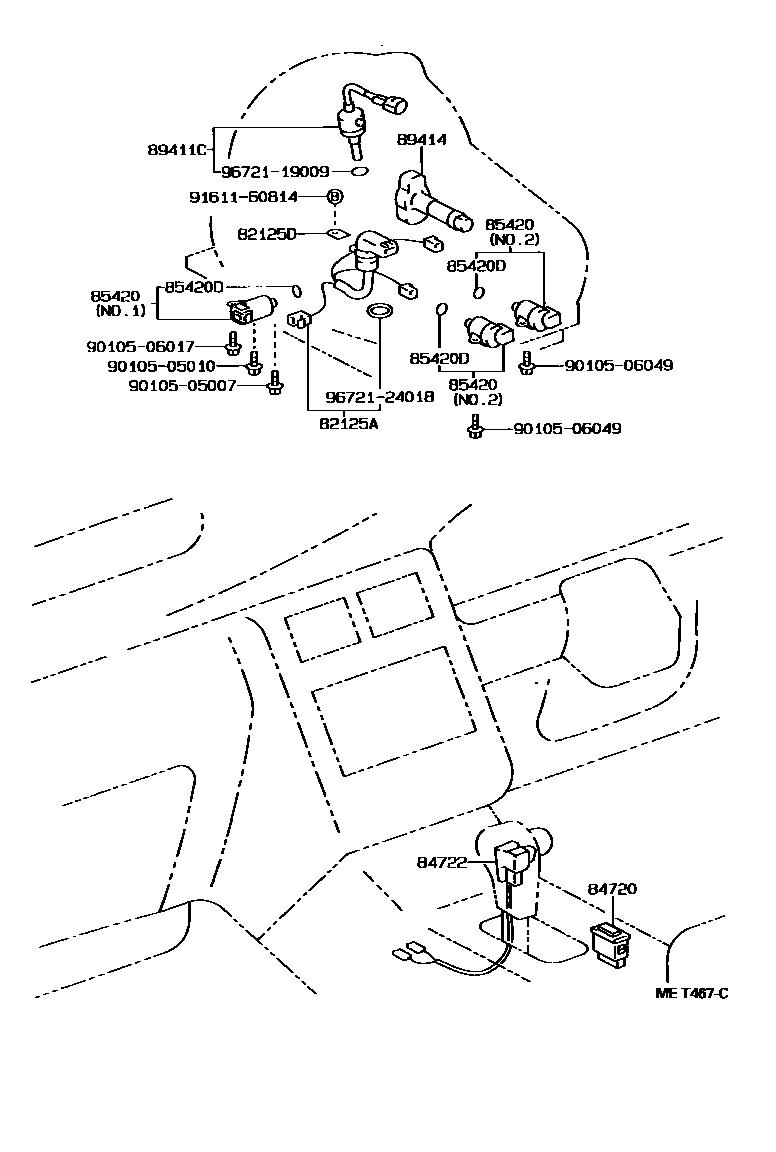

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

82125AWIRE, TRANSMISSION

main82125-12350iAT190..ATM199305-199601

main82125-20160iAT190,ST190,191..ATM199202-199305

main82125-20170iCT190..ATM199202-199512

main82125-20220iST190,191..ATM199402-199601

main82125-20240iCT190..ATM199512-199601

main82125-32050iST195..ATM199202-199401

82125DPLATE, TRANSMISSION WIRE LOCK

main33485-30020iAT190,ST190,191..ATM199202-199305

84720SWITCH ASSY, PATTERN SELECT

main84720-20080iAT190,ST19#..ATM199202-199601

84722SWITCH, TRANSMISSION CONTROL

main84722-20110-C0iAT190,CT190,ST19#..ATM..(EXG,EXS,GX,SELS,TYPE1,TYPE2)199202-199305

BLACK,TRIM2#

main84722-20110-E0iAT190,CT190,ST19#..SED..ATM199202-199305

ANTELOPE,TRIM4#

main84722-20150-C0iAT190,CT190,ST19#..ATM..(EXG,EXS,GX,SELS,TYPE1,TYPE2); CT190,ST190..ATM..KYO199401-199402

BLACK,TRIM2#; BLACK,TRIM2#,4#

main84722-20150-E0iAT190,CT190,ST19#..SED..ATM199305-199402

ANTELOPE,TRIM4#

85420SOLENOID ASSY, TRANSMISSION

main85420-10011iCT190..ATM199205-199512

NO.1

main85420-12062iST190,191..ATM199305-199402

main85420-12100iAT190..ATM199402-199601

N0.1

main85420-12120iAT190..ATM199305-199601

main85420-12140iAT190..ATM199305-199601

main85420-20140iST190,191..ATM199402-199601

main85420-20180iCT190..ATM199512-199601

NO.1

main85420-22080×2iAT190,ST190,191..ATM199202-199305

main85420-30200×2iST190,191..ATM199402-199601

main85420-32102iST195..ATM199402-199601

main85420-32120iST195..ATM199402-199601

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×2iST190,191..ATM199202-199205

89411CSENSOR, SPEED

main89411-20050iST190,191..ATM199302-199402

89414ROTOR, SENSOR

main89414-12010iST190,191..ATM199302-199402

9010505007

main90105-05007

9010505010

main90105-05010

9010506017

main90105-06017

9010506049

main90105-06049

9161160814

main91611-60814

9672119009

main96721-19009

9672124018

main96721-24018

15 parts on this diagram · 3 diagrams in section
