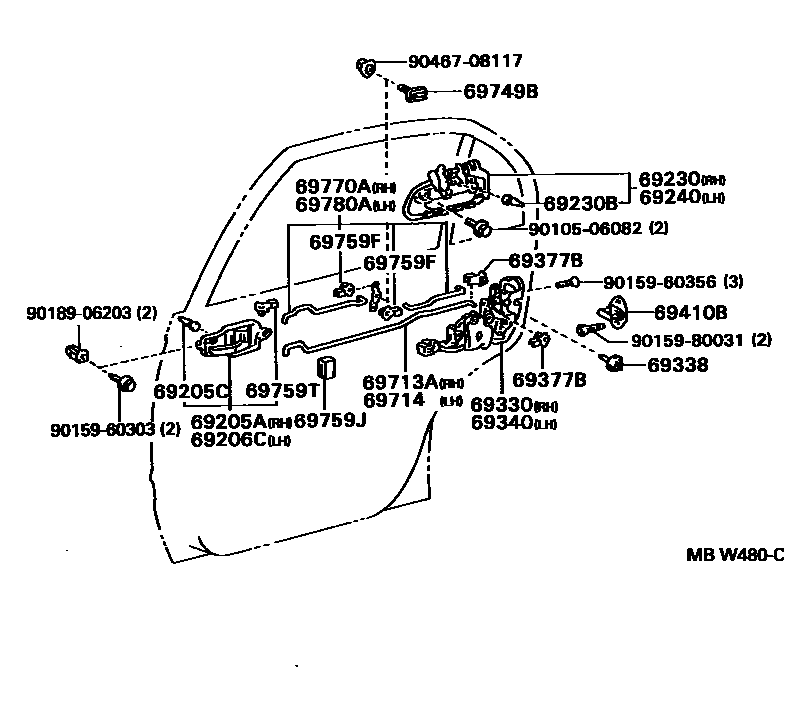

REAR DOOR LOCK & HANDLE

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-20110-B0iAT190,CT19#,ST19#199402-199601

SHADOW GRAY,TRIM1#

main69205-20110-C0iAT190,CT19#,ST19#199202-199402

BLACK,TRIM2#

main69205-20110-E0iAT190,CT19#,ST19#..SED199202-199601

ANTELOPE,TRIM4#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014×2iAT190,CT19#,ST19#199202-199601

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-20110-B0iAT190,CT19#,ST19#199402-199601

SHADOW GRAY,TRIM1#

main69206-20110-C0iAT190,CT19#,ST19#199305-199402

BLACK,TRIM2#

main69206-20110-E0iAT190,CT19#,ST19#..SED199202-199601

ANTELOPE,TRIM4#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-20210iAT190,CT190,ST190,195..GX,KYO199202-199601

main69230-20220-A0iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199202-199601

SUPER WHITE 2,040

main69230-20220-A1iAT190,CT190,ST19#..EXG,EXS,SELS199202-199203

WARM GRAY PEARL MICA,046

main69230-20220-B0iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199202-199601

DARK BLUEISH GRAY ME,183

main69230-20220-B1iAT190,CT19#,ST19#..EXG,EXS,SELS199402-199601

LT.GRAIGE ME,1A2

main69230-20220-C0iST19#..EXS199309-199312

main69230-20220-D1iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199202-199402

DARK WINE MICA M,3K1

main69230-20220-D5iAT190,CT19#,ST19#..EXG,EXS,SELS199402-199601

MAGENTA MC,3L3

main69230-20220-E0iAT190,CT19#,ST19#..EXG,EXS,SELS199202-199402

DK.GRAYISH BROWN ME,4H7

main69230-20220-E1iAT190,CT19#,ST19#..EXG,EXS,SELS199202-199402

LIGHT BEIGE ME,4M3

main69230-20220-G0iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199202-199601

DK.GRAYISH OLIVE ME,6M7

main69230-20220-H0iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199202-199601

DARK TORQUOISE MICA,742

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04018×4iAT190,CT19#,ST19#199202-199601

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-20210iAT190,CT190,ST190,195..GX,KYO199202-199601

main69240-20220-A0iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199202-199601

SUPER WHITE 2,040

main69240-20220-A1iCT190..ATM..(EXS,SELS);AT190,ST19#..EXG,EXS,SELS199203-199402

WARM GRAY PEARL MICA,046

main69240-20220-B0iAT190,CT190,ST190..GX199508-199601

main69240-20220-B1iAT190,CT19#,ST19#..EXG,EXS,SELS199402-199601

LT.GRAIGE ME,1A2

main69240-20220-C0iST19#..EXS199305-199307

main69240-20220-D1iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199202-199402

DARK WINE MICA M,3K1

main69240-20220-D5iAT190,CT19#,ST19#..EXG,EXS,SELS199402-199601

MAGENTA MC,3L3

main69240-20220-E0iAT190,CT19#,ST19#..EXG,EXS,SELS199202-199402

DK.GRAYISH BROWN ME,4H7

main69240-20220-E1iAT190,CT19#,ST19#..EXG,EXS,SELS199202-199402

LIGHT BEIGE ME,4M3

main69240-20220-G0iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199202-199601

DK.GRAYISH OLIVE ME,6M7

main69240-20220-H0iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199202-199601

DARK TORQUOISE MICA,742

69330LOCK ASSY, REAR DOOR, RH

main69305-20020iAT190,CT190,ST190,195..GX,KYO199202-199601

main69305-20030iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199601

main69305-20040iAT190,CT190,ST190..GX199508-199601

69338KNOB, CHILD PROTECTOR LOCK LEVER

main69338-32010×2iAT190,CT19#,ST19#199202-199601

69340LOCK ASSY, REAR DOOR, LH

main69306-20020iAT190,CT190,ST190,195..GX,KYO199202-199601

main69306-20030iAT190,CT190,ST190,195..SELS199412-199601

main69306-20040iAT190,CT19#,ST190,195..SELS199202-199601

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69759-24050×2iAT190,CT19#,ST19#199202-199601

main69759-24060×2iAT190,CT19#,ST19#199202-199601

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070×2iAT190,CT19#,ST19#199202-199209

main69410-87001×2iAT190,CT19#,ST19#199209-199601

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-20140iAT190,CT19#,ST19#199202-199601

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-20140iAT190,CT19#,ST19#199202-199601

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32030×2iAT190,CT19#,ST19#199202-199601

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20380×2iAT190,CT19#,ST19#199202-199601

main69759-24030×2iAT190,CT19#,ST19#199202-199601

69759JSILENCER, DOOR LOCK LINK

main69759-20390×2iAT190,CT19#,ST19#199202-199601

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050×2iAT190,CT19#,ST19#199202-199601

main69759-24070×2iAT190,CT19#,ST19#199202-199601

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-20090iAT190,CT19#,ST19#199202-199601

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-20090iAT190,CT19#,ST19#199202-199601

9010506082

main90105-06082

9015960303

main90159-60303

9015960356

main90159-60356

9015980031

main90159-80031

9018906203

main90189-06203

9046708117

main90467-08117

25 parts on this diagram · 1 diagram in section
