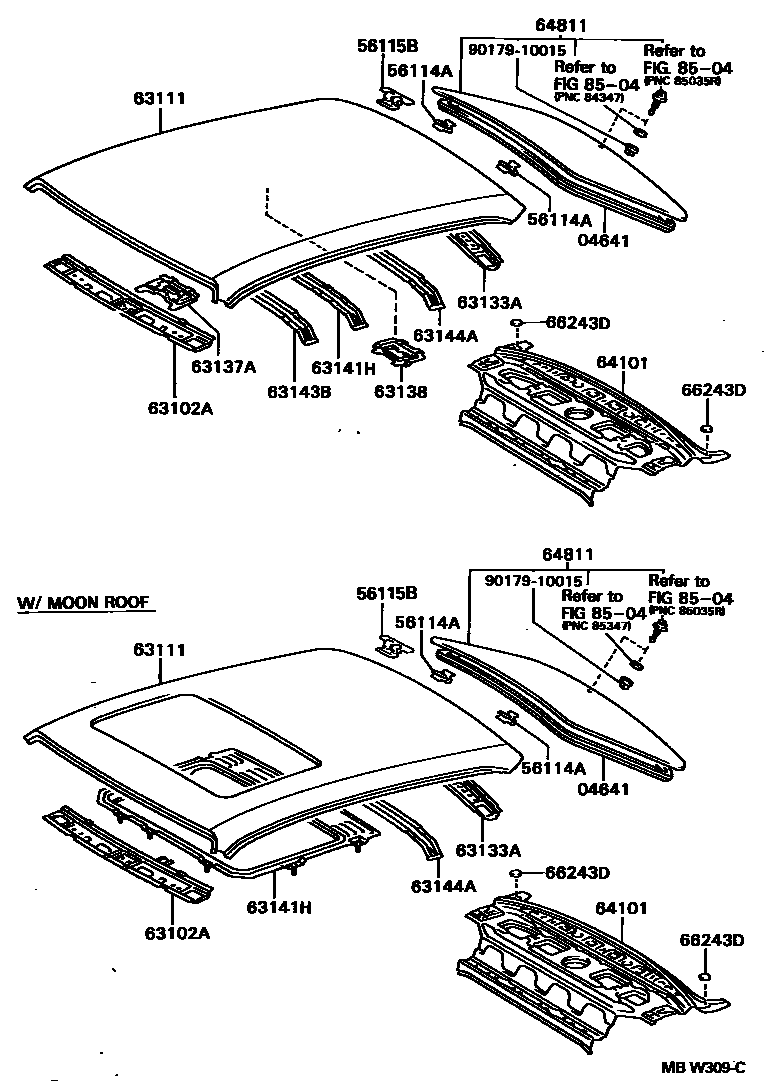

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

04641DAM KIT, BACK WINDOW GLASS

main04562-12010iAT190,CT19#,ST19#..SED199202-199601

56114ARETAINER, BACK WINDOW GLASS

main56114-20010×2iAT190,CT19#,ST19#..SED199202-199302

main56114-20040×2iAT190,CT19#,ST19#..SED199304-199601

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-20060×2iAT190,CT19#,ST19#..SED199305-199601

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20230iAT190,CT19#,ST19#199202-199601

main63102-20240iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199601

63111PANEL, ROOF

main63111-20380iAT190,CT19#,ST19#..EXG,EXS199202-199601

main63111-20460iAT190,CT19#,ST19#..SED199202-199601

main63111-20470iST190,191..LB199202-199601

main63111-20480iST190,191..LB199202-199601

63133AFRAME, BACK WINDOW, UPPER

main63133-20200iAT190,CT19#,ST19#..SED199202-199601

63137ABRACKET, DOME LAMP, NO.1

main63137-20090iCT19#,ST19#..EXG,EXS,KYO,TYPE1,TYPE2199202-199601

63138BRACKET, DOME LAMP, NO.2

main63138-20030iCT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199402

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63103-20140iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199601

main63141-20150iAT190,CT19#,ST19#199202-199601

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-20100iAT190,CT19#,ST19#199202-199601

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-20040iAT190,CT19#,ST19#199202-199601

64101PANEL SUB-ASSY, UPPER BACK

main64101-20570iAT190,CT19#,ST190,195..GX,KYO,SELS199202-199601

main64101-20660iAT190,CT19#,ST19#..EXG,EXS199202-199601

main64101-20670iST190,191..EXG199202-199601

64811GLASS, BACK WINDOW

main64811-2B420iAT190,CT19#,ST19#..EXS; ST190,191..EXG199202-199302

main64811-2B421iAT190,CT19#,ST19#..EXS; ST190,191..EXG199302-199601

main64811-2B430iAT190,CT19#,ST19#..EXS199202-199302

main64811-2B431iAT190,CT19#,ST19#..EXS199402-199601

main64811-2B440iAT190,CT19#,ST19#..EXS; ST190,191..EXG199202-199302

main64811-2B450iAT190,CT19#,ST19#..EXS; ST190,191..EXG199202-199302

main64811-2B480iAT190,CT190,ST190,195..GX,KYO199202-199302

main64811-2B481iAT190,CT19#,ST190,195..SELS199302-199402

main64811-2B500iAT190,CT19#,ST19#..EXS; ST190,191..EXG199202-199302

main64811-2B501iAT190,CT19#,ST19#..EXS; ST190,191..EXG199402-199601

main64811-2B510iAT190,CT19#,ST19#..EXS199202-199302

main64811-2B511iAT190,CT19#,ST19#..EXS199302-199601

main64811-2B520iAT190,CT19#,ST19#..EXS199202-199302

main64811-2B530iAT190,CT19#,ST19#..EXS199202-199302

main64811-2B660iAT190,CT19#,ST190,195..SELS199202-199302

main64811-2B661iAT190,CT19#,ST190,195..SELS199302-199601

main64811-2B670iAT190,CT19#,ST190,195..SELS199202-199302

main64811-2B720iCT190,ST190..KYO199211-199309

main64811-2B721iAT190,CT19#,ST190,195..SELS199402-199601

main64811-2B771iAT190,CT190,ST190,195..SELS199408-199507

main64811-2B781iAT190,CT19#,ST19#..EXS; ST190,191..EXG199302-199402

main64811-2B791iAT190,CT19#,ST19#..EXS199302-199402

main64811-2B801iAT190,CT19#,ST19#..EXS; ST190,191..EXG199302-199402

main64811-2D140iAT190,CT19#,ST190,195..SELS199402-199601

66243DPROTECTOR, REAR BODY, NO.1

main66243-20010×2iAT190,CT19#,ST19#..SED199202-199304

8504REAR WASHER

→ Go to FIG 85-04

9017910015

main90179-10015

16 parts on this diagram · 3 diagrams in section
