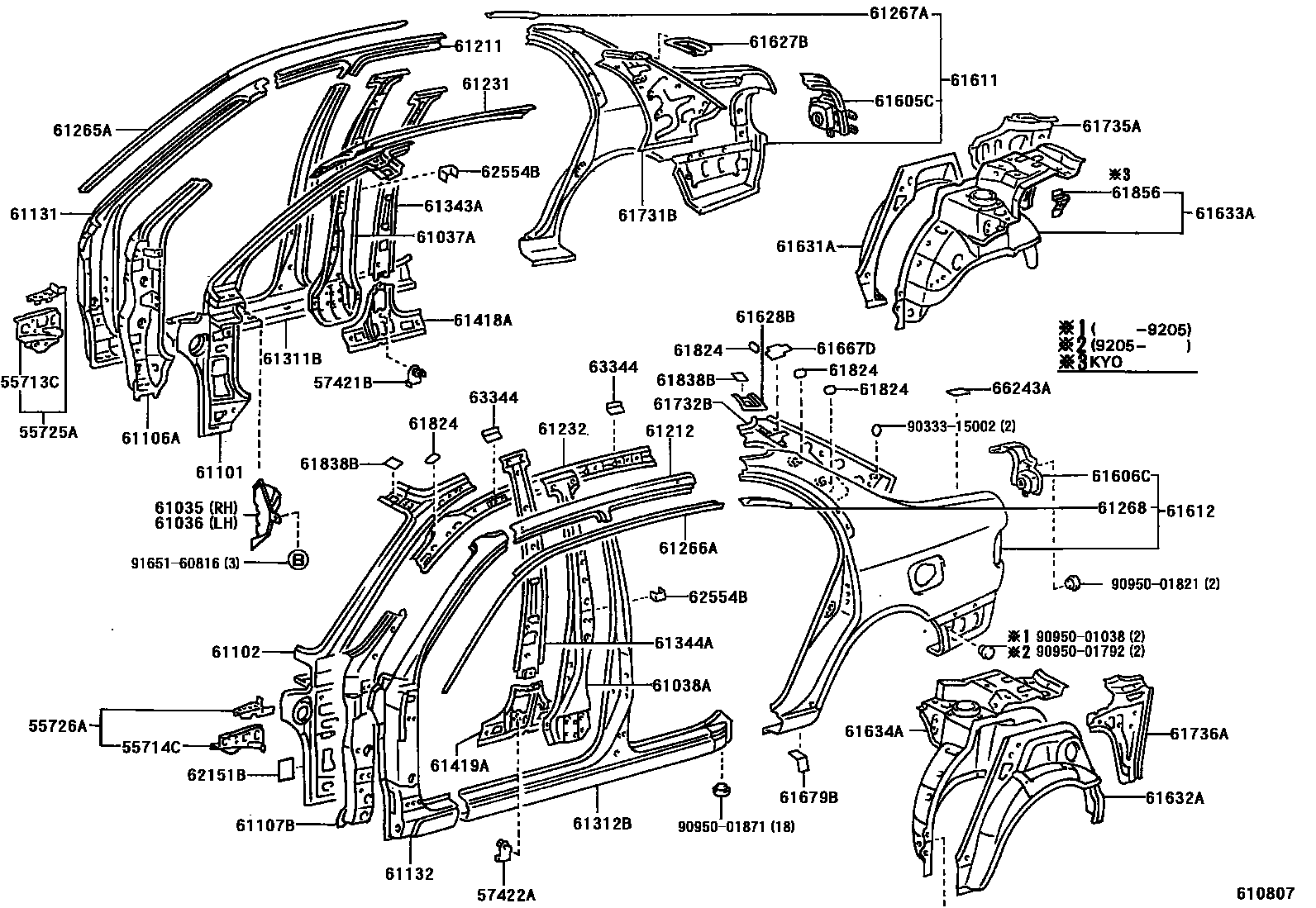

SIDE MEMBER

0001 1 0002 1

55713CPANEL, COWL TOP SIDE, RH

main55713-20130iAT190,CT19#,ST19#199202-199601

55714CPANEL, COWL TOP SIDE, LH

main55714-20140iAT190,CT19#,ST19#199202-199601

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-20900iAT190,CT19#,ST19#199202-199601

55726AREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55726-20900iAT190,CT19#,ST19#199202-199601

57421BPLATE, FLOOR SIDE RAIL, RH

main57421-20040iAT190,CT19#,ST19#199202-199601

57422APLATE, FLOOR SIDE RAIL, LH

main57421-20040iAT190,CT19#,ST19#199202-199601

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main55774-20090iAT190,CT19#,ST19#199202-199601

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main55775-20070iAT190,CT19#,ST19#199202-199601

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-20010iAT190,CT19#,ST19#199202-199601

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-20010iAT190,CT19#,ST19#199202-199601

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-20901iAT190,CT19#,ST19#199202-199211

main61101-21900iAT190,CT19#,ST19#199211-199601

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-20901iAT190,CT19#,ST19#199202-199211

main61102-21900iAT190,CT19#,ST19#199211-199601

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-20150iAT190,CT19#,ST19#199202-199410

main61106-20240iAT190,CT19#,ST19#199410-199601

61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH

main61107-20150iAT190,CT19#,ST19#199202-199410

main61107-20230iAT190,CT19#,ST19#199410-199601

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-20410iAT190,CT19#,ST190,195..GX,KYO,SELS199202-199601

main61131-20420iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199601

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-20370iAT190,CT19#,ST19#199202-199601

61211RAIL, ROOF SIDE, OUTER RH

main61211-20240iAT190,CT19#,ST19#199202-199601

61212RAIL, ROOF SIDE, OUTER LH

main61212-20240iAT190,CT19#,ST19#199202-199601

61231RAIL, ROOF SIDE, INNER RH

main61231-20350iAT190,CT19#,ST19#199202-199402

main61231-20410iAT190,CT19#,ST19#199402-199407

main61231-20430iAT190,CT19#,ST19#199407-199601

61232RAIL, ROOF SIDE, INNER LH

main61232-20340iAT190,CT19#,ST19#199202-199402

main61232-20400iAT190,CT19#,ST19#199402-199407

main61232-20420iAT190,CT19#,ST19#199407-199601

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-20070iAT190,CT19#,ST19#199202-199601

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-20070iAT190,CT19#,ST19#199202-199601

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-20060iAT190,CT19#,ST19#..SED199202-199601

main61267-20070iST190,191..LB199202-199601

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-20060iAT190,CT19#,ST19#..SED199202-199601

main61268-20070iST190,191..LB199202-199601

61311BPILLAR, CENTER BODY, OUTER RH

main61311-20240iAT190,CT19#,ST19#199202-199601

61312BPILLAR, CENTER BODY, OUTER LH

main61312-20310iAT190,CT19#,ST19#199202-199601

61343APILLAR, CENTER BODY, INNER RH

main61343-20110iAT190,CT19#,ST19#199202-199409

main61343-20111iAT190,CT19#,ST19#199409-199601

61344APILLAR, CENTER BODY, INNER LH

main61344-20110iAT190,CT19#,ST19#199202-199409

main61344-20111iAT190,CT19#,ST19#199409-199601

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-20130iAT190,CT19#,ST19#199202-199601

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-20110iAT190,CT19#,ST19#199202-199601

61605CPANEL SUB-ASSY, QUATER, REAR INNER RH

main61605-20280iAT190,CT19#,ST19#..SED199202-199601

61606CPANEL SUB-ASSY, QUATER, REAR INNER LH

main61606-20250iAT190,CT19#,ST19#..SED199202-199601

61611PANEL, QUARTER, RH

main61601-2B904iAT190,CT19#,ST19#..SED199202-199601

main61601-2B905iST190,191..EXG199202-199601

main61601-2B906iST190,191..LB199202-199601

main61601-2B907iST190,191..LB199202-199601

61612PANEL, QUARTER, LH

main61602-2D900iAT190,CT19#,ST19#..SED199202-199601

main61602-2D901iST19#..EXS199309-199312

main61602-2D904iST190,191..LB199202-199601

main61602-2D905iST190,191..LB199202-199601

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-20100iAT190,CT19#,ST19#..SED199202-199601

main61627-20110iST190,191..LB199202-199601

61628BEXTENSION, QUARTER PANEL, UPPER REAR LH

main61628-20120iAT190,CT19#,ST19#..SED199202-199601

main61628-20130iST190,191..LB199202-199601

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-20260iAT190,CT19#,ST19#199202-199601

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-20240iAT190,CT19#,ST19#199202-199601

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-2B900iAT190,CT19#,ST190,195..GX,SELS199402-199601

main61603-2B901iAT190,CT19#,ST19#..EXG,EXS199202-199402

main61603-2B902iST190,191..LB199202-199601

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-2B900iAT190,CT19#,ST190,195..GX,KYO,SELS199202-199601

main61604-2B901iAT190,CT19#,ST19#..EXG,EXS199202-199601

main61604-2B902iST190,191..LB199202-199601

61667DSEAL, QUARTER PANEL

main61667-20060iAT190,CT190,ST19#..SED199202-199204

main61667-20061iAT190,CT19#,ST19#..SED199204-199601

main61668-20040iAT190,CT190,ST19#..SED199202-199204

main61668-20041iAT190,CT19#,ST19#..SED199204-199601

main61668-20050iST190,191..LB199202-199601

61679BSEAL, QUARTER WHEEL HOUSE

main62552-30070×2iAT190,CT19#,ST19#199202-199402

61731BPANEL, ROOF SIDE, INNER RH

main61731-20270iAT190,CT19#,ST19#..SED199202-199601

main61731-20280iST190,191..LB199202-199601

61732BPANEL, ROOF SIDE, INNER LH

main61732-20270iAT190,CT19#,ST19#..SED199202-199601

main61732-20280iST190,191..LB199202-199601

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-20180iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199202-199601

main61735-20190iST190,191..LB199202-199601

main61735-20210iCT190,ST190..KYO199211-199601

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-20170iAT190,CT19#,ST19#..SED199202-199601

main61736-20180iST190,191..LB199202-199601

61824PLATE, NOISE CONTROL, NO.1

main61824-20120×4iAT190,CT19#,ST19#..SED; ST190,191..LB199202-199302

61838BPLATE, NOISE CONTROL, NO.5

main61838-20050×2iAT190,CT19#,ST19#..SED; ST190,191..LB199202-199601

61856BRACKET, REAR WASHER TANK, LOWER

main61856-20010iCT190,ST190..KYO199211-199601

62151BPAD, COWL SIDE SILENCER

main62939-32020×2iAT190,CT19#,ST19#199202-199601

62554BPAD, PILLAR, NO.4

main62554-33010iAT190,CT19#,ST19#199205-199210

63344PAD, ROOF SILENCER, NO.4

main63344-20100iAT190,CT19#,ST19#199202-199402

66243APROTECTOR, REAR BODY, NO.1

main66244-20020×2iAT190,CT19#,ST19#..SED199202-199601

9033315002

main90333-15002

9095001038

main90950-01038

9095001792

main90950-01792

9095001821

main90950-01821

9095001871

main90950-01871

9165160816

main91651-60816

59 parts on this diagram · 2 diagrams in section
