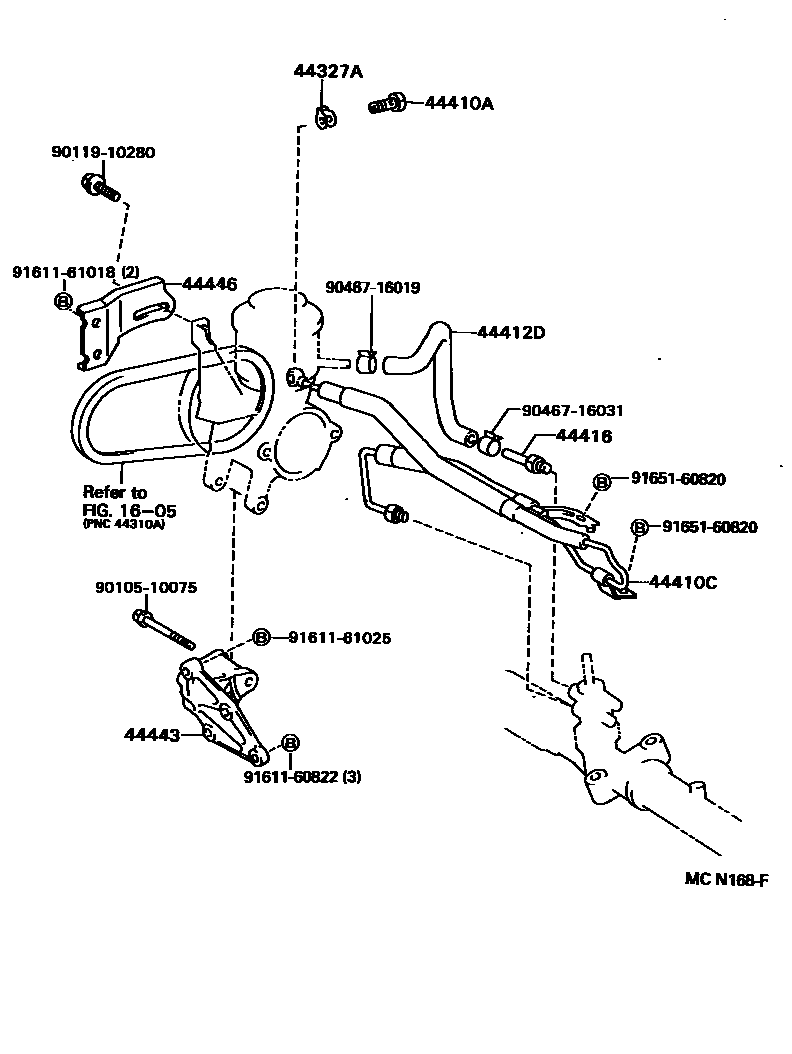

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAT190,CT190,ST191,195199202-199204

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iAT190,CT19#,ST19#199202-199601

44410CTUBE ASSY, PRESSURE FEED, NO.1

main44410-20680iAT190199202-199402

main44410-20700iST191;ST190..KYO199202-199601

main44410-20730iST195199202-199501

main44410-20750iCT190..EXS,GX,SELS199202-199601

main44410-20790iST190..EXG,EXS,GX,SELS,TYPE1199202-199402

main44410-20830iCT190..KYO199211-199601

main44410-20840iCT195199208-199601

main44410-2B050iAT190199402-199601

main44410-2B080iST190..EXG,EXS,GX,SELS,TYPE1199402-199601

main44410-2B140iST195199501-199601

44412DHOSE, RETURN, NO.1

main44412-20190iAT190199202-199601

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20220iAT190,CT19#,ST19#199202-199601

44443BRACKET, PUMP

main44443-12050iAT190199202-199601

main44443-20050iST191,195199202-199601

main44443-32070iST190199202-199601

44446STRUT, ADJUSTING

main44446-12060iAT190199202-199601

9010510075

main90105-10075

9011910280

main90119-10280

9046716019

main90467-16019

9046716031

main90467-16031

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9165160820

main91651-60820

16 parts on this diagram · 6 diagrams in section
