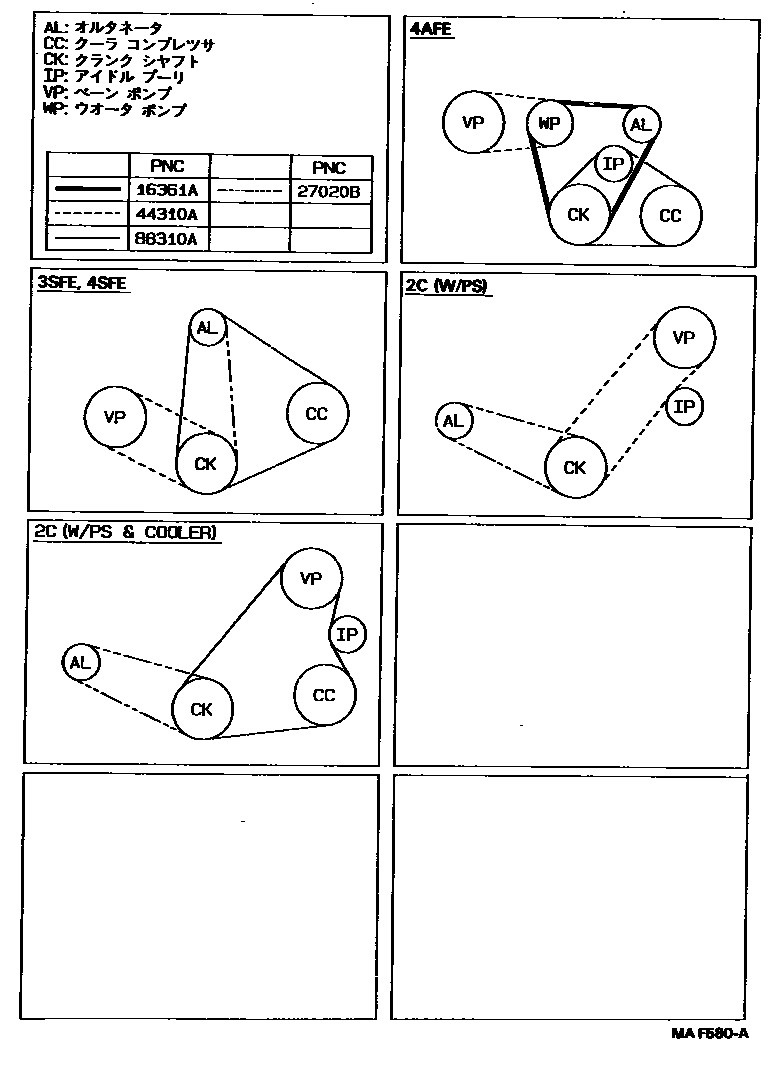

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main99365-20970i4AFE..AT190199202-199601

27020BBELT, V(FOR ALTERNATOR)

main90916-02293i3SFE,4SFE..ST190,195..ATM..(GX,SELS)199202-199206

main90916-02295i3SFE,4SFE..ST190,195..MTM..(GX,SELS)199202-199206

main90916-02301i2C..CT190..EXS,GX,SELS199202-199305

main90916-02355i4SFE..ST190..MTM..KYO;3SFE,4SFE..ST190,195..GX,SELS199303-199402

main90916-02356i4SFE..ST190..MTM..KYO;3SFE,4SFE..ST190,195..GX,SELS199303-199402

main90916-02357i3SFE,4SFE..ST190,195..ATM..(GX,KYO,SELS)199206-199303

main90916-02358i3SFE,4SFE..ST190,195..ATM..(GX,KYO,SELS)199206-199303

main90916-02372i2C..CT19#199305-199601

44310ABELT, V(FOR VANE PUMP)

main90916-02256iCT19#..GX,KYO,SELS199202-199408

main99363-70760iST19#199202-199406

main99363-80630iAT190199202-199601

main99363-80760iST19#199406-199601

main99365-81110iCT19#..GX,KYO,SELS199408-199601

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02344iST190,195..GX; ST190,195..SELS199202-199208

main90916-02345iST19#199202-199208

main99364-20870iAT190199202-199601

main99365-21210iCT19#199202-199601

4 parts on this diagram · 1 diagram in section
