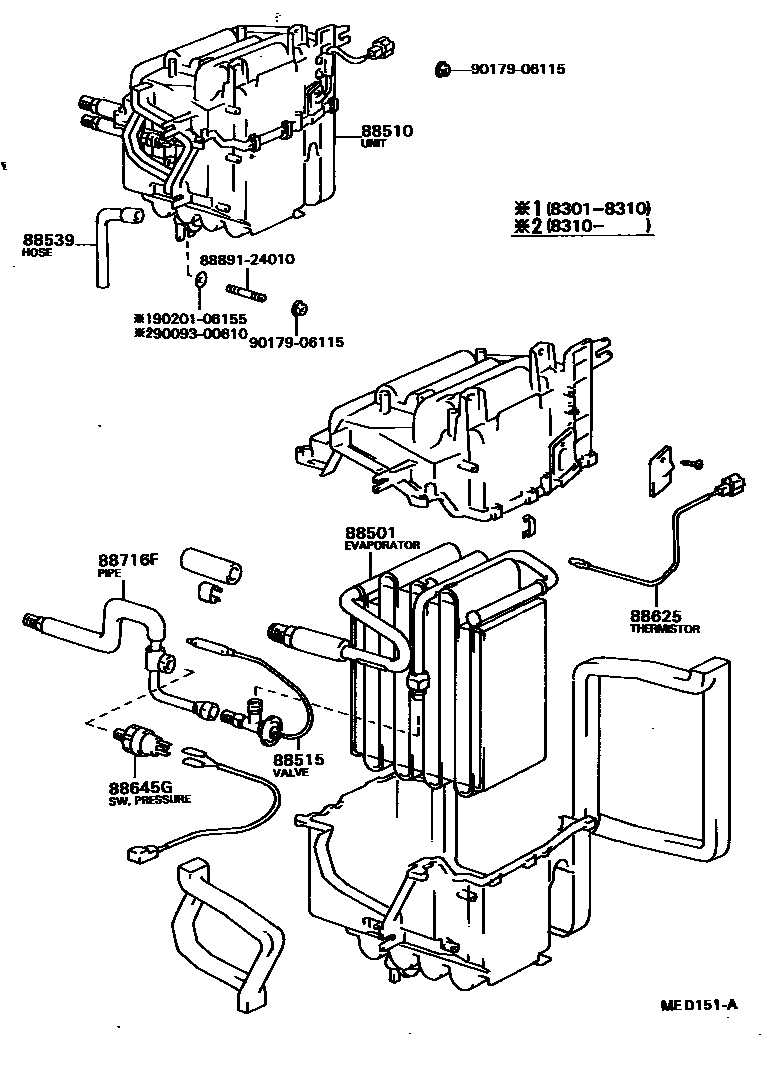

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0005 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20180iAT150,CT150,ST150,16#198301-198601

main88501-20181iAT150,CT150,ST150,16#198601-198711

88510UNIT ASSY, COOLER

main88510-20320iAT150,CT150,ST150198301-198404

main88510-20350iAT150,CT150,ST150,16#198404-198711

88515VALVE, COOLER EXPANSION

main88515-20050iAT150,CT150,ST150,16#198301-198711

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20100iAT150,CT150,ST150198301-198711

main88539-20140iST16#198508-198711

88625THERMISTOR, COOLER, NO.1

main88625-12070iAT150,CT150,ST150,16#198301-198711

88645GSWITCH, PRESSURE

main88645-12010iAT150,CT150,ST150,16#198301-198711

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-20670iAT150,CT150,ST150,16#198301-198711

8889124010PACKING (FOR COOLER)

main88891-24010

9009300610

main90093-00610

9017906115

main90179-06115

9020106155

main90201-06155

11 parts on this diagram · 4 diagrams in section
