WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

82001CABLE, BOND, NO.1

main86203-20120iAT150,ST150,16#198301-198708

FENDER RH

main86203-20130iAT150,ST150198301-198508

FENDER LH

main90980-07177iAT150,ST150198301-198508

CLUTCH HOUSING

main90980-07205iST150,160198301-198711

ENGINE HANGGER

main90980-07206iST16#198708-198711

FENDER RH

main90980-07228iAT150198310-198405

ENGINE HANGGER

main90980-07236iAT150198405-198710

ENGINE HANGGER

main90980-07239iST162198508-198711

ENGINE HANGGER

main90980-07264iAT150,ST150,16#198508-198711

CLUTCH HOUSING

main90980-07299iAT150198710-198711

ENGINE HANGGER

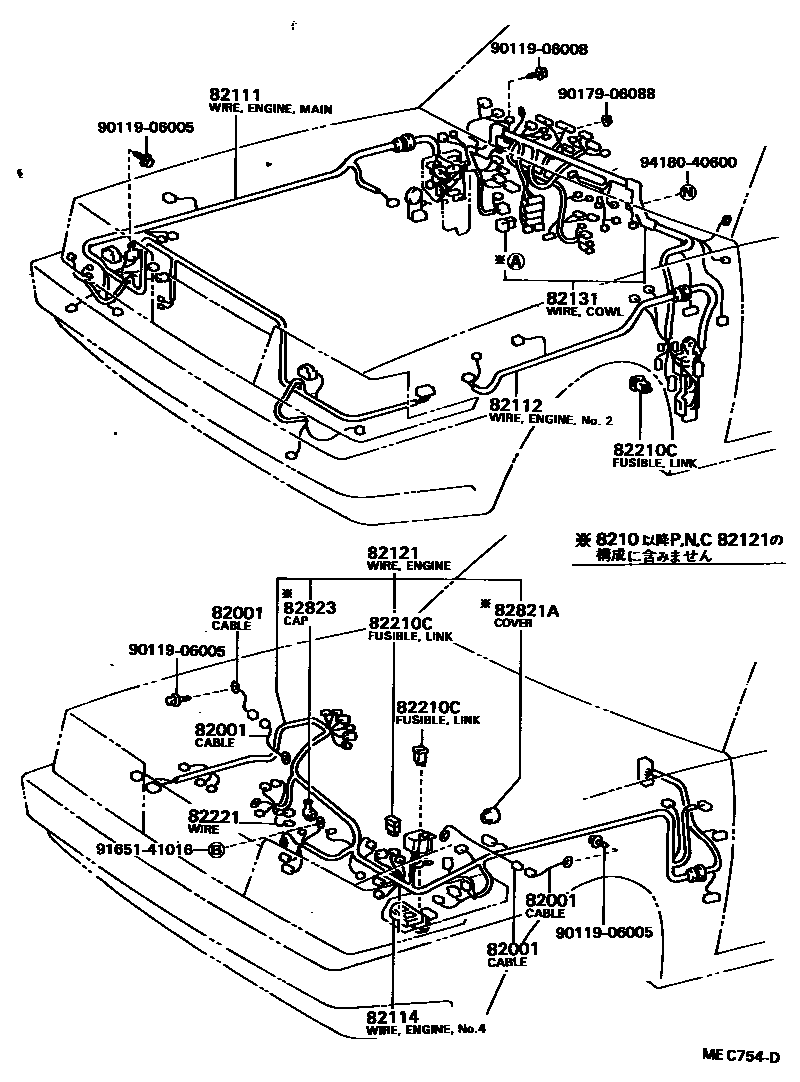

82111WIRE, ENGINE ROOM MAIN

main82111-20200iST150198301-198310

main82111-20240iAT150,CT150,ST150..4D198310-198508

main82111-20260iAT150,ST150..5D198310-198508

main82111-20270iST150..EXA,EXS,SX198310-198508

W/AUTO DRIVE

main82111-20510iAT150,CT150,ST150..4D198508-198711

main82111-20520iAT150,CT150,ST150..4D..(EXA,EXS,GX,SX); AT150,ST150..5D198508-198711

W/AUTO DRIVEOR *FRC

main82111-20530iST162198508-198711

main82111-20640iST160198508-198711

82112WIRE, ENGINE ROOM, NO.2

main82112-20020iST150198301-198310

main82112-20040iAT150,CT150,ST150198310-198711

main82112-20150iST16#198508-198711

82114WIRE, ENGINE ROOM, NO.4

main82114-32010iAT150,CT150,ST150,160198301-198711

W/COOLER

82121WIRE, ENGINE

main82121-20020iST150..5F..(DX,GX)198301-198310

main82121-20030iST150..3FC198301-198310

main82121-20040iST150..5F..EXS198301-198310

main82121-20051iAT150..DX,GX,STD198404-198508

main82121-20060iAT150198310-198404

main82121-20080iST150..5F..GX198310-198508

main82121-20100iST150..4FC..GX; ST150..EXS198310-198508

main82121-20110iST150..EFI198310-198508

main82121-20120iCT150198310-198508

main82121-20130iCT150198310-198508

COLD SPEC

main82121-20610iAT150..MTM198508-198711

main82121-20620iAT150..ATM198508-198711

main82121-20630iST150..5F..GX198508-198609

main82121-20631iST150..5F..GX198609-198711

main82121-20640iST150..4FC..GX198508-198609

main82121-20641iST150..4FC..GX198609-198711

main82121-20650iST150..EXS198508-198609

main82121-20651iST150..EXS198609-198711

main82121-20660iST150..EFI198508-198510

main82121-20662iST150..EFI198510-198609

main82121-20663iST150..EFI198609-198711

main82121-20670iST160198508-198510

main82121-20672iST160198510-198609

main82121-20673iST160198609-198611

main82121-20674iST160198611-198711

main82121-20680iCT150198508-198510

main82121-20681iCT150198510-198510

main82121-20682iCT150..5F198611-198711

main82121-20690iCT150198508-198510

COLD SPEC

main82121-20691iCT150198510-198611

COLD SPEC

main82121-20692iCT150198611-198711

COLD SPEC

main82121-20700iST162..5F198508-198510

main82121-20701iST162..5F198510-198607

main82121-20702iST162..5F198607-198609

main82121-20703iST162..5F198609-198711

main82121-20710iST162..4FC198508-198510

main82121-20711iST162..4FC198510-198607

main82121-20712iST162..4FC198607-198609

main82121-20713iST162..4FC198609-198711

main82121-2B081iCT150..4FC198510-198611

main82121-2B082iCT150..4FC198611-198711

82131WIRE, COWL

main82131-20490iST150..3FC..GX; ST150..5F..(DX,GX)198301-198310

main82131-20500iST150..GX198301-198310

EXTRA

main82131-20510iST150..EXS198301-198310

main82131-20520iST150..EXS198301-198310

W/*PW OR *27

main82131-20570iAT150..DX,GX,STD198310-198404

main82131-20571iAT150..DX,GX,STD198404-198410

main82131-20572iAT150..DX,GX,STD198410-198502

main82131-20580iAT150..GX198310-198404

W/*PW OR *BS

main82131-20581iAT150..GX198404-198410

W/*PW OR *BS

main82131-20583iAT150..ATM..GX198502-198508

W/*PW,*BS OR *RCM

main82131-20590iAT150..EXS198310-198410

main82131-20591iAT150..4FC..EXS198502-198508

main82131-20610iST150..4D..GX198310-198508

main82131-20620iCT150,ST150..4D..GX; ST150..5D..GX198310-198508

W/*BS

main82131-20630iCT150,ST150..GX198310-198504

W/*PW

main82131-20660iCT150,ST150..EXS198310-198508

main82131-20670iCT150,ST150..EXS198310-198508

W/*PW,*SNR,*27 OR *AD,W/O *DS

main82131-20680iST150..SX198310-198508

main82131-20690iST150..EXA198310-198508

main82131-20700iST150..EXA198310-198508

W/*SNR OR *AD,W/O *DS

main82131-20710iCT150..GX198310-198508

main82131-20840iST150..SX198310-198508

W/*SNR,*PW,*AD OR *27,W/O *DS

main82131-2B090iST150..EXA,EXS,SX198310-198403

W/*DS

main82131-2B091iST150..EXA,EXS,SX198403-198508

W/*DS

main82131-2B510iAT150..DX,GX,STD198508-198711

main82131-2B520iAT150..EXS198508-198711

main82131-2B530iST150..4D..GX198508-198711

main82131-2B540iCT150..GX; ST150..4D..GX; ST150..5D..GX198508-198711

W/*BS

main82131-2B550iCT150,ST150..EXS198508-198711

main82131-2B560iCT150,ST150..EXS198508-198711

W/*PW,*AD OR *SIS,W/O *DS

main82131-2B570iST150..SX198508-198711

main82131-2B580iST160198508-198711

main82131-2B590iST150..EXA198508-198711

main82131-2B600iST150..GX198508-198711

W/*DS

main82131-2B610iST150..EXA198508-198711

W/*DS

main82131-2B620iST162198508-198711

main82131-2B630iST162198508-198711

GT-R

main82131-2B640iST162198508-198711

W/*DS

main82131-2B650iST160198508-198711

W/*DS

main82131-2B860iAT150..MTM..GX198502-198508

W/*PW,*BS OR *RCM

main82131-2B870iAT150..5F..EXS198502-198508

main82131-2D040iAT150..MTM..(DX,GX,STD)198502-198508

main82131-2D070iST150..4D..GX198504-198508

W/TACHOMETER

main82131-2D250iAT150..4D..GX198511-198606

W/TACHOMETER

main82131-2D260iST150..4D..GX198511-198606

W/TACHOMETER

main82131-2D270iCT150..GX198511-198603

W/TACHOMETER

main82131-2D310iAT150..4D..GX198606-198612

W/TACHOMETER

main82131-2D311iAT150..4D..GX198612-198711

W/TACHOMETER

main82131-2D320iST150..4D..GX198606-198612

W/TACHOMETER

main82131-2D321iST150..4D..GX198612-198711

W/TACHOMETER

main82131-2D330iCT150..GX198603-198612

W/TACHOMETER

main82131-2D331iCT150..GX198612-198711

W/TACHOMETER

main82131-2G590iAT150,CT150,ST150..4D..GX198708-198711

GX-S

82210CFUSIBLE LINK

main90982-08188iAT150,ST150198301-198508

main90982-08189iST16#198508-198711

main90982-08190iAT150,ST150..CBR,EFI198508-198711

main90982-08202iCT150198310-198711

main90982-08203iCT150,ST16#198310-198711

main90982-08223iST16#198508-198711

82221WIRE, OIL PRESSURE SWITCH

main82221-16010iAT150198310-198508

82821ACOVER, CONNECTOR

main82821-20110iAT150,ST150..CBR,CI198301-198711

82823CAP, TERMINAL, NO.1

main82823-12020iST162198508-198607

ALTERNATOR

main82823-14070iCT150198310-198711

STARTER

main82823-20030iAT150,CT150,ST150198301-198508

STARTER

main82823-20040iCT150,ST150,160198508-198608

ALTERNATOR

main82823-22050iST150,160198608-198711

ALTERNATOR

main82823-22060iST162198607-198711

ALTERNATOR

9011906005

main90119-06005

9011906008

main90119-06008

9017906088

main90179-06088

9165141016

main91651-41016

9418040600

main94180-40600

15 parts on this diagram · 13 diagrams in section
