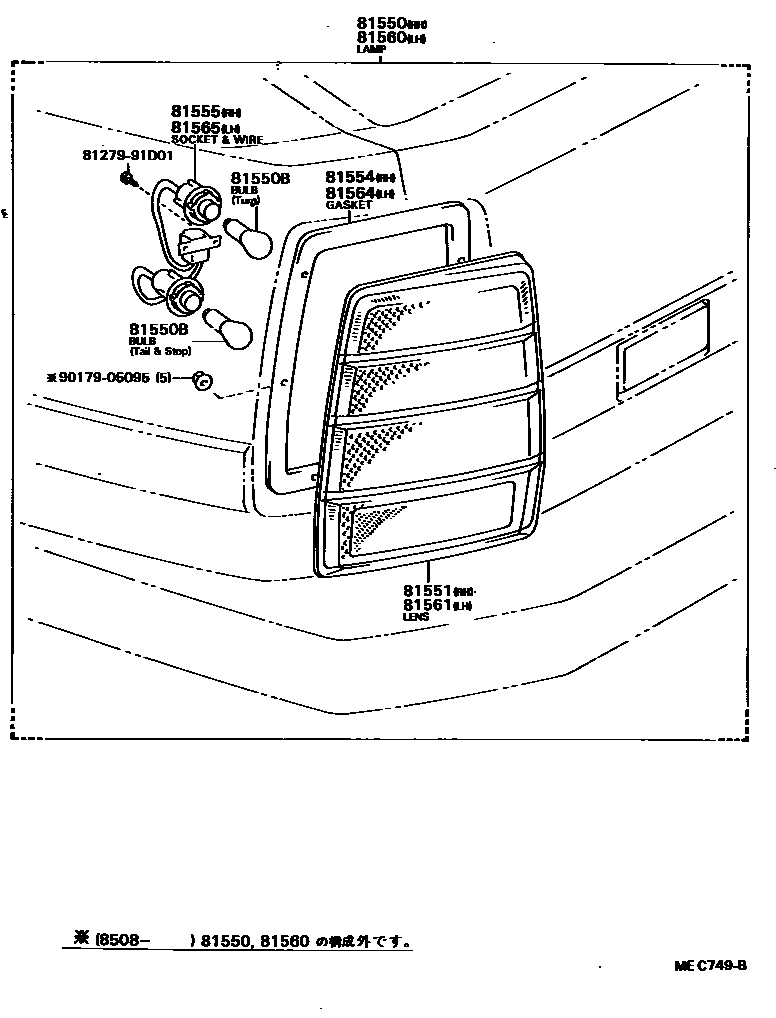

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-20760iAT150,CT150,ST150,16#..4D198508-198711

main81550-20770iAT150,ST150..5D198508-198711

main81550-80154iAT150,ST150..5D198301-198508

main81550-80202iAT150,CT150,ST150..4D198310-198508

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230×4iAT150,CT150,ST150,16#198301-198711

main99132-21210×2iAT150,CT150,ST150,16#198301-198711

81551LENS, REAR COMBINATION LAMP, RH

main81551-20590iAT150,ST150..5D198301-198508

main81551-20600iAT150,CT150,ST150..4D198310-198508

main81551-20760iAT150,CT150,ST150,16#..4D198508-198711

main81551-20770iAT150,ST150..5D198508-198711

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-14390iAT150,CT150,ST150..4D198310-198508

NO.2

main81552-20600iAT150,CT150,ST150,16#..4D198310-198711

NO.1

main81554-20590iAT150,ST150..5D198301-198711

main81554-20600iAT150,CT150,ST150,16#..4D198508-198711

NO.2

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-20590iAT150,ST150..5D198301-198711

main81555-20600iAT150,CT150,ST150..4D198310-198508

main81555-20760iAT150,CT150,ST150,16#..4D198508-198711

81560LAMP ASSY, REAR COMBINATION, LH

main81560-20700iAT150,CT150,ST150,16#..4D198508-198711

main81560-20710iAT150,ST150..5D198508-198711

main81560-80159iAT150,ST150..5D198301-198508

main81560-80207iAT150,CT150,ST150..4D198310-198508

81561LENS, REAR COMBINATION LAMP, LH

main81561-20530iAT150,ST150..5D198301-198508

main81561-20540iAT150,CT150,ST150..4D198310-198508

main81561-20700iAT150,CT150,ST150,16#..4D198508-198711

main81561-20710iAT150,ST150..5D198508-198711

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-14390iAT150,CT150,ST150..4D198310-198508

NO.2

main81552-20600iAT150,CT150,ST150,16#..4D198310-198711

NO.1

main81554-20590iAT150,ST150..5D198301-198711

main81554-20600iAT150,CT150,ST150,16#..4D198508-198711

NO.2

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-20590iAT150,ST150..5D198301-198711

main81555-20600iAT150,CT150,ST150..4D198310-198508

main81555-20760iAT150,CT150,ST150,16#..4D198508-198711

8127991D01WASHER, SIDE TURN SIGNAL LAMP

main81279-91D01

9017905095

main90179-05095

11 parts on this diagram · 3 diagrams in section
