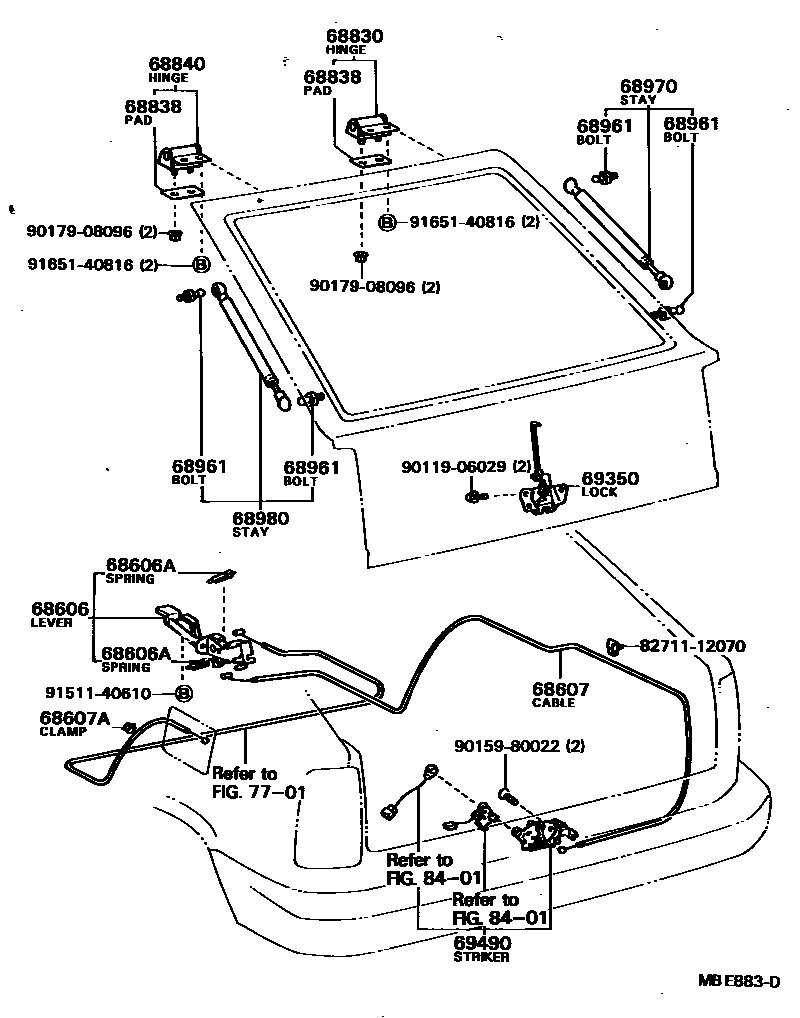

BACK DOOR LOCK & HANDLE

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-14030iAT150,ST150..5D198301-198711

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09004×2iAT150,ST150..5D198301-198711

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-20090iAT150,ST150..5D198301-198711

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main69749-12010iAT150,ST150..5D198301-198711

68830HINGE ASSY, BACK DOOR, RH

main68801-20020iAT150,ST150..5D198301-198711

68838PAD, BACK DOOR HINGE, NO.1

main68838-14021×2iAT150,ST150..5D198301-198711

68840HINGE ASSY, BACK DOOR, LH

main68801-20020iAT150,ST150..5D198301-198711

68961BOLT, BACK DOOR STAY

main68961-14010×4iAT150,ST150..5D198301-198506

main68961-20020×4iAT150,ST150..5D198506-198711

68970STAY ASSY, BACK DOOR, RH

main68950-29165iST150..EXS,GX198301-198310

main68950-29175iST150..DX198301-198310

main68950-29355iAT150,ST150..5D198410-198711

W/SPOILOR

68980STAY ASSY, BACK DOOR

main68950-29165iST150..EXS,GX198301-198310

main68950-29175iST150..DX198301-198310

main68950-29355iAT150,ST150..5D198410-198711

W/SPOILOR

69350LOCK ASSY, BACK DOOR

main69350-20020iAT150,ST150..5D198301-198711

69490STRIKER ASSY, BACK DOOR LOCK

main69430-20040iAT150,ST150..5D198301-198508

main69430-20070iAT150,ST150..5D198508-198711

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8271112070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12070

9011906029

main90119-06029

9015980022

main90159-80022

9017908096

main90179-08096

9151140610

main91511-40610

9165140816

main91651-40816

20 parts on this diagram · 1 diagram in section
