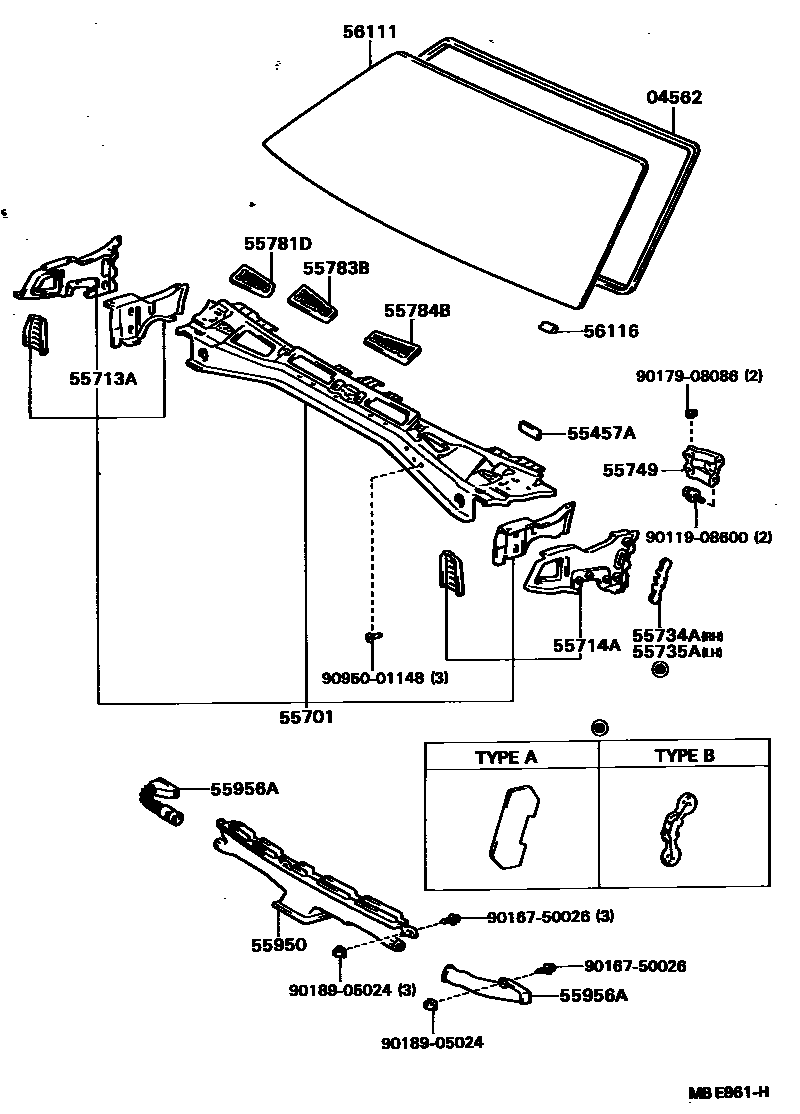

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-14010iAT150,CT150,ST150,16#198301-198711

55457ASPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22030×4iAT150,CT150,ST150,16#198301-198711

55701PANEL SUB-ASSY, COWL

main55700-20320iST150198301-198310

main55700-20350iAT150198310-198503

main55700-20351iAT150,ST150198508-198711

main55700-20370iCT150198310-198508

main55700-20371iCT150198508-198711

main55700-20380iST150198310-198503

main55700-20501iST162198508-198711

main55700-20521iST160198508-198711

55713APANEL, COWL TOP SIDE, RH

main55713-20060iAT150,CT150,ST150,16#198408-198711

55714APANEL, COWL TOP SIDE, LH

main55714-20060iAT150,CT150,ST150,16#198408-198711

55734APLATE, WATER GUARD, RH

main55734-20060iAT150,CT150,ST150198609-198711

TYPE B

main55734-20080iAT150,CT150,ST150198508-198711

TYPEA

55735APLATE, WATER GUARD, LH

main55734-20080iAT150,CT150,ST150,16#198508-198711

TYPEA

main55735-20040iAT150,CT150,ST150198301-198508

55749BRACE, COWL TOP TO PILLAR, LH

main55749-20030iAT150,CT150,ST150,16#198301-198711

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-20100iAT150,CT150,ST150,16#198301-198711

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-20060iAT150,CT150,ST150,16#198301-198711

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-20030iAT150,CT150,ST150,16#198301-198711

55950NOZZLE ASSY, DEFROSTER

main55950-20040iAT150,CT150,ST150,16#198301-198711

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55970-20030iAT150,CT150,ST150,16#198301-198711

LH

main55971-20040iAT150,CT150,ST150,16#198301-198509

RH

main55971-20041iAT150,CT150,ST150,16#198509-198711

RH

56111GLASS, WINDSHIELD

main56111-20380iST150198301-198310

*TZT,T=5.0

main56111-20400iST150..EXA198310-198508

W/SUN SHADE,*TL,T=5.3

main56111-20410iAT150..STD198310-198508

*ZT,T=5.0

main56111-20420iAT150,CT150,ST150,16#..DX,GT,GX,SX,SXR198508-198711

*TL,T=5.3

main56111-20430iST150..EXA198310-198508

BRONZE,*LAM,T=5.3

main56111-20440iAT150..STD198508-198711

*ZT,T=5.0

56116SPACER, WINDSHIELD GLASS

main56116-14070×2iAT150,CT150,ST150,16#198301-198711

9011908600

main90119-08600

9016750026

main90167-50026

9017908086

main90179-08086

9018905024

main90189-05024

9095001148

main90950-01148

20 parts on this diagram · 1 diagram in section
