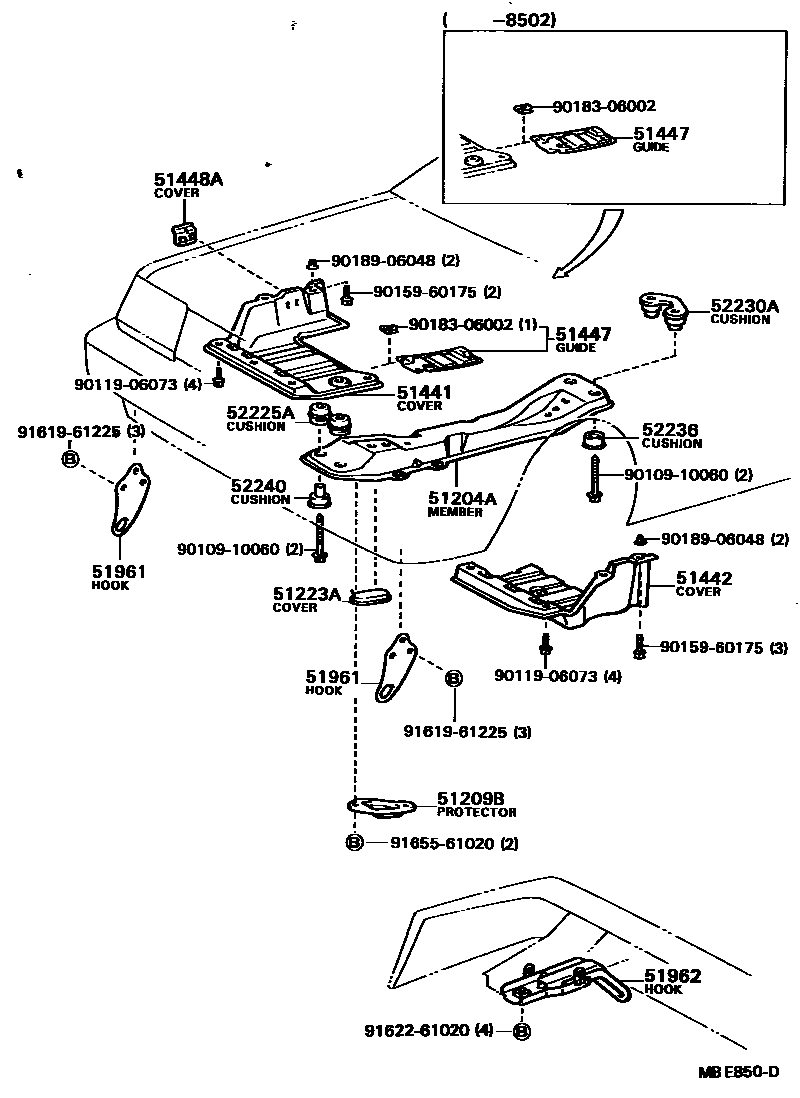

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20010iAT150,CT150,ST150198301-198612

main51204-20011iAT150,CT150,ST150198612-198711

main51204-20030iST16#198508-198711

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iST150198301-198310

COLD SPEC

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20020×2iAT150,CT150,ST150,16#198301-198711

51441COVER, ENGINE UNDER, NO.1

main51441-20080iAT150,CT150,ST150198301-198711

main51441-20120iST16#198508-198711

51442COVER, ENGINE UNDER, NO.2

main51442-20010iAT150,CT150,ST150..MTM198301-198711

main51442-20020iAT150,CT150,ST150..ATM198301-198711

main51442-20040iST16#..5F198508-198711

main51442-20050iST160..4FC198508-198711

main51442-20080iST162..4FC198508-198711

51447GUIDE, ENGINE UNDER COVER AIR

main51447-12070iAT150198310-198711

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iAT150,CT150,ST150198304-198508

main51448-20030iAT150,CT150,ST150,16#198508-198711

51961HOOK, NO.1

main51963-20060×2iAT150,CT150,ST150198301-198711

main51963-20070×2iST16#198508-198509

main51963-20080iST16#198509-198711

RH

main51964-20050iST16#198509-198711

LH

51962HOOK, NO.2

main51095-20030×2iAT150,CT150,ST150..4D..(DX,GX,STD)198310-198711

52225ACUSHION, CENTER MEMBER MOUNTING, FRONT UPPER

main52225-20010iAT150,CT150,ST150198301-198508

main52225-20030iAT150,CT150,ST150,16#198508-198711

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-20010iAT150,CT150,ST150198301-198508

main52230-20030iAT150,CT150,ST150,16#198508-198711

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-20010×2iAT150,CT150,ST150198301-198508

main52236-20030×2iAT150,CT150,ST150,16#198508-198711

52240CUSHION ASSY, CENTER MEMBER MOUNTING, FRONT LOWER

main52240-20010×2iAT150,CT150,ST150198301-198508

main52240-20030×2iAT150,CT150,ST150,16#198508-198711

9010910060

main90109-10060

9011906073

main90119-06073

9015960175

main90159-60175

9018306002

main90183-06002

9018906048

main90189-06048

9161961225

main91619-61225

9162261020

main91622-61020

9165561020

main91655-61020

21 parts on this diagram · 2 diagrams in section
