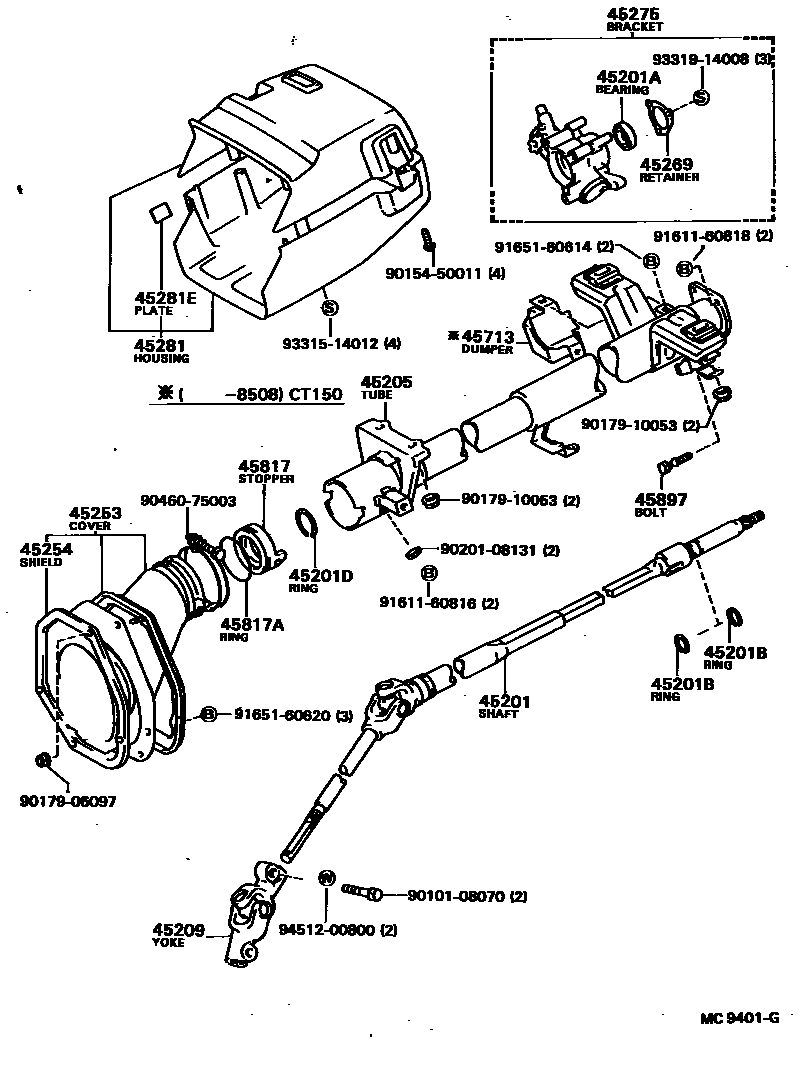

STEERING COLUMN & SHAFT

0001 1 0002 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-20110iAT150,CT150,ST150..EXA,EXS,GX,SX198301-198711

W/POWER STEERING

main45210-20150iAT150..DX,GX,STD198310-198711

main45210-20230iST16#198508-198711

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iAT150,CT150,ST150,16#198301-198711

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iAT150,CT150,ST150,16#198301-198711

main90520-17196×2iAT150,CT150,ST150,16#198301-198711

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iAT150,CT150,ST150,16#198301-198711

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-20110iAT150,CT150,ST150..MTM..(DX,GX,STD)198301-198711

main45870-20120iAT150,CT150,ST150..ATM..GX198301-198711

main45870-20130iAT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR198301-198711

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-32010iAT150..DX,GX,STD198310-198711

main45209-32020iAT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR198301-198711

W/POWER STEERING

45253COVER, STEERING COLUMN HOLE

main45025-20130iAT150,CT150,ST150,16#198301-198711

45254SHIELD, STEERING COLUMN HOLE

main45254-20080iAT150,CT150,ST150,16#198301-198711

45269RETAINER, MAIN SHAFT BEARING

main45269-10010iAT150,CT150,ST150,16#198301-198711

45275BRACKET, STEERING COLUMN, UPPER

main45280-20240iAT150,ST162; CT150,ST150..EXS,SX198612-198703

main45280-20241iAT150,ST162; CT150,ST150..EXS,SX198703-198711

main45280-20260iAT150..GX; CT150,ST150,16#198612-198703

main45280-20261iAT150..GX; CT150,ST150,16#198703-198711

45281HOUSING, STEERING COLUMN

main45286-20921-02iST150..DX,GX198301-198307

MAROON,RED/MAROON,TRIM3#

main45286-20921-03iST150..DX,GX198301-198307

GRAY,GRAY,TRIM1#

main45286-20922-02iST150..EXS198301-198307

MAROON,RED/MAROON,TRIM3#

main45286-20922-03iST150..EXS198301-198307

GRAY,GRAY,TRIM1#

main45286-20925-02iAT150,CT150,ST150..DX,GX198307-198711

MAROON,RED/MAROON,TRIM3#

main45286-20925-03iAT150,CT150,ST150..DX,GX,STD198307-198711

GRAY,GRAY,TRIM1#

main45286-20925-04iAT150,CT150,ST150..DX,GX198310-198508

BLUE,BLUE,TRIM8#

main45286-20925-14iAT150,CT150,ST150..DX,GX198508-198711

BLUE,BLUE,TRIM8#

main45286-20926-02iAT150,CT150,ST150..EXA,EXS198508-198711

MAROON,RED/MAROON,TRIM3#

main45286-20926-03iAT150,CT150,ST150,16#..EXA,EXS,GT,SX,SXR198307-198711

GRAY,GRAY,TRIM1#

main45286-20926-04iAT150,CT150,ST150..EXA,EXS,SX198310-198508

BLUE,BLUE,TRIM8#

main45286-20926-14iAT150,CT150,ST150..EXA,EXS198508-198711

BLUE,BLUE,TRIM8#

45281EPLATE, SAFETY CAUTION

main45283-22010iAT150,CT150,ST150,16#198301-198711

45713DUMPER, STEERING SHAKE

main45713-20010iCT150198310-198508

45817STOPPER, STEERING SHAFT THRUST

main45808-20020iAT150,CT150,ST150,16#198301-198711

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main90301-54002iAT150,CT150,ST150,16#198512-198711

main96711-24056iAT150,CT150,ST150,16#198301-198512

45897BOLT, STEERING LOCK SET

main45897-12020iAT150,CT150,ST150,16#198310-198711

9010108070

main90101-08070

9015450011

main90154-50011

9017906097

main90179-06097

9017910053

main90179-10053

9020108131

main90201-08131

9046075003

main90460-75003

9161160816

main91611-60816

9161160818

main91611-60818

9165160614

main91651-60614

9165160620

main91651-60620

9331514012

main93315-14012

9331914008

main93319-14008

9451200800

main94512-00800

29 parts on this diagram · 2 diagrams in section
