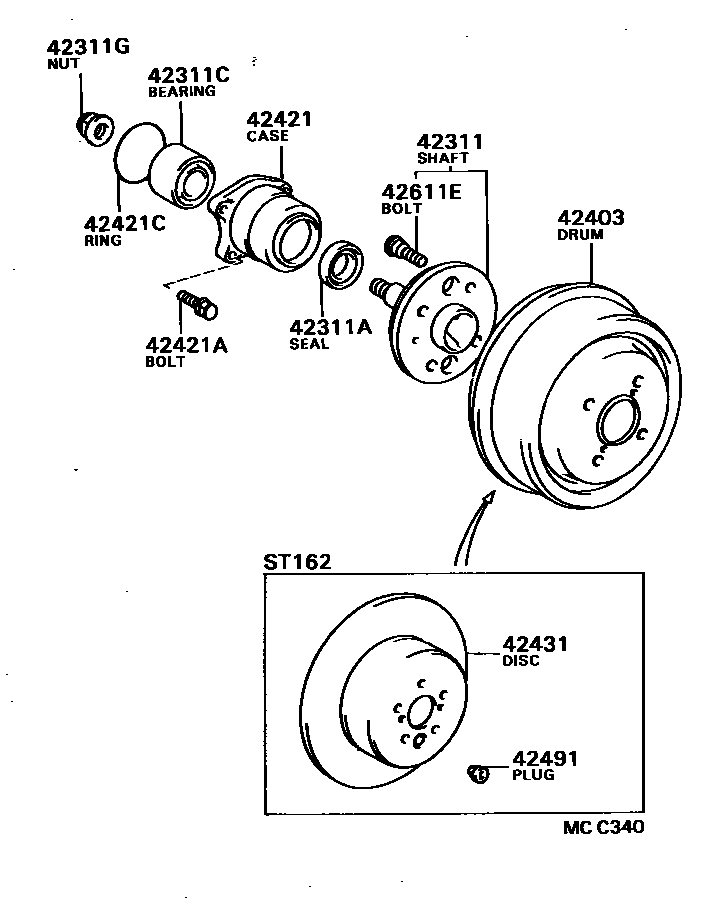

REAR AXLE SHAFT & HUB

42311SHAFT, REAR AXLE

main42301-20040×2iAT150,CT150,ST150198301-198710

main42301-20050×2iST160198508-198708

main42301-20060×2iST162198508-198708

main42301-20080×2iST160198708-198711

main42301-32031×2iST162198708-198711

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42006×2iAT150,CT150,ST150,16#198301-198511

main90311-42018×2iAT150,CT150,ST150,16#198511-198711

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30044×2iAT150,CT150,ST150,16#198301-198711

42311GNUT(FOR REAR AXLE SHAFT)

main90179-20003×2iAT150,CT150,ST150,16#198301-198711

42403DRUM SUB-ASSY, REAR BRAKE

main42431-20070×2iAT150,CT150,ST150198301-198711

main42431-20080×2iST160198508-198711

42421CASE, REAR AXLE BEARING

main42421-20020×2iAT150,CT150,ST150,16#198301-198711

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10006×8iAT150,CT150,ST150198301-198408

main90105-10120×8iAT150,CT150,ST150198408-198711

main90105-10124×4iST16#198508-198711

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-63003×2iAT150,CT150,ST150,16#198301-198711

42431DISC, REAR

main42431-20090×2iST162198508-198711

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iST162198508-198711

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×10iAT150,CT150,ST150,16#198301-198711

11 parts on this diagram · 1 diagram in section
