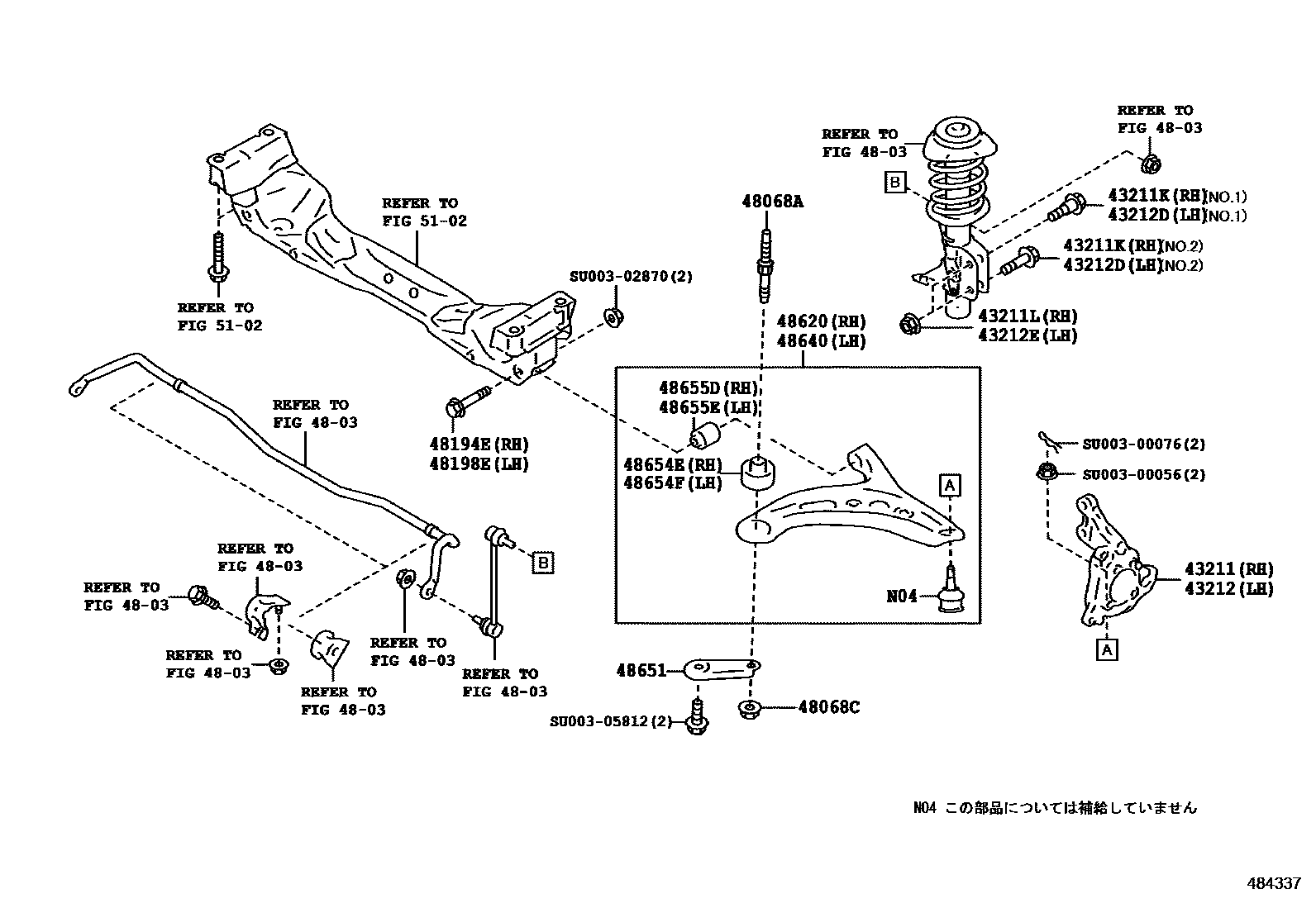

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

mainSU00300779iGRMN86201602

43211KBOLT (FOR STEERING KNUCKLE RH)

mainSU00302805iGRMN86201602

mainSU00302818iGRMN86201602

43211LNUT (FOR STEERING KNUCKLE RH)

mainSU00302889×2iGRMN86201602

43212KNUCKLE, STEERING, LH

mainSU00300780iGRMN86201602

43212DBOLT (FOR STEERING KNUCKLE LH)

mainSU00302805iGRMN86201602

mainSU00302818iGRMN86201602

43212ENUT (FOR STEERING KNUCKLE LH)

mainSU00302889×2iGRMN86201602

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

mainSU00302850×2iGRMN86201602

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

mainSU00302871×2iGRMN86201602

48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH

mainSU00300399iGRMN86201602

48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH

mainSU00300399iGRMN86201602

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

mainSU00300354iGRMN86201602

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

mainSU00300355iGRMN86201602

48651PLATE, LOWER ARM SUPPORT

mainSU00300359×2iGRMN86201602

48654EBUSH, FRONT LOWER ARM, NO.1 RH

mainSU00300357iGRMN86201602

48654FBUSH, FRONT LOWER ARM, NO.1 LH

mainSU00300357iGRMN86201602

48655DBUSH, FRONT LOWER ARM, NO.2 RH

mainSU00300356iGRMN86201602

48655EBUSH, FRONT LOWER ARM, NO.2 LH

mainSU00300356iGRMN86201602

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

SU00300056

mainSU003-00056

SU00300076

mainSU003-00076

SU00302870

mainSU003-02870

SU00305812

mainSU003-05812

23 parts on this diagram · 1 diagram in section
