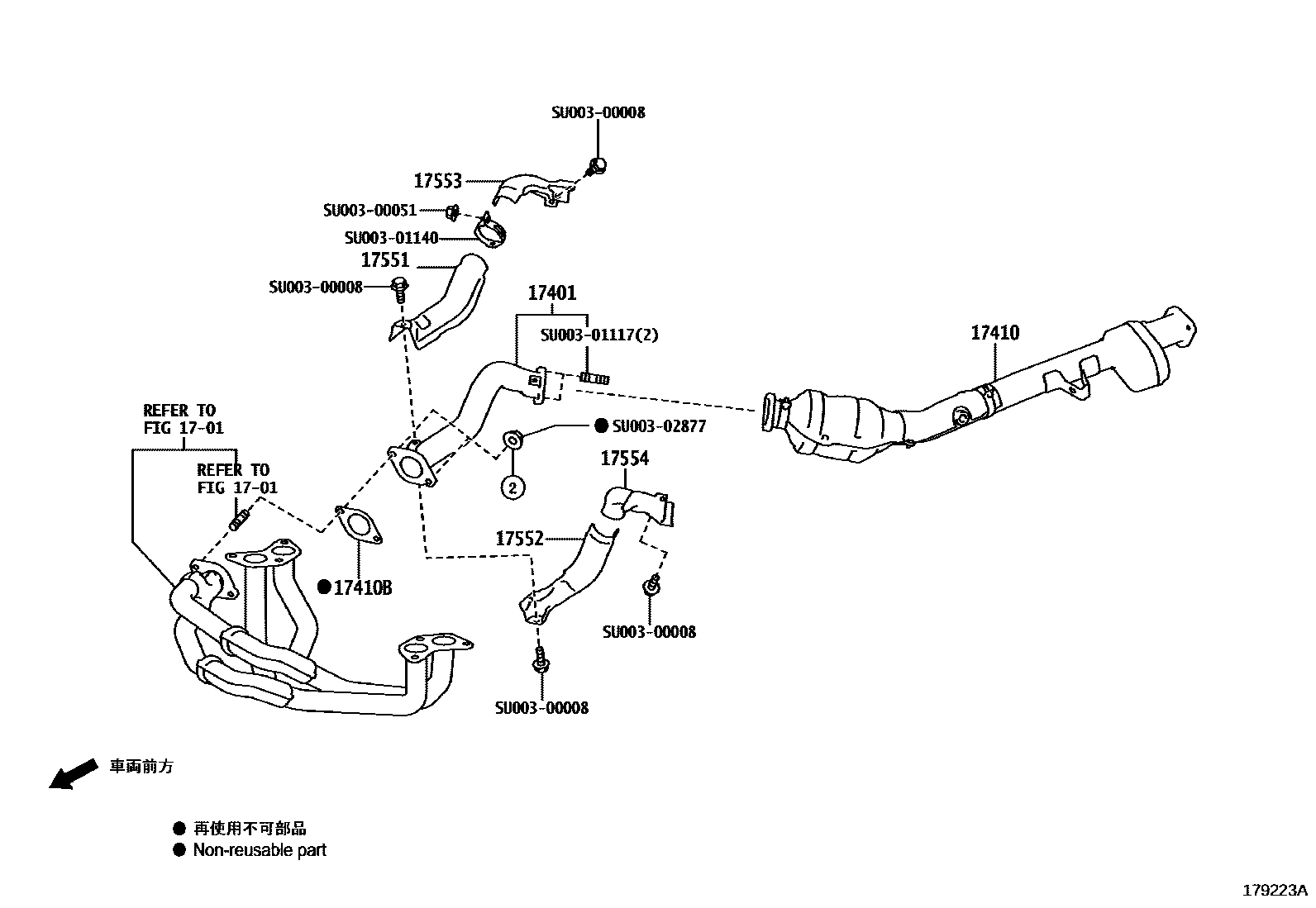

EXHAUST PIPE

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

17401PIPE SUB-ASSY, EXHAUST, FRONT

mainSU00301137iGRMN86201602

17410PIPE ASSY, EXHAUST, FRONT

main17410-53030iFA20..GRMN86201602

17410BGASKET, EXHAUST PIPE

mainSU00301110×2iGRMN86201602

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

mainSU00301164iGRMN86201602

17552INSULATOR, EXHAUST PIPE HEAT, NO.2

mainSU00301166iGRMN86201602

17553INSULATOR, EXHAUST PIPE HEAT, NO.3

mainSU00301168iGRMN86201602

17554INSULATOR, EXHAUST PIPE HEAT, FRONT

mainSU00301170iGRMN86201602

SU00300008

mainSU003-00008

SU00300051

mainSU003-00051

SU00301117

mainSU003-01117

SU00301140

mainSU003-01140

SU00302877

mainSU003-02877

13 parts on this diagram · 2 diagrams in section
