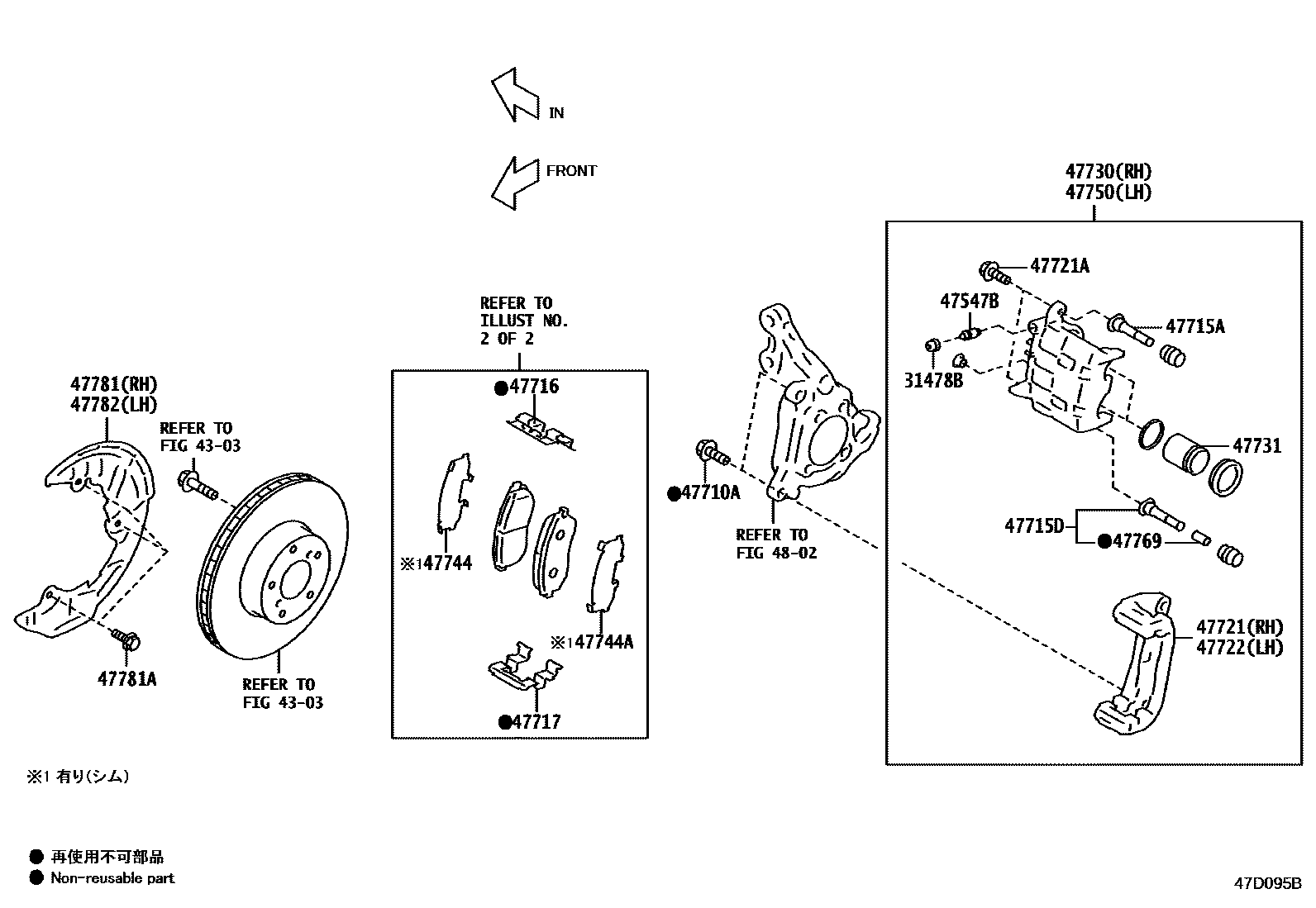

FRONT DISC BRAKE CALIPER & DUST COVER

0001 12POD TYPE 0002 12POD TYPE 0003 14POD TYPE 0004 14POD TYPE

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

mainSU00301627×2iZN8202110-202205

mainSU00306296×4iZN8..(ORB,RZ,SZ)..C202311

mainSU00312086×2iZN8..(RC,RCG,RZ,SZ)..C202401

4303FRONT AXLE HUB

→ Go to FIG 43-03

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

mainSU00300582×2iZN8202110-202205

mainSU00306295×4iZN8..(ORB,RZ,SZ)..C202311

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

mainSU00306369×4iZN8..(RZ,SZ)..C; ZN8..ORB202311

mainSU00307586×4iZN8202110-202205

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

mainSU00305830×2iZN8202110-202205

mainSU00306288×4iZN8..(ORB,RZ,SZ)..C202311

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

mainSU00305829×2iZN8202110-202205

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

mainSU00300578×2iZN8202110-202205

mainSU00306290×2iZN8..(RZ,SZ)..C; ZN8..ORB202311

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

mainSU00300577×2iZN8202110-202205

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

mainSU00300572iZN8202110-202205

mainSU00306297iZN8..(RZ,SZ)..C; ZN8..ORB202311

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

mainSU00300575×4iZN8202110-202205

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

mainSU00300573iZN8202110-202205

mainSU00306297iZN8..(RZ,SZ)..C; ZN8..ORB202311

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

mainSU00310486iZN8202110-202205

mainSU00311424iZN8..(RZ,SZ)..C; ZN8..ORB202311

mainSU00312031iZN8..(RC,RCG)..C; ZN8..(RZ,SZ)..C; ZN8..RZ..C202401

47731PISTON, FRONT DISC BRAKE

mainSU00300634×4iZN8202110-202205

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

mainSU00306293×2iZN8202110-202205

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

mainSU00306294×2iZN8202110-202205

47750CYLINDER ASSY, DISC BRAKE, LH

mainSU00310502iZN8202110-202205

mainSU00311425iZN8..(RZ,SZ)..C; ZN8..ORB202311

mainSU00312032iZN8..(RC,RCG)..C; ZN8..(RZ,SZ)..C; ZN8..RZ..C202401

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

mainSU00300576×2iZN8202110-202205

47781COVER, DISC BRAKE DUST, FRONT RH

mainSU00300583iZN8202110-202205

mainSU00311422iZN8..(RZ,SZ)..C; ZN8..ORB202311

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

mainSU00302783×6iZN8202110-202205

47782COVER, DISC BRAKE DUST, FRONT LH

mainSU00300584iZN8202110-202205

mainSU00311423iZN8..(RZ,SZ)..C; ZN8..ORB202311

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

21 parts on this diagram · 4 diagrams in section
