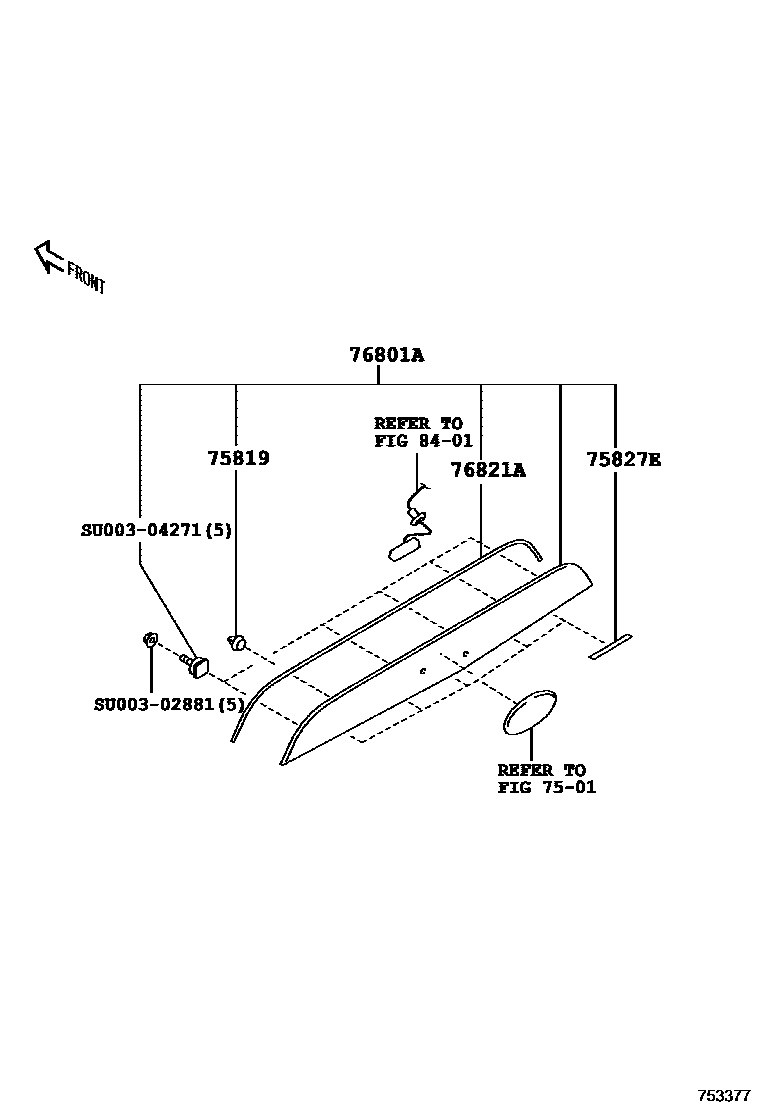

REAR MOULDING

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

mainSU00304272iZN6201904-202104

75827EPROTECTOR, LUGGAGE DOOR MOULDING

mainSU00304274×5iZN6201608-201709

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

mainSU00306652iZN6..G,RCG201608-201709

DARK GRAY METALLIC,61K

mainSU00306653iZN6..(G,RCG)..F201709-201804

LAPIS BLUE PEARL,K3X

mainSU00306654iZN6..G,RCG201608-201709

ORANGE METALLIC,H8R

mainSU00306656iZN6..G,RCG201608-201709

ICE SILVER METALLIC,G1U

mainSU00306657iZN6..G,RCG201608-201709

PURE RED,M7Y

mainSU00306658iZN6..(G,RCG)..F201709-201804

CRYSTAL BLACK SILICA,D4S

mainSU00306659iZN6..G,RCG201608-201709

CRYSTAL WHITE PEARL,K1X

mainSU00306684iZN6..GT,LHP,LIMD201608-201709

DARK GRAY METALLIC,61K

mainSU00306685iZN6..GT,LBP,LIMD201805-201904

LAPIS BLUE PEARL,K3X

mainSU00306686iZN6..GT,LHP,LIMD201608-201709

ORANGE METALLIC,H8R

mainSU00306687iZN6..(GT,LBP,LIMD)..F201709-201804

ICE SILVER METALLIC,G1U

mainSU00306688iZN6..(GT,LBP,LIMD)..F201709-201804

PURE RED,M7Y

mainSU00306689iZN6..(GT,LIMD)..F201709-201804

CRYSTAL BLACK SILICA,D4S

mainSU00306690iZN6..GR; ZN6..GRS,GT,LBP,LIMD201904-202104

CRYSTAL WHITE PEARL; CRYSTAL WHITE PEARL,K1X

mainSU00307427iZN6..SOLI201608-201709

SOLAR ORANGE

mainSU00307613iZN6..(G,RCG)..F201709-201804

SOLID GRAY,PBA

mainSU00307617iZN6..(GT,LBP,LIMD)..F201709-201804

SOLID GRAY,PBA

mainSU00307844iZN6..G,RCG201904-202104

BRIGHT BLUE,DAR

mainSU00307847iZN6..GT,LBP,LIMD201904-202104

DAR

mainSU00308114iZN6..G,RCG201904-202104

MAGNETITE GRAY M,P8Y

mainSU00308119iZN6..GT,LBP,LIMD201904-202104

MAGNETITE GRAY M,P8Y

mainSU00308120iZN6..GTBGL201904-202104

BRITISH RACING GREEN

76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

mainSU00304273iZN6201904-202104

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

SU00302881

mainSU003-02881

SU00304271

mainSU003-04271

8 parts on this diagram · 1 diagram in section
