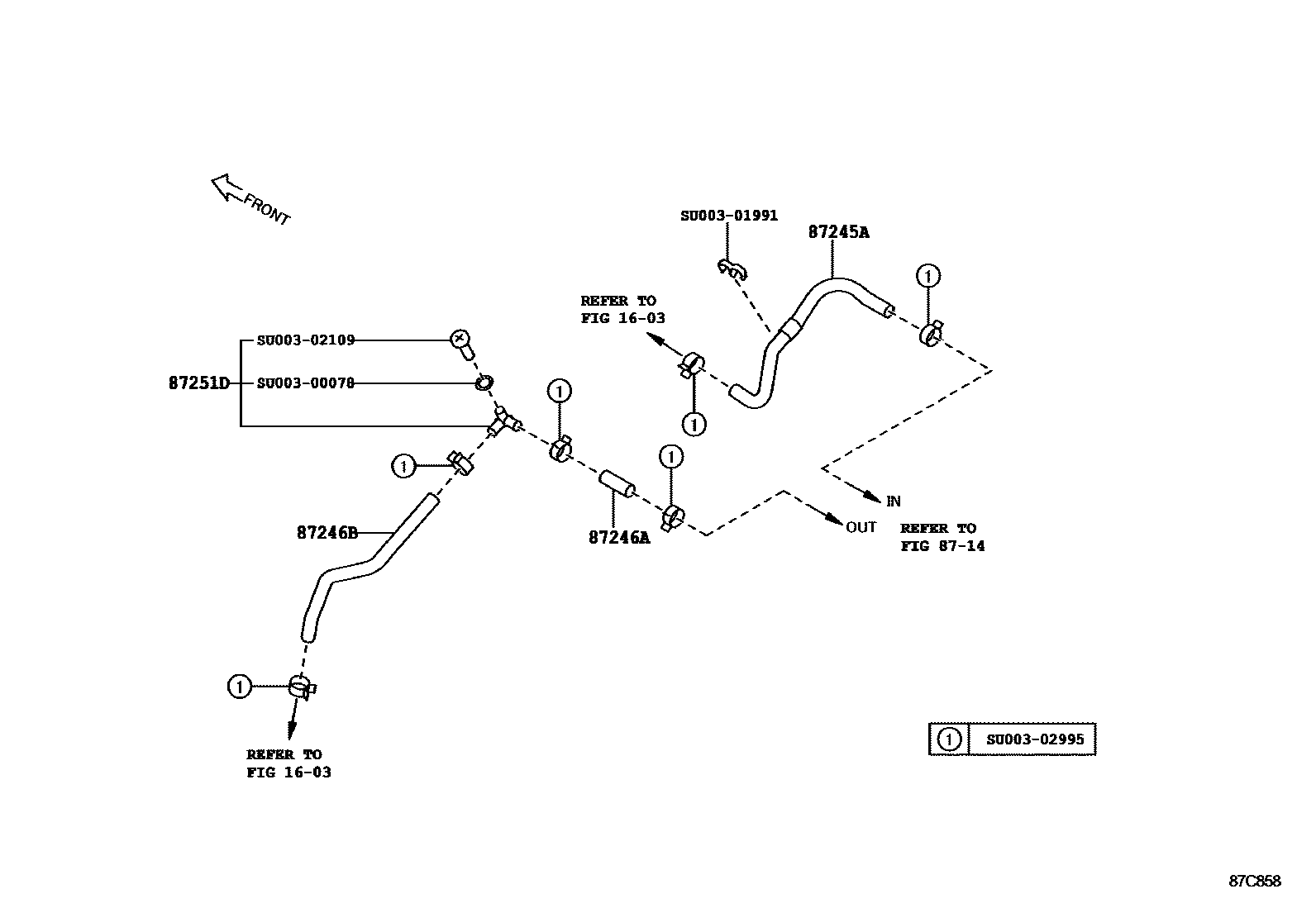

HEATING & AIR CONDITIONING - WATER PIPING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

mainSU00302106iZN6201203-201308

87246AHOSE, HEATER WATER, OUTLET A

mainSU00302107iZN6201203-201308

87246BHOSE, HEATER WATER, OUTLET B

mainSU00302108iZN6201203-201308

87251DJOINT, WATER, NO.1

mainSU00302110iZN6201203-201308

SU00300078

mainSU003-00078

SU00301991

mainSU003-01991

SU00302109

mainSU003-02109

SU00302995

mainSU003-02995

10 parts on this diagram · 1 diagram in section
