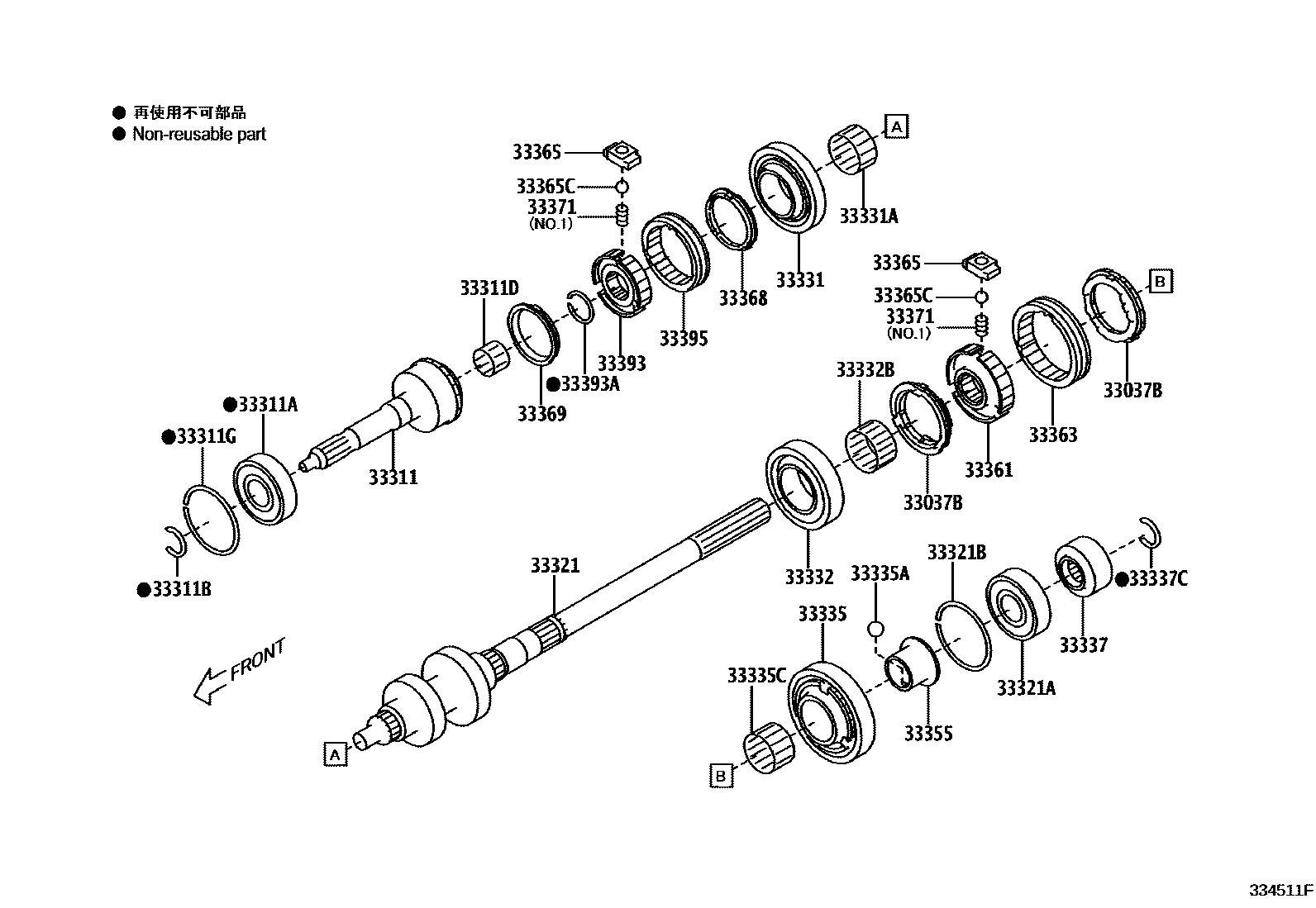

TRANSMISSION GEAR (MTM)

0001 1TL70 0002 1TL70

33037BRING SET, SYNCHRONIZER, NO.1

mainSU00303886×2iZN6..6F201203-201308

33311SHAFT, INPUT

mainSU00303911iZN6..6F201203-201308

33311ABEARING (FOR INPUT SHAFT FRONT)

mainSU00303527iZN6..6F201203-201308

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

mainSU00303575iZN6..6F201203-201308

mainSU00303576iZN6..6F..C201405-201503

mainSU00303577iZN6..6F..C201405-201503

mainSU00303578iZN6..6F..B201308-201405

mainSU00303579iZN6..6F201504-201607

mainSU00303580iZN6..6F..B201308-201405

mainSU00303927iZN6..6F..C201405-201503

33311DBEARING, INPUT SHAFT

mainSU00303522iZN6..6F201203-201308

33311GRING, SHAFT SNAP (FOR FRONT BEARING)

mainSU00303588iZN6..6F..C201405-201503

33321SHAFT, OUTPUT

mainSU00303912iZN6..6F201203-201308

33321ABEARING (FOR OUTPUT SHAFT REAR)

mainSU00303526iZN6..6F201203-201308

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

mainSU00303588iZN6..6F201203-201308

33331GEAR, REVERSE

mainSU00303913iZN6..6F201203-201308

33331ABEARING (FOR REVERSE GEAR)

mainSU00303523iZN6..6F201203-201308

33332GEAR, 2ND

mainSU00303914iZN6..6F201203-201308

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

mainSU00303520iZN6..6F201203-201308

33335GEAR, 1ST

mainSU00303915iZN6..6F201203-201308

33335ABALL, 1ST SHIFT RESTRICT

mainSU00303908iZN6..6F201203-201308

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

mainSU00303519iZN6..6F..C201405-201503

33337GEAR SUB-ASSY, 6TH

mainSU00303916iZN6..6F201203-201308

33337CRING, SHAFT SNAP(FOR 6TH GEAR)

mainSU00303564iZN6..6F201203-201308

mainSU00303565iZN6..6F201504-201607

mainSU00303566iZN6..6F..B201308-201405

mainSU00303567iZN6..6F..C201405-201503

mainSU00303568iZN6..6F201203-201308

mainSU00303569iZN6..6F..C201405-201503

mainSU00303570iZN6..6F201203-201308

mainSU00303571iZN6..6F..C201405-201503

mainSU00303572iZN6..6F..B201308-201405

mainSU00303573iZN6..6F201203-201308

mainSU00303574iZN6..6F201203-201308

mainSU00303926iZN6..6F..C201405-201503

33355RACE, 1ST GEAR BEARING INNER

mainSU00303891iZN6..6F..B201308-201405

33361HUB, TRANSMISSION CLUTCH, NO.1

mainSU00303893iZN6..6F201203-201308

33363SLEEVE, TRANSMISSION HUB, NO.1

mainSU00303895iZN6..6F201203-201308

33365KEY, SYNCHROMESH SHIFTING, NO.1

mainSU00303897×12iZN6..6F201504-201607

33365CBALL(FOR SYNCHROMESH SHIFTING KEY)

mainSU00303907×12iZN6..6F..B201308-201405

33368RING, SYNCHRONIZER, NO.2

mainSU00303901iZN6..6F201203-201308

33369RING, SYNCHRONIZER, NO.3

mainSU00303899iZN6..6F201203-201308

mainSU00305824iZN6..6F201411-201503

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

mainSU00303902×9iZN6..6F201203-201308

mainSU00303903×3iZN6..6F..B201308-201405

33393HUB, TRANSMISSION CLUTCH, NO.3

mainSU00303904iZN6..6F201203-201308

33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

mainSU00303581×2iZN6..6F201203-201308

mainSU00303582×2iZN6..6F..C201405-201503

mainSU00303583×2iZN6..6F..C201405-201503

mainSU00303584×2iZN6..6F201504-201607

mainSU00303585×2iZN6..6F..C201405-201503

mainSU00303586×2iZN6..6F201203-201308

mainSU00303928×2iZN6..6F..C201405-201503

33395SLEEVE, TRANSMISSION HUB, NO.3

mainSU00303905iZN6..6F201203-201308

29 parts on this diagram · 2 diagrams in section
