FRONT SEAT & SEAT TRACK

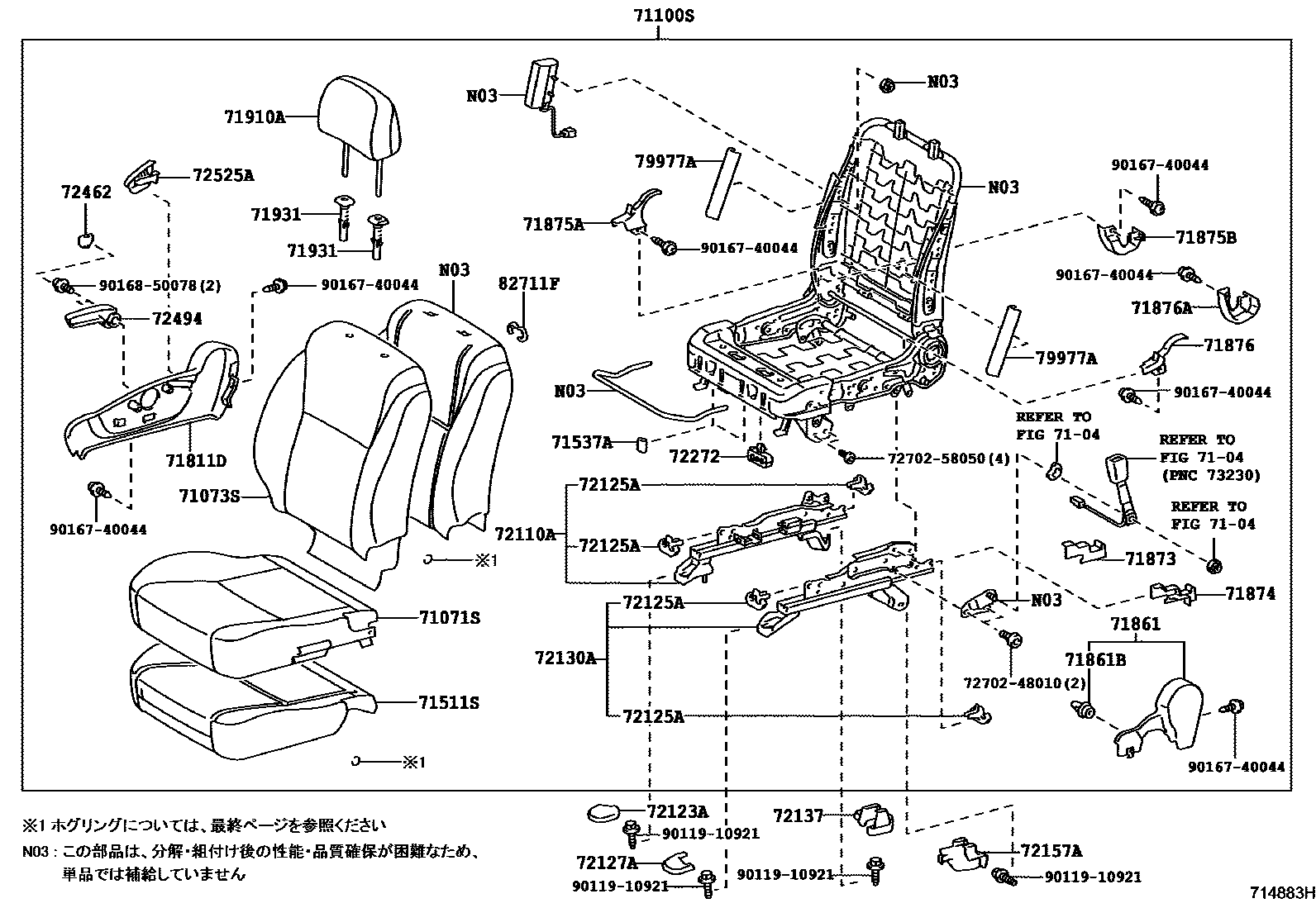

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-12L60-J1i200612-200912
DK.BLUE,TRIM8#
main71071-12L70-A2i200612-200912
IVORY,TRIM0#
main71071-12L70-J2i200612-200912
DK.BLUE,TRIM8#
main71071-12T70-A0i200912-201204
IVORY,TRIM0#
main71071-12T70-J0i200912-201204
DK.BLUE,TRIM8#
main71071-12T90-A3i200912-201204
NEW IVORY,TRIM0#
main71071-12T90-J2i200912-201204
DK.BLUE,TRIM8#
main71071-12G70-E1i200810-200912
main71071-12T80-J0i200912-201204
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-12L20-J0i200612-200912
DK.BLUE,TRIM8#
main71073-12L30-A1i200612-200912
IVORY,TRIM0#
main71073-12L30-J1i200612-200912
DK.BLUE,TRIM8#
main71073-12U70-A1i200912-201204
IVORY,TRIM0#
main71073-12U70-J1i200912-201204
DK.BLUE,TRIM8#
main71073-12U90-A4i200912-201204
NEW IVORY,TRIM0#
main71073-12U90-J3i200912-201204
DK.BLUE,TRIM8#
main71073-12F90-E1i200810-200912
main71073-12U80-J1i200912-201204
71100SSEAT ASSY, FRONT RH
main71100-12R10-J3i200612-200912
DK.BLUE,TRIM8#
main71100-12R30-A5i200612-200912
IVORY,TRIM0#
main71100-12R30-J5i200612-200912
DK.BLUE,TRIM8#
main71100-1AA70-A2i200912-201204
IVORI,TRIM0#
main71100-1AA70-J3i200912-201204
DK.BLUE,TRIM8#
main71100-1AA90-A5i200912-201204
IVORY,TRIM0#
main71100-1AA90-J4i200912-201204
DK.BLUE,TRIM8#
main71100-12R20-J3i200708-200912
main71100-12Y30-J1i200810-200912
main71100-12Y40-J1i200810-200912
main71100-1AA80-J3i200912-201204
main71100-1AB00-A5supersedes 71100-12R40-A5i200912-201204
main71100-1AB00-J4supersedes 71100-12R40-J5i200912-201204
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-12B20i200612-200912
main71511-12B90i200612-200912
71537APROTECTOR, FRONT SEAT CUSHION
main71537-26010×2i200912-201204
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-33170-A1i200612-200912
IVORY,TRIM0#
main71811-33170-J0i200612-200912
DK.BLUE,TRIM8#
main71811-42090-A0i200912-201204
IVORY,TRIM0#
main71811-42090-J0i200912-201204
DK.BLUE,TRIM8#
main71811-33170-E1i200810-200912
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-12280-A0i200912-201204
IVORY,TRIM0#
main71861-12280-J0i200912-201204
DK.BLUE,TRIM8#
main71861-33070-A0i200912-201204
IVORY,TRIM0#
main71861-33070-J0i200912-201204
DK.BLUE,TRIM8#
main71861-33070-E3i200810-200912
71861BCLIP(FOR FRONT SEAT SHIELD, RH)
main71769-33020i200612-200912
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-12040i200612-200912
main71873-42030i200912
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-12040i200912
main71874-42020i200912
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-58030-A1i200912-201204
IVORY,TRIM0#
main71875-58030-J0i200612-200912
DK.BLUE,TRIM8#
main71875-60160-A1i200912-201204
IVORY,TRIM0#
main71875-60160-J0i200912-201204
DK.BLUE,TRIM8#
main71875-58030-E5i200810-200912
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
main71875-58050i200912
main71875-58060i200912
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-60150-A1i200912-201204
IVORY,TRIM0#
main71875-60150-J0i200612-200912
DK.BLUE,TRIM8#
main71876-60160-A1i200912-201204
IVORY,TRIM0#
main71876-60160-J0i200912-201204
DK.BLUE,TRIM8#
main71875-60150-E8i200810-200912
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-58050i200612-200912
main71876-58060i200612-200912
71910AHEADREST ASSY, FRONT SEAT
main71910-12D00-J0×2i200612-200912
DK.BLUE,TRIM8#
main71910-12D10-A0×2i200612-200912
IVORY,TRIM0#
main71910-12D10-J0×2i200612-200912
DK.BLUE,TRIM8#
main71910-12E70-A0×2i200912-201204
IVORY,TRIM0#
main71910-12E70-J0×2i200912-201204
DK.BLUE,TRIM8#
main71910-12F50-A1×2i200912-201204
IVORY,TRIM0#
main71910-12F50-J1×2i200912-201204
DK.BLUE,TRIM8#
main71910-12E50-E0×2i200810-200912
71931SUPPORT, FRONT SEAT HEADREST
main71930-44020-A1×2i200612-200912
main71930-44020-J0×2i200612-200912
main71931-47010-A6×2i200912-201204
main71931-47010-J1×2i200612-200912
main71930-44020-E6×2i200810-200912
main71931-47010-L0×2i200810-200912
72110ATRACK ASSY, FRONT SEAT, OUTER RH
main72110-12190i200612-200912
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-12150-A0i200912-201204
IVORY,TRIM0#
main72123-12150-B0i200612-200912
DK.GRAY,TRIM8#
main72123-12160-A0i200912-201204
IVORY,TRIM0#
main72123-12160-B0i200612-200912
72125ACOVER, SEAT TRACK, UPPER REAR
main72125-13040×8i200612-200912
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72127-12030-A0i200912-201204
IVORY,TRIM0#
main72127-12030-B0i200912-201204
DK.GRAY,TRIM8#
main72127-12040-A0i200612-200912
main72127-12040-B0i200612-200912
72130ATRACK ASSY, FRONT SEAT, INNER RH
main72130-12780i200612-200912
72137COVER, SEAT TRACK, OUTER RH
main72137-12150-A0i200912-201204
IVORY,TRIM0#
main72137-12150-B0i200912-201204
DK.GRAY,TRIM8#
main72137-12180-A0i200612-200912
main72137-12180-B0i200612-200912
72157ACOVER, SEAT TRACK BRACKET, INNER RH
main72157-12120-A0i200912-201204
IVORY,TRIM0#
main72157-12120-B0i200912-201204
DK.GRAY,TRIM8#
main72157-12160-A0i200612-200912
main72157-12160-B0i200612-200912
72272CLAMP, SEAT TRACK CONTROL CABLE
main72272-12020i200612-200912
72462COVER, VERTICAL ADJUSTER RH
main72462-42010-A0i200912-201204
IVORY,TRIM0#
main72462-42010-J0i200612-200912
DK.BLUE,TRIM8#
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-42010-A0i200912-201204
IVORY,TRIM0#
main72494-42010-J0i200612-200912
DK.BLUE,TRIM8#
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-42020-A0i200912-201204
IVORY,TRIM0#
main72525-42020-J0i200912-201204
DK.BLUE,TRIM8#
79977AFELT, SEATBACK
main79977-12040i200804-200912
82711FCLAMP, WIRING HARNESS
main82711-12120×2i200912
7270248010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-48010
7270258050BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-58050
9011910921
main90119-10921
9016740044
main90167-40044
9016850078
main90168-50078

35 parts on this diagram · 5 diagrams in section
