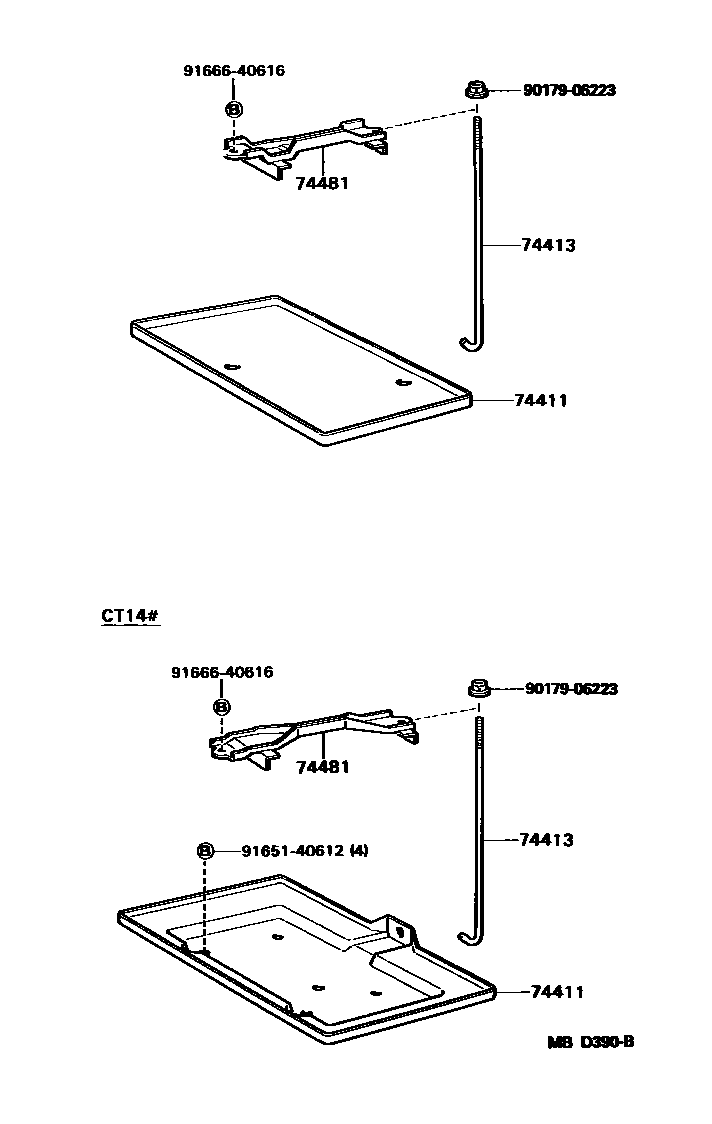

BATTERY CARRIER

74411CARRIER, BATTERY

main74411-14070iCT147198612-198712

55D23L,80D26L(NX110-5L)

main74411-14080iCT14#198201-198612

95D31L(NX120-7L)

main74431-14020iAT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

46B24R(NS60),46B24L(NS60L)

main74431-14030iYT140198612-199804

55D26R

main74431-14050iAT14#,KT147,RT141,ST140,TT14#198201-198612

34B19L(NS40ZAL)

74413BOLT, BATTERY CLAMP

main74451-14010iAT140,KT147,ST140198612-198712

main74451-30060iCT147198612-198712

74481CLAMP, BATTERY HOLD DOWN

main74404-14220iAT14#,KT147,RT141,ST140,TT14#,YT140198201-198612

34B19L(NS40ZAL),46B24R(NS60);46B24L(NS60L)

main74404-14240iCT147198612-198712

55D23L,80D26L(NX110-5L)

main74404-14250iYT140198612-199804

55D26R

main74404-14280iCT147198612-198712

95D31L(NX120-7L)

9017906223

main90179-06223

9165140612

main91651-40612

9166640616

main91666-40616

6 parts on this diagram · 1 diagram in section
