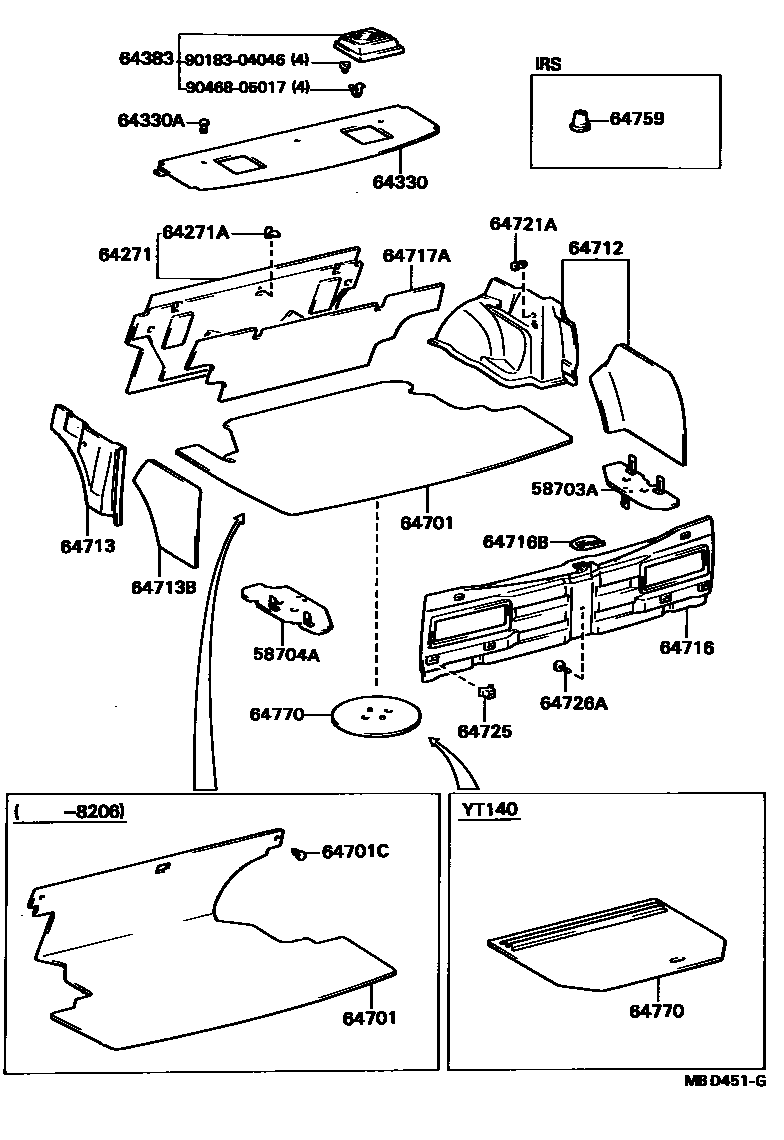

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0003 1 0004 1

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20030iAT140,ST140198612-198712

RH

main58703-20090iCT141,YT140198612-199804

RH

main58703-91D01iAT141,RT141,ST140,TT142..HT198201-198508

RH

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-20020iAT14#,CT140,RT141,ST140,TT142,YT140..SED198201-198612

LH

main58704-20090iCT141,YT140198612-199804

LH

main58704-91D01iAT141,RT141,ST140,TT142..HT198201-198508

LH

64271BOARD, ROOM PARTITION, NO.1

main64270-14061iAT140,CT140,RT141,ST140,TT142,YT140..SED..(DLX,GT,GTT,GX,GXA,STD,SX)198201-198307

main64270-14062iAT140,CT140,ST140,TT142,YT140..SED..(DLX,GTT,GX,GXA,STD,SX)198307-198310

main64270-14071iCT140,ST140..SED..(EXA,EXS)198201-198307

main64270-14072iCT140,ST140..SED..(EXA,EXS)198307-198310

main64270-20050iCT141,YT140198612-199202

main64271-20250iYT140199202-199804

main64271-91D01-01iST140..HT198201-198508

BLACK,BLACK,TRIM2#

main64271-91D01-04iST140..HT198201-198508

BLUE,BLUE,TRIM8#

main64271-91D01-06iST140..HT198201-198310

SADDLE BROWN,BROWN,TRIM4#

main64271-91D02-01iAT141,TT142..HT198310-198508

BLACK,BLACK,TRIM2#

main64271-91D02-04iAT141,TT142..HT198310-198508

BLUE,BLUE,TRIM8#

main64271-91D02-06iRT141,TT142..HT..(GT,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

64271ARETAINER, ROOM PARTITION BOARD

main62598-14020×2iAT14#,CT140,RT141,ST140,TT142,YT140..SED198201-198612

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-20340-01iAT140..GX198208-198310

GX EXTRA,BLACK,BLACK,TRIM2#

main64330-20340-04iAT140,ST140..SED..GX198310-198712

BLUE,BLUE,TRIM8#

main64330-20340-06iAT140,CT140,RT141,ST140,TT142..SED..(DLX,GT,GX,GXA,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main64330-20360-01iTT142..SED..GTT198210-198310

W/*SPG,BLACK,BLACK,TRIM2#

main64330-20360-04iRT141..SED198201-198210

W/*SPG,BLUE,BLUE,TRIM8#

main64330-20360-06iRT141..SED198201-198210

W/*SPG,S-BROWN,BROWN,TRIM4#

main64330-20370-04iCT140,ST140..SED..(EXA,EXS)198201-198206

W/*SPG,BLUE,BLUE,TRIM8#

main64330-20370-06iCT140,ST140..SED..(EXA,EXS)198201-198206

W/*SPG,S-BROWN,BROWN,TRIM4#

main64330-20371-04iCT140,ST140..SED..(EXA,EXS)198206-198310

W/*SPG,BLUE,BLUE,TRIM8#

main64330-20371-06iCT140,ST140..SED..(EXA,EXS)198206-198310

W/*SPG,S-BROWN,BROWN,TRIM4#

main64330-20400-04iCT140,ST140..SED..(EXA,EXS)198201-198206

W/*SPG & BACK SONER,BLUE,BLUE,TRIM8#

main64330-20400-06iCT140,ST140..SED..(EXA,EXS)198201-198206

W/*SPG & BACK SONER,S-BROWN,BROWN,TRIM4#

main64330-20401-04iCT140,ST140..SED..(EXA,EXS)198206-198310

W/*SPG & BACK SONER,BLUE,BLUE,TRIM8#

main64330-20401-06iCT140,ST140..SED..(EXA,EXS)198206-198310

W/*SPG & BACK SONER,S-BROWN,BROWN,TRIM4#

main64330-20410-04iCT140,ST140,TT142..SED..(GX,GXA,SX)198201-198310

W/BACK SONER,BLUE,BLUE,TRIM8#

main64330-20410-06iCT140,ST140,TT142..SED..(GX,GXA,SX)198201-198310

W/BACK SONER,S-BROWN,BROWN,TRIM4#

main64330-20540iAT141,TT142..SED198310-198508

W/*SPG,*SIS,BLACK

main64330-20800-01iCT141,YT140198612-199401

BLACK,BLACK,TRIM2#

main64330-2B780-C0iYT140199207-199401

main64330-2B790-C0iYT140199401-199804

main64330-2B800-C0iYT140199401-199804

BLACK,BLACK,TRIM2#

main64330-91D01-01iAT141,ST140,TT142..HT..(GT,GTT,GX)198310-198508

BLACK,BLACK,TRIM2#

main64330-91D01-04iRT141,ST140,TT142..HT..(GT,GX,SX)198201-198310

BLUE,BLUE,TRIM8#

main64330-91D01-06iRT141,ST140,TT142..HT..(GT,GX,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main64330-91D02-01iAT141,ST140,TT142..HT..(EXS,GT,GTT)198310-198508

W/*RW,BLACK,BLACK,TRIM2#

main64330-91D02-04iAT141,TT142..HT198310-198508

W/*RW,BLUE,BLUE,TRIM8#

main64330-91D02-06iRT141,TT142..HT..(GT,SX)198201-198310

W/*RW,S-BROWN,BROWN,TRIM4#

main64330-91D03-01iRT141,ST140..HT..(EXA,EXS,GT)198201-198310

W/*SPG,BLACK,BLACK,TRIM2#

main64330-91D03-04iRT141,ST140..HT..(EXA,EXS,GT)198201-198310

W/*SPG,BLUE,BLUE,TRIM8#

main64330-91D03-06iRT141,ST140..HT..(EXA,EXS,GT)198201-198310

W/*SPG,S-BROWN,BROWN,TRIM4#

main64330-91D03-11iAT141,ST140,TT142..HT..(EXS,GT,GTT)198310-198508

W/*SPG,BLACK,BLACK,TRIM2#

main64330-91D03-14iAT141,ST140,TT142..HT..(EXS,GT,GTT)198310-198508

W/*SPG,BLUE,BLUE,TRIM8#

main64330-91D04-01iRT141,TT142..HT198201-198310

W/*SPG,*RW,BLACK,BLACK,TRIM2#

main64330-91D04-04iRT141,TT142..HT..(GT,SX)198201-198310

W/*SPG,*RW,BLUE,BLUE,TRIM8#

main64330-91D04-06iRT141,TT142..HT..(GT,SX)198201-198310

W/*SPG,*RW,S-BROWN,BROWN,TRIM4#

main64330-91D04-11iAT141,TT142..HT198310-198508

W/*SPG,*RW,BLACK,BLACK,TRIM2#

main64330-91D04-14iAT141,TT142..HT198310-198508

W/*SPG,*RW,BLUE,BLUE,TRIM8#

main64330-91D05-01iAT141,ST140,TT142..HT..(EXS,GT,GTT)198310-198508

W/*SPG,*SIS,BLACK,BLACK,TRIM2#

main64330-91D05-04iAT141,ST140,TT142..HT..(EXS,GT,GTT)198310-198508

W/*SPG,*SIS,BLUE,BLUE,TRIM8#

main64330-91D06-01iAT141,TT142..HT198310-198508

W/*SPG,*SIS,*PW,BLACK,BLACK,TRIM2#

main64330-91D06-04iAT141,TT142..HT198310-198508

W/*SPG,*SIS,*PW,BLUE,BLUE,TRIM8#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08037-01×3iAT14#,CT140,ST140,TT142,YT140198310-198612

BLACK,BLACK,TRIM2#

main90467-08037-04×3iAT141,TT142..HT;AT140,ST140..EXS,GX198310-198712

BLUE,BLUE,TRIM8#

main90467-08037-16×3iAT140,CT140,ST140,TT142..DLX,EXA,EXS,GXA,SX198304-198310

SADDLE BROWN,BROWN,TRIM4#

main90467-08046-01×2iCT141,YT140198612-199804

BLACK,BLACK,TRIM2#

main90467-09144-01×3iYT140;RT141,ST140,TT142..HT;AT140,CT140,TT142..SED..(GTT,STD)198201-198304

BLACK,BLACK,TRIM2#

main90467-09144-14×3iAT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX198201-198304

BLUE,BLUE,TRIM8#

main90467-09144-26×3iAT140,CT140,RT141,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,SX198201-198304

SADDLE BROWN,BROWN,TRIM4#

64383GRILLE, SPEAKER, REAR

main64033-14030-01×2iAT141,ST140,TT142..HT..(EXS,GT,GTT)198310-198508

BLACK,BLACK,TRIM2#

main64033-14030-04×2iRT141,ST140..HT..(EXA,EXS,GT)198201-198210

BLUE,BLUE,TRIM8#

main64033-14030-14×2iST140..HT..(EXA,EXS)198210-198310

BLUE,BLUE,TRIM8#

main64033-14030-16×2iRT141,ST140..HT..(EXA,EXS,GT)198201-198310

SADDLE BROWN,BROWN,TRIM4#

main64033-14040-01iTT142..SED..GTT198210-198310

RH,BLACK,BLACK,TRIM2#

main64033-14040-04iCT140,RT141,ST140..SED..(EXA,EXS,GT)198201-198210

RH,BLUE,BLUE,TRIM8#

main64033-14040-14iCT140,ST140..SED..(EXA,EXS)198210-198310

RH,BLUE,BLUE,TRIM8#

main64033-14040-16iCT140,RT141,ST140..SED..(EXA,EXS,GT)198201-198310

RH,SADDLE BROWN,BROWN,TRIM4#

main64034-14030-01iTT142..SED..GTT198210-198310

LH,BLACK,BLACK,TRIM2#

main64034-14030-04iCT140,RT141,ST140..SED..(EXA,EXS,GT)198201-198210

LH,BLUE,BLUE,TRIM8#

main64034-14030-14iCT140,ST140..SED..(EXA,EXS)198210-198310

LH,BLUE,BLUE,TRIM8#

main64034-14030-16iCT140,RT141,ST140..SED..(EXA,EXS,GT)198201-198310

LH,SADDLE BROWN,BROWN,TRIM4#

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64701-14131iAT140,CT140,ST140..SED..(DLX,GX,GXA,STD)198201-198206

main64701-14141iCT140,ST140..SED..(EXA,EXS)198201-198206

main64701-14151iRT141..SED198201-198206

main64701-14161iTT142..SED198201-198206

main64711-20170iAT140,CT140,ST140..SED..(DLX,GX,GXA,STD)198206-198712

main64711-20180iCT140,ST140..SED..(EXA,EXS)198206-198310

main64711-20190iAT141,TT142..SED198206-198508

main64711-20200iRT141..SED198206-198210

main64711-20210iYT140198209-198612

main64711-20400-03iCT141198612-199111

GRAY,GRAY,TRIM2#

main64711-20410-03iYT140198612-198909

GRAY,GRAY,TRIM2#

main64711-20411-03iYT140198909-199804

GRAY,GRAY,TRIM2#

main64711-91D01iST140..HT..GX198201-198508

main64711-91D02iAT141,TT142..HT198201-198508

main64711-91D03iST140..HT..(EXA,EXS)198201-198508

main64711-91D04iTT142..HT198310-198508

GT-TR PACKAGE

64701CCLIP(FOR LUGGAGE COMPARTMENT MAT)

main90467-07158-01×2iAT140,CT140,RT141,ST140,TT142..SED198201-198206

BLACK

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64071-20010iCT140,ST140..SED..(EXA,EXS,GXA)198201-198310

main64071-20020iAT141,RT141,TT142..SED198201-198508

main64071-91D01iST140..HT..(EXA,EXS)198201-198508

main64071-91D02iAT141,RT141,TT142..HT198201-198508

main64712-20070iYT140..DLX198209-198210

main64712-20090iYT140..DLX198210-198612

main64712-20140-03iYT140..DLX198612-199804

GRAY,GRAY,TRIM2#

main64712-91D01iST140..HT..GX198201-198508

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64713-14080iAT140,CT140,ST140..SED..(EXA,EXS,GX,GXA)198201-198712

main64713-14090iAT141,RT141,TT142..SED198201-198508

main64713-20090iYT140..DLX198209-198612

main64713-20140-03iYT140..DLX198612-199804

GRAY,GRAY,TRIM2#

main64713-91D01iST140..HT198201-198508

main64713-91D02iAT141,RT141,TT142..HT198201-198508

64713BCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-20140iAT141,CT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GTT,GXA,SX)198201-198508

main64715-91D01iAT141,RT141,ST140,TT142..HT..(EXA,EXS,GT,GTT,SX)198201-198508

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-20070iTT142..SED198310-198508

GT-TR PACKAGE

main64716-91D01iRT141,ST140..HT..(EXA,EXS,GT)198201-198310

64716BCOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-14030iAT140,CT140,ST140,TT142..SED..(DLX,GX,GXA,STD,SX)198201-198208

main64749-91D01iST140,TT142..HT..(GX,SX)198201-198209

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-20070iAT140,CT140,ST140..SED..(EXA,EXS,GX,GXA)198206-198712

main64717-20080iAT141,RT141,TT142..SED198206-198508

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07158-01×2iAT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX198201-198712

BLACK

64725RETAINER, LUGGAGE COMPARTMENT COVER, NO.1

main64725-20010×6iTT142..SED198310-198508

GT-TR PACKAGE

64726ACLIP, LUGGAGE TRIM, REAR

main90467-05005×6iST140..EXS; TT142..HT198310-198508

SIDE; SIDE,GT-TR PACKAGE

main90467-06016-03×3iCT140,RT141,ST140..SED..(EXA,EXS,GT)198201-198310

GRAY

main90467-07029×3iST140..EXS; TT142..HT198310-198508

CENTER; CENTER,GT-TR PACKAGE

64759COVER, SHOCK ABSORBER HEAD

main58731-22020×2iAT141,RT141,TT142198201-198508

64770COVER ASSY, SPARE WHEEL

main64770-12010iTT142..GTT198210-198305

W/TEMPORARY TIRE

main64770-14010iAT140,CT140,RT141,ST140,TT142198201-198310

main64770-14040iTT142..GTT198305-198310

W/TEMPORARY TIRE

main64770-20040iYT140198209-198612

main64770-20041iYT140198612-198908

main64770-20042iYT140198908-199804

9018304046

main90183-04046

9046805017

main90468-05017

22 parts on this diagram · 3 diagrams in section
