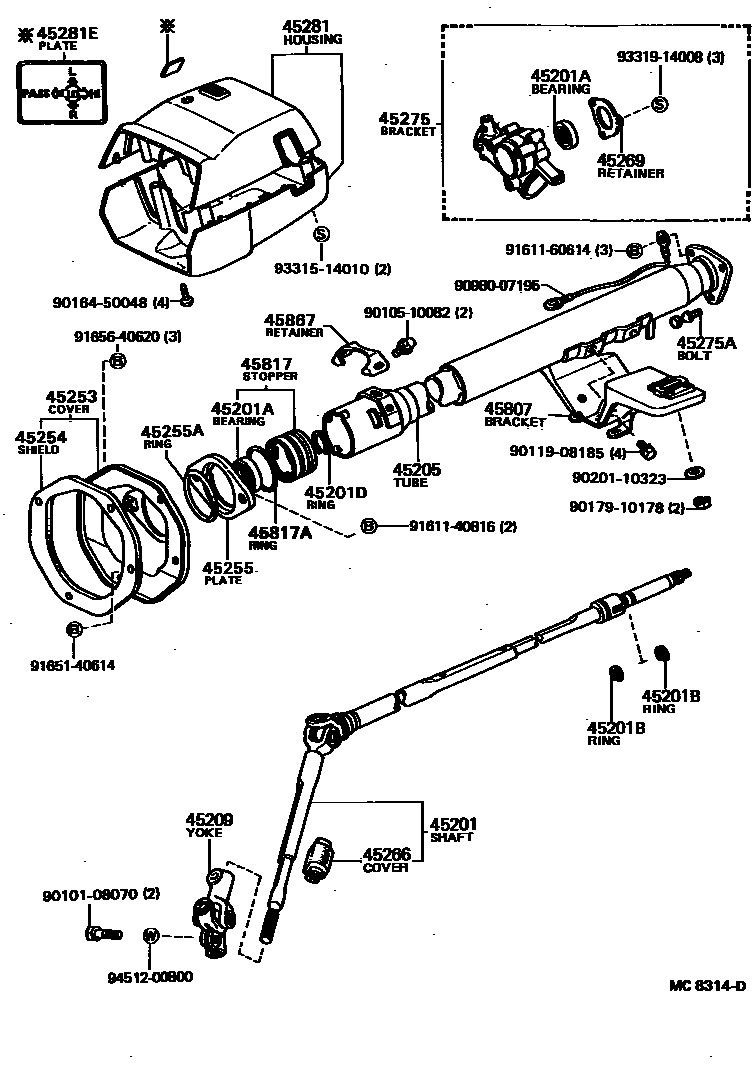

STEERING COLUMN & SHAFT

0001 1 0002 1 0004 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-14020iAT140,CT140,ST140,TT142..GX,SX198201-198307

main45210-14021iAT140198307-198712

main45210-14080iCT147,KT147,TT147198201-199804

main45210-14090iTT142..SX198201-198310

W/POWER STEERING

main45210-14130iTT142..SX198307-198310

main45210-20130iAT140,CT140,ST140..GX,GXA198201-198712

W/POWER STEERING

main45210-22050iCT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX198201-198508

W/TILT,W/POWER & TILT STEERIG

main45210-22050iCT141,YT140..3FC,5F198612-199804

W/TILT STEERING

main45210-22110iYT140198209-199804

W/POWER STEERING

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iCT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX198201-199804

UPR,W/TILT STEERING

main90363-18038iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,GX,GXA,STD,SX198201-199804

UPR

main90363-28001iCT141,YT140..3FC,5F198201-199804

CTR,W/TILT STEERING

main90363-30007iAT140,CT140,ST140..EXS,GX198201-198501

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

main90520-17196iAT140,CT14#,KT147,ST140,TT14#,YT140..DLX,GX,GXA,STD,SX198201-199804

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iAT140,CT140,ST140..EXS,GX198201-198712

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-14080iCT141,YT140..3FC,5F198612-199804

W/TILT STEERING

main45870-14100iCT140..GX198201-198712

main45870-14110iCT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX198201-198508

W/TILT STEERING

main45870-14130iCT140,141,KT147,TT147,YT140..STD198201-199804

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-14010iTT142198201-198307

main45209-14020iAT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX198201-198712

W/POWER STEERING

main45209-14030iAT140,CT140,ST140..GX198201-198307

main45209-32010iAT140,CT140,ST140..GX198307-198712

45253COVER, STEERING COLUMN HOLE

main45025-14100iAT140,CT140,ST140..EXS,GX198201-198712

main45025-14130iYT140..3FC,5F198201-199804

main45025-20090iYT140..4H198209-198612

main45025-20170iYT140..4H198612-199804

45254SHIELD, STEERING COLUMN HOLE

main45254-20060iYT140..4H198209-199804

main45254-24011iAT14#,CT14#,KT147,RT141,ST140,TT14#198201-199804

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12020iCT140,141,KT147,TT147,YT140..STD198201-199804

main45255-12030iAT140,CT140,ST140..EXS,GX198201-198712

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-45202iCT140,141,KT147,TT147,YT140..STD198201-199804

main90301-59001iAT140,CT140,ST140..EXS,GX198201-198712

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-12020iAT140,CT140,ST140..EXS,GX198201-198712

45269RETAINER, MAIN SHAFT BEARING

main45269-10010iCT141,YT140..3FC,5F198201-199804

main45269-20010iYT140..4H198209-199804

45275BRACKET, STEERING COLUMN, UPPER

main45280-20470iYT140..3FC198908-199207

main45280-20570iYT140199207-199804

main45280-24011iCT140,RT141,ST140,TT142..EXA,EXS,GT,GX,GXA,SX198201-198209

W/TILT STEERING

main45280-24012iCT141,YT140..3FC,5F198209-199804

W/TILT STEERING

main45280-24021iST140..EXA198201-198209

W/SPEAK MONITOR

main45280-24022iST140..EXA198209-198310

W/SPEAK MONITOR

main45280-24022iAT141,ST140..EXS,GT198310-198508

W/POWER WINDOW

main45280-24022iTT142198310-198508

GT-TR

main45280-24030iAT140,CT14#,ST140,TT14#..DLX,GX,GXA,STD,SX198201-198209

main45280-24031iAT140,CT14#,KT147,ST140,TT14#..DLX,GX,GXA,STD,SX198209-199207

main45280-30310iYT140..4H198209-199207

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main45897-12030iCT140..GX198201-198310

main45897-14010iCT140,RT141,ST140,TT142..GT,GTT,GX,SX198208-198310

W/TILT STEERING

main45897-30020iCT140,RT141,ST140,TT142..GT,GX,SX198201-198208

W/TILT STEERING

45281HOUSING, STEERING COLUMN

main45286-14922-01iCT141,YT140..3FC,5F198201-199804

W/TILT STEERING,BLACK,BLACK,TRIM2#

main45286-14922-04iAT141,ST140,TT142..HT198201-198508

W/TILT STEERING,BLUE,BLUE,TRIM8#

main45286-14922-06iCT140,RT141,ST140,TT142..SED..(EXA,EXS,GT,GX,GXA,SX)198201-198310

W/TILT STEERING,DARK BROWN,BROWN,TRIM4#

main45286-14922-16iRT141,ST140,TT142..HT..(EXA,EXS,GT,SX)198201-198310

W/TILT STEERING,SADDLE BROWN,BROWN,TRIM4#

main45286-20919-01iYT140..4H198209-198612

BLACK,BLACK,TRIM2#

main45286-20928-01iCT141,YT140..3FC,5F198612-199804

BLACK,BLACK,TRIM2#

main45286-20930-01iYT140..4H198612-199804

BLACK,BLACK,TRIM2#

main45286-24900-01iYT140..3FC,5F198201-198712

BLACK,BLACK,TRIM2#

main45286-24900-04iST140,TT142..HT..(GX,SX)198201-198508

BLUE,BLUE,TRIM8#

main45286-24900-06iAT140,CT14#,ST140,TT14#..(SED,V)..(DLX,GX,GXA,SX)198201-198712

DARK BROWN,BROWN,TRIM4#

main45286-24900-16iST140,TT142..HT..(GX,SX)198201-198310

SADDLE BROWN,BROWN,TRIM4#

45281EPLATE, SAFETY CAUTION

main45283-22010iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45807-20120iYT140..4H198209-199804

main45807-24011iAT140,CT14#,ST140,TT14#..DLX,GX,GXA,STD,SX198201-199804

45817STOPPER, STEERING SHAFT THRUST

main45808-12020iAT140,CT140,ST140..EXS,GX198201-198501

main45808-12030iAT14#,ST140,TT142198501-198712

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main96711-24053iAT140,CT140,ST140..EXS,GX198201-198712

45867RETAINER, STEERING MAIN SHAFT STOPPER

main45867-12010iAT140,CT140,ST140..EXS,GX198201-198712

9010108070

main90101-08070

9010510082

main90105-10082

9011908185

main90119-08185

9016450048

main90164-50048

9017910178

main90179-10178

9020110323

main90201-10323

9098007195

main90980-07195

9161140816

main91611-40816

9161160614

main91611-60614

9165140614

main91651-40614

9165640620

main91656-40620

9331514010

main93315-14010

9331914008

main93319-14008

9451200800

main94512-00800

34 parts on this diagram · 3 diagrams in section
