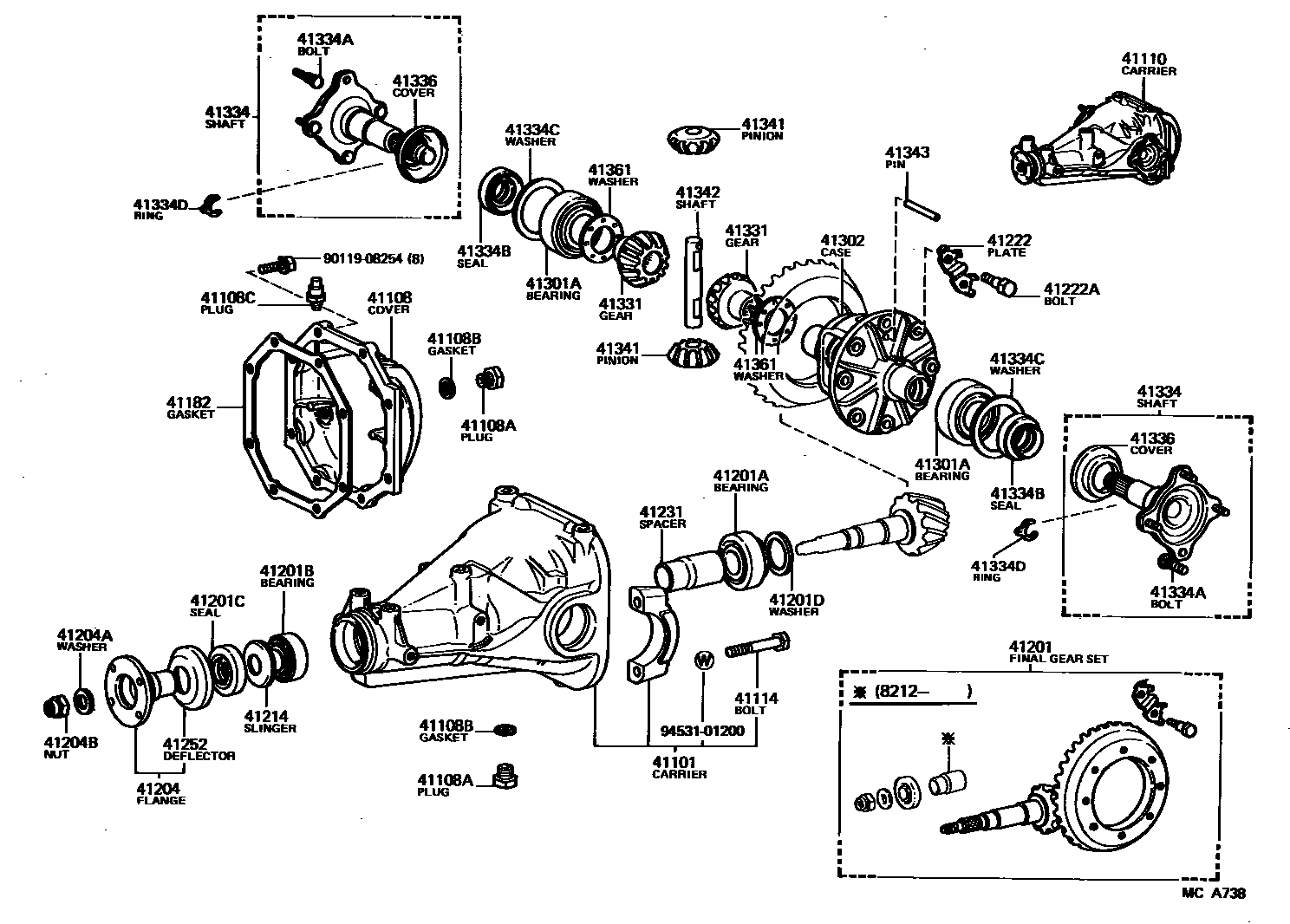

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-14020iAT141,TT142..GT,SX198201-198508

main41101-20020iAT140,CT140,141,ST140198201-199111

main41101-22020iRT141,TT142..GT,GTT198201-198508

main41101-22030iYT140198209-199804

main41101-30010iCT147,KT147,TT147198201-198712

41108COVER SUB-ASSY, REAR DIFFERENTIAL CARRIER

main41181-14020iAT141,TT142..GT,SX198201-198508

main41181-22011iRT141,TT142..GT,GTT198201-198508

41108APLUG (FOR REAR DIFFERENTIAL CARRIER COVER)

main90341-18006iAT141,TT142198311-198508

FILLER

main90341-18049iAT141,RT141,TT142198201-198311

FILLER

main90341-18057iAT141,RT141,TT142198201-198508

DRAIN

41108BGASKET (FOR REAR DIFFERENTIAL CARRIER COVER)

main12157-10010×2iAT141,RT141,TT142198201-198508

41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)

main90930-03031iAT141,RT141,TT142198201-198508

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-14210iRT141,TT142..GT,GTT198201-198508

main41110-14230iTT142..SX198201-198310

main41110-14240iAT141198310-198508

main41110-20181iAT140,CT140..ATM198201-198510

*AXC=T292,*FGR=41:10

main41110-20182iAT140..3FC198510-198712

main41110-20191iAT140..4F198310-198508

*AXC=T302,*FGR=41:11

main41110-20192iAT140,CT140,141..MTM198510-199111

main41110-20201iAT140,CT140..MTM; ST140..4FC198201-198310

*AXC=T312,*FGR=43:11

main41110-20202iST140..4FC198510-198712

main41110-20241iCT147,KT147,TT147..MTM198201-198508

main41110-20251iCT147,KT147..MTM198508-198712

main41110-20281iST140..SED..MTM..(GX,GXA)198201-198510

main41110-20282iST140..5F198510-198712

main41110-20320iYT140..4H198209-198510

*AXC=E372,*FGR=43:12

main41110-20321iYT140..MTM198510-199804

main41110-21020iKT147,TT147..3FC198201-198712

main41110-22141iRT141,TT142..GT,GTT198201-198508

main41110-22170iYT140198209-198510

main41110-22171iYT140198510-198606

*AXC=E302,*FGR=41:11

main41110-22230iYT140198606-199804

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12371×4iAT14#,CT140,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,STD,SX198201-198511

main90101-12376×4iCT147,KT147,YT140198408-199804

main90105-12053×4iTT142198408-198508

main90105-12114×4iAT140,CT140,141,ST140198511-199111

41182GASKET, DIFFERENTIAL CARRIER COVER

main41182-14020iAT141,TT142..GT,SX198201-198508

main41182-22011iRT141,TT142..GT,GTT198201-198508

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29168iCT147,KT147..MTM198508-198712

main41201-29196iAT140,CT140..ATM; TT142..SX198201-198212

*AXC=T292,*FGR=41:10

main41201-29197iTT142..SX198212-198310

main41201-29207iAT141198310-198508

main41201-29216iTT147..3FC198201-198212

main41201-29217iKT147,TT147..3FC198212-198712

main41201-29226iST140..HT..MTM;ST140..SED..5F..EXS198201-198212

*AXC=T302,*FGR=41:11

main41201-29227iST140..HT..MTM;ST140..SED..5F..EXS198212-198508

main41201-29236iAT140,CT140..MTM; ST140..4FC198201-198212

*AXC=T312,*FGR=43:11

main41201-29237iAT140,CT140..MTM; ST140..4FC198212-198310

main41201-29286iST140..SED..MTM..(GX,GXA)198201-198212

*AXC=T372,*FGR=43:12

main41201-29287iST140..SED..MTM..(GX,GXA)198212-198712

main41201-29425iYT140198209-198212

main41201-29426iYT140198212-198606

main41201-29445iYT140..4H198209-198212

*AXC=E372,*FGR=43:12

main41201-29446iYT140..4H198212-199804

main41201-29755iYT140198606-199804

main41201-39158iRT141,TT142..GT,GTT198201-198212

main41201-39218iCT147,TT147..MTM198201-198212

main41201-39555iCT147,KT147,TT147..MTM198212-198508

main41201-39575iTT142..GTT198212-198508

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iRT141,TT142..GT,GTT198201-198508

main90366-35031iCT147,KT147,YT140198510-199108

KOYO

main90366-35055iCT147,KT147,YT140198510-198604

NACHI

main90366-35064iYT140199108-199804

main90368-34049iTT142..SX198201-198310

main97609-32307iCT147,KT147,TT147,YT140198201-198510

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30008iCT147,KT147,TT147,YT140198201-198510

main90366-30022iRT141,TT142..GT,GTT198201-198508

main90366-30055iYT140199108-199804

main90368-30002iAT14#,CT140,141,ST140198201-199111

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38010iRT141,TT142..GT,GTT198201-198508

main90311-38015iAT140,CT140,141,ST140198201-199111

main90311-38019iAT141,TT142..GT,SX198201-198508

main90311-38133iCT147,KT147,TT147,YT140198201-199804

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

main90201-35397iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

main90201-35398iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

main90201-35399iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

main90201-35400iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

main90201-35401iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

main90201-35402iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

main90201-35403iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

main90201-35404iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

main90201-35434iCT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD198201-199804

main90201-35435iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

main90201-35436iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

main90201-35437iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

main90201-35438iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

main90201-35439iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

main90201-35440iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

main90201-35441iCT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD198201-199804

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20020iTT142..SX198201-198310

main41204-20030iCT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD198201-199804

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199308

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199308

main90179-18020iYT140199308-199804

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-20020iTT142..SX198201-198310

main41214-30021iCT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD198201-199804

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-28010×4iAT140,CT14#,KT147,ST140,YT140198511-199804

main41222-30030×4iAT14#,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX198201-198511

main41222-30040×5iRT141,TT142..GT,GTT198201-198508

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353×10iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140198201-199804

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iAT14#,CT140,141,RT141,ST140,TT142198201-199111

main41231-22020iCT147,KT147,TT147,YT140198201-199804

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-22010iTT142..SX198201-198310

main41252-30010iCT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD198201-199804

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-41001×2iAT141,TT142..GT,SX198201-198508

main90368-41050×2iAT140,CT140,141,ST140198201-199111

KOYO

main90368-41053×2iAT140,CT140,141,ST140198201-198809

NSK

main90368-41056×2iAT140,CT140,141,ST140198201-198809

NACHI

main90368-45002×2iRT141,TT142..GT,GTT198201-198508

main90368-45011×2iCT14#,KT147,YT140198707-199804

main90368-45066×2iCT147,KT147,TT147,YT140198201-198707

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-14020iRT141,TT142..GT,GTT198201-198508

W/LSD

main41311-14030iAT141,TT142..GT,SX198201-198508

main41311-22030iAT140,CT140,141,ST140198201-198704

main41311-22031iAT140,CT141,ST140198704-199111

main41311-22050iRT141,TT142..GT,GTT198201-198508

main41311-30022iCT147,KT147,TT147,YT140198201-199804

41331GEAR, REAR DIFFERENTIAL SIDE

main41305-14010×2iRT141,TT142..GT,GTT198201-198508

W/LSD

main41331-14030×2iAT141,TT142..GT,SX198201-198508

main41331-22020×2iAT140,CT140,ST140198201-198510

main41331-22021×2iAT140,CT140,141,ST140198510-199111

main41331-22041×2iRT141,TT142..GT,GTT198201-198508

main41331-30021×2iCT147,KT147,TT147,YT140198201-199610

41334SHAFT, REAR DIFFERENTIAL SIDE GEAR

main41309-14010×2iRT141,TT142..GT,GTT198201-198508

W/LSD

main41309-14020×2iAT141,TT142..GT,SX198201-198508

main41309-22012×2iRT141,TT142..GT,GTT198201-198508

41334ABOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90114-10003×8iAT141,RT141,TT142198201-198508

41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-38011×2iAT141,RT141,TT142198201-198508

41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90201-54001×2iAT141,TT142..GT,SX198201-198508

main90201-54002×2iAT141,TT142..GT,SX198201-198508

main90201-54003×2iAT141,TT142..GT,SX198201-198508

main90201-54004×2iAT141,TT142..GT,SX198201-198508

main90201-54005×2iAT141,TT142..GT,SX198201-198508

main90201-54006×2iAT141,TT142..GT,SX198201-198508

main90201-54007×2iAT141,TT142..GT,SX198201-198508

main90201-54008×2iAT141,TT142..GT,SX198201-198508

main90201-54009×2iAT141,TT142..GT,SX198201-198508

main90201-54010×2iAT141,TT142..GT,SX198201-198508

main90201-54011×2iAT141,TT142..GT,SX198201-198508

main90201-54012×2iAT141,TT142..GT,SX198201-198508

main90201-54013×2iAT141,TT142..GT,SX198201-198508

main90201-54014×2iAT141,TT142..GT,SX198201-198508

main90201-54015×2iAT141,TT142..GT,SX198201-198508

main90201-54016×2iAT141,TT142..GT,SX198201-198508

main90201-54017×2iAT141,TT142..GT,SX198201-198508

main90201-54018×2iAT141,TT142..GT,SX198201-198508

main90201-54019×2iAT141,TT142..GT,SX198201-198508

main90201-54020×2iAT141,TT142..GT,SX198201-198508

main90201-54021×2iAT141,TT142..GT,SX198201-198508

main90201-54022×2iAT141,TT142..GT,SX198201-198508

main90201-54023×2iAT141,TT142..GT,SX198201-198508

main90201-54024×2iAT141,TT142..GT,SX198201-198508

main90201-54025×2iAT141,TT142..GT,SX198201-198508

main90201-54026×2iAT141,TT142..GT,SX198201-198508

main90201-54027×2iAT141,TT142..GT,SX198201-198508

main90201-54028×2iAT141,TT142..GT,SX198201-198508

main90201-54029×2iAT141,TT142..GT,SX198201-198508

main90201-54030×2iAT141,TT142..GT,SX198201-198508

main90201-54031×2iAT141,TT142..GT,SX198201-198508

main90201-54032×2iAT141,TT142..GT,SX198201-198508

main90201-54033×2iAT141,TT142..GT,SX198201-198508

main90201-54034×2iAT141,TT142..GT,SX198201-198508

main90201-65007×2iRT141,TT142..GT,GTT198201-198508

main90201-65008×2iRT141,TT142..GT,GTT198201-198508

main90201-65009×2iRT141,TT142..GT,GTT198201-198508

main90201-65010×2iRT141,TT142..GT,GTT198201-198508

main90201-65011×2iRT141,TT142..GT,GTT198201-198508

main90201-65012×2iRT141,TT142..GT,GTT198201-198508

main90201-65013×2iRT141,TT142..GT,GTT198201-198508

main90201-65014×2iRT141,TT142..GT,GTT198201-198508

main90201-65015×2iRT141,TT142..GT,GTT198201-198508

main90201-65016×2iRT141,TT142..GT,GTT198201-198508

main90201-65017×2iRT141,TT142..GT,GTT198201-198508

main90201-65018×2iRT141,TT142..GT,GTT198201-198508

main90201-65019×2iRT141,TT142..GT,GTT198201-198508

main90201-65020×2iRT141,TT142..GT,GTT198201-198508

main90201-65021×2iRT141,TT142..GT,GTT198201-198508

main90201-65022×2iRT141,TT142..GT,GTT198201-198508

main90201-65023×2iRT141,TT142..GT,GTT198201-198508

main90201-65024×2iRT141,TT142..GT,GTT198201-198508

main90201-65025×2iRT141,TT142..GT,GTT198201-198508

main90201-65026×2iRT141,TT142..GT,GTT198201-198508

main90201-65027×2iRT141,TT142..GT,GTT198201-198508

main90201-65028×2iRT141,TT142..GT,GTT198201-198508

main90201-65029×2iRT141,TT142..GT,GTT198201-198508

41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90520-22002×2iAT141,TT142..GT,SX198201-198508

main90521-29002×2iRT141,TT142..GT,GTT198201-198508

41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main41336-14010×2iAT141,TT142..GT,SX198201-198508

main41336-22010×2iRT141,TT142..GT,GTT198201-198508

41341PINION, REAR DIFFERENTIAL

main41341-14031×2iRT141,TT142..GT,GTT198201-198508

W/LSD

main41341-22020×2iAT14#,CT140,141,ST140198201-199111

main41341-30011×2iCT147,KT147,TT147,YT140198201-199610

main41341-30020×2iRT141,TT142..GT,GTT198201-198508

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22010iTT142..SX198201-198310

main41342-22020iRT141,TT142..GT,GTT198201-198508

main41342-30011iYT140198805-199804

main41342-39015iCT147,KT147,TT147,YT140198201-198805

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-04193iTT142..SX198201-198310

main90250-06058iCT147,KT147,RT141,TT14#,YT140..DLX,GT,GTT,GX,STD198201-199804

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020×2iAT14#,CT14#,KT147,ST140,TT147,YT140198201-199804

main41361-22030×2iAT14#,CT14#,KT147,ST140,TT147,YT140198201-199804

main41361-22040×2iTT142..SX198201-198310

main41361-22051×2iRT141,TT142..GT,GTT198201-198508

main41361-22061×2iRT141,TT142..GT,GTT198201-198508

main41361-22071×2iRT141,TT142..GT,GTT198201-198508

main41361-22081×2iRT141,TT142..GT,GTT198201-198508

main41361-22101×2iRT141,TT142..GT,GTT198201-198508

main41361-22111×2iRT141,TT142..GT,GTT198201-198508

main41361-22140×2iAT14#,CT14#,KT147,ST140,TT147,YT140198201-199804

main41361-22150×2iAT14#,CT14#,KT147,ST140,TT147,YT140198201-199804

main41361-22160×2iTT142..SX198201-198310

main41361-30040×2iRT141,TT142..GT,GTT198201-198508

main41361-30050×2iRT141,TT142..GT,GTT198201-198508

main41361-30060×2iRT141,TT142..GT,GTT198201-198508

main41361-30070×2iRT141,TT142..GT,GTT198201-198508

9011908254

main90119-08254

9453101200

main94531-01200

36 parts on this diagram · 7 diagrams in section
