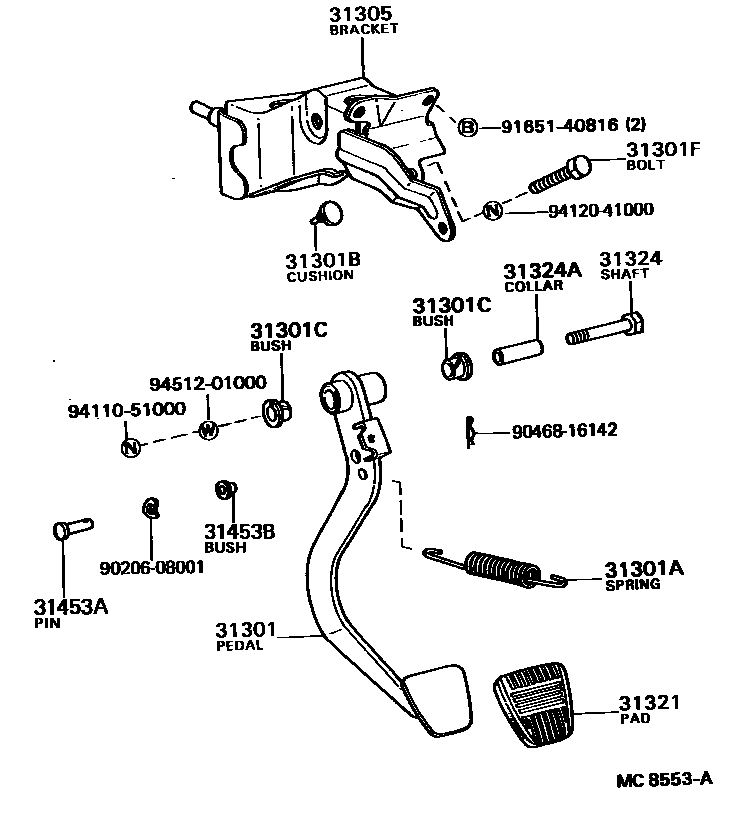

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0004 1 0005 1 0007 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-14050iAT140,CT147,KT147,ST140..MTM198612-198712

main31301-20160iYT140..4H198209-198612

main31301-24010iTT142..5F..GTT198210-198302

main31301-24030iAT141,TT142..5F..(GT,GTT)198302-198508

main31310-20070iCT141,YT140..MTM198612-199804

31301ASPRING(FOR CLUTCH PEDAL)

main90501-40016iCT141,YT140..MTM198612-199804

main90506-14002iAT140,CT14#,KT147,RT141,ST140,TT147,YT140..MTM198201-198612

main90507-20005iAT141,TT142..5F..(GT,GTT)198210-198508

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iAT140,CT14#,KT147,RT141,ST140,TT147,YT140..MTM198201-198612

main90541-06032iCT141,YT140..MTM198612-199804

main90541-07010iAT141,TT142..5F..(GT,GTT)198210-198508

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iAT140,CT14#,KT147,ST140,YT140..MTM198601-199804

main90386-13192×2iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM198201-198601

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10105iAT141,TT142..5F..(GT,GTT)198210-198508

main90101-10369iTT142..5F..SX198201-198310

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main55107-14050iTT142..5F..SX198305-198310

main55107-14100iAT141,TT142..5F..(GT,GTT)198305-198508

main55107-20210iCT141,YT140..MTM198612-199804

main55107-24010iAT140,CT14#,RT141,ST140,TT147,YT140..MTM; TT142..5F..SX198201-198305

main55107-24020iTT142..5F..GTT198210-198305

31321PAD, CLUTCH PEDAL

main31321-14010iAT140,CT14#,RT141,ST140,TT14#..MTM198201-198208

main31321-14020iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM198208-199804

31324SHAFT, CLUTCH PEDAL

main90101-10039iAT140,CT147,KT147,ST140..MTM198612-198712

main90101-10081iCT141,YT140..MTM198612-199804

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10021iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM198201-199804

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM198207-198612

main90240-08027iCT14#..5F198201-198207

main90240-08058iCT141,YT140..MTM198612-199804

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..MTM198201-199804

9020608001

main90206-08001

9046816142

main90468-16142

9165140816

main91651-40816

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

17 parts on this diagram · 4 diagrams in section
