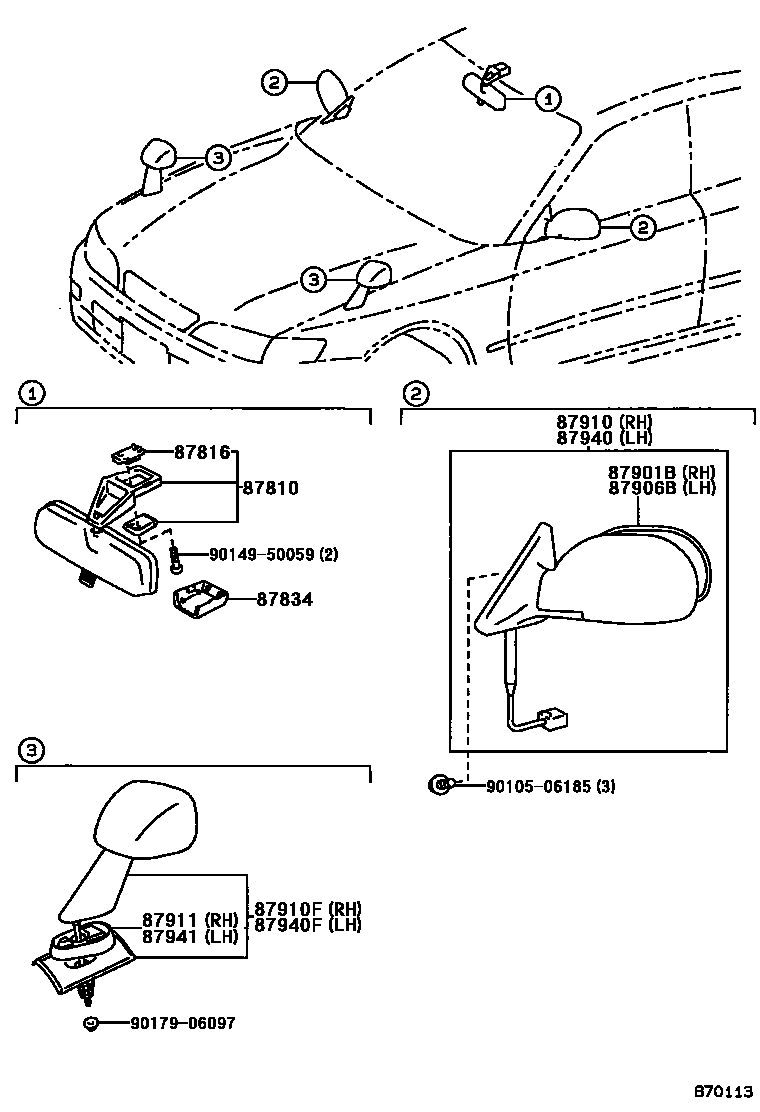

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-01040-B0iST20#199410-199508

main87810-01040-B3iST20#199508

main87810-01040-K0iST20#..TRX199309-199405

main87810-12240-B3iST20#199508

main87810-12240-K1iST200,201,202,203..TRX199309-199508

main87810-12240-S3iST20#199309-199508

87816SPRING, INNER REAR VIEW MIRROR

main74372-01020iST20#199309

main74372-30030iST20#199309

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12030-B4iST20#199508

LT.GRAY,TRIM1#

main87834-12030-K1iST200,201,202,203..TRX199309-199508

LIGHT TAUPE,TRIM9#

main87834-12030-S3iST20#199309-199508

GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-2A160iST20#199309

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-2A160iST20#199309

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-2B240-A0iST200..180E199606-199804

main87910-2B240-B0iST20#..180G,200E,200G,200GT,GT4WD199508

SILVER ME,199

main87910-2B240-C0iST20#..180G,200E,200G,200GT,GT4WD199508

BLACK,202

main87910-2B240-D0iST200..180E199606-199804

main87910-2B240-G0iST20#..180G,200E,200G,200GT,GT4WD199508

DK GREEN MICA,6M1

main87910-2B240-J0iST20#..180G,200E,200G,200GT,GT4WD199508

DK.BLUE M.M.,8L2

main87910-2B880-A0iST200,202,203..TR,TRR199309-199404

SUPER WHITE 2,040

main87910-2B880-A1iST200,202,203..TR,TRR199309-199404

WARM GRAY PM,046

main87910-2B880-B0iST200,202,203..TR,TRR199309-199404

LT.GREIGE ME.,1A2

main87910-2B880-C0iST200,202,203..TR,TRR199309-199404

BRACK,202

main87910-2B880-D0iST200,202,203..TR,TRR199309-199404

RED MC,3K4

main87910-2B880-G0iST200,202,203..TR,TRR199309-199404

DK GREEN MICA,6M1

main87910-2B881-A0iST200..TR199410-199508

SUPER WHITE 2,040

main87910-2B881-A1iST200..TR199410-199508

WARH GRAY PM,046

main87910-2B881-A2iST200..180E199508

WHITE PM,049

main87910-2B881-B0iST200,202,203..TR,TRR199404-199410

LT.GREIGE ME,1A2

main87910-2B881-B1iST200..180E199508

SILVER ME,199

main87910-2B881-C0iST200..180E,TR199410

BLACK,202

main87910-2B881-D0iST200..180E,TR199410

RED MC,3K4

main87910-2B881-G0iST200..180E,TR199410

DK GREEN MICA,6M1

main87910-2B881-J0iST200..180E199508

DK.BLUE M.M.,8L2

main87910-2B890-A0iST20#..TRG,TRX199309-199404

SUPER WHITE 2,040

main87910-2B890-A1iST20#..TRG,TRX199309-199404

WARM GRAY PM,046

main87910-2B890-B0iST20#..TRG,TRX199309-199404

LT.GREIGE ME,1A2

main87910-2B890-C0iST20#..TRG,TRX199309-199404

BLACK,202

main87910-2B890-D0iST20#..TRG,TRX199309-199404

RED MICA,3K4

main87910-2B890-G0iST20#..TRG,TRX199309-199404

DK.GREEN MICA,6M1

main87910-2B891-A0iST20#..TRG,TRG4,TRX199404-199410

SUPER WHITE 2,040

main87910-2B891-A1iST200..TR199504-199508

main87910-2B891-B0iST20#..TRG,TRG4,TRX199404-199410

LT.GREIGE ME,1A2

main87910-2B891-B1iST200,202..TRX199406-199503

main87910-2B891-C0iST20#..TRG,TRG4,TRR,TRX199410-199508

BLACK,202

main87910-2B891-D0iST20#..TRG,TRG4,TRR,TRX199410-199508

RED MC,3K4

main87910-2B891-G0iST200..TR199504-199508

87910FMIRROR ASSY, FENDER, RH

main87910-2D010iST20#199309-199508

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-20290iST20#199309-199508

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-2B700-A0iST200..180E199606-199804

main87940-2B700-B0iST200..180E199606-199804

main87940-2B700-C0iST20#..180G,200E,200G,200GT,GT4WD199508

BLACK,202

main87940-2B700-D0iST200..180E199606-199804

main87940-2B700-G0iST20#..180G,200E,200G,200GT,GT4WD199508

DK GREEN MICA,6M1

main87940-2B700-J0iST20#..180G,200E,200G,200GT,GT4WD199508

DK.BLUE M.M.,8L2

main87940-2B880-A0iST200,202,203..TR,TRR199309-199404

SUPER WHITE 2,040

main87940-2B880-A1iST200,202,203..TR,TRR199309-199404

WARM GRAY PM,046

main87940-2B880-B0iST200,202,203..TR,TRR199309-199404

LT.GREIGE ME,1A2

main87940-2B880-C0iST200,202,203..TR,TRR199309-199404

BLACK,202

main87940-2B880-D0iST200,202,203..TR,TRR199309-199404

RED MICA,3K4

main87940-2B880-G0iST200,202,203..TR,TRR199309-199404

DK.GREEN MICA,6M1

main87940-2B881-A0iST200,202,203..TR,TRR199404-199410

SUPER WHITE 2,040

main87940-2B881-A1iST200..TR199410-199508

WARM GRAY PM,046

main87940-2B881-A2iST200..180E199508

WHITE PM,049

main87940-2B881-B0iST200,202,203..TR,TRR199404-199410

LT.GREIGE ME,1A2

main87940-2B881-B1iST200..180E199508

SILVER ME,199

main87940-2B881-C0iST200..180E,TR199410

BLACK,202

main87940-2B881-D0iST200,202,203..TR,TRR199404-199410

RED MC,3K4

main87940-2B881-G0iST200,202,203..TR,TRR199404-199410

DK GREEN MICA,6M1

main87940-2B881-J0iST200..180E199508

DK.BLUE M.M.,8L2

main87940-2B890-A0iST20#..TRG,TRX199309-199404

SUPER WHITE 2,040

main87940-2B890-A1iST20#..TRG,TRX199309-199404

WARM GRAY PM,046

main87940-2B890-B0iST20#..TRG,TRX199309-199404

LT.GREIGE ME,1A2

main87940-2B890-C0iST20#..TRG,TRX199309-199404

BLACK,202

main87940-2B890-D0iST20#..TRG,TRX199309-199404

RED MICA,3K4

main87940-2B890-G0iST20#..TRG,TRX199309-199404

DK.GREEN MICA,6M1

main87940-2B891-A0iST20#..TRG,TRG4,TRR,TRX199410-199508

SUPER WHITE,040

main87940-2B891-A1iST200..TR199504-199508

main87940-2B891-B0iST20#..TRG,TRG4,TRX199404-199410

LT.GREIGE ME,1A2

main87940-2B891-B1iST200,202..TRX199406-199503

main87940-2B891-C0iST20#..TRG,TRG4,TRR,TRX199410-199508

BLACK,202

main87940-2B891-D0iST20#..TRG,TRG4,TRR,TRX199410-199508

RED MC,3K4

main87940-2B891-G0iST200..TR199504-199508

87940FMIRROR ASSY, FENDER, LH

main87940-2D010iST20#199309-199508

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-20310iST20#199309-199508

9010506185

main90105-06185

9014950059

main90149-50059

9017906097

main90179-06097

14 parts on this diagram · 1 diagram in section
