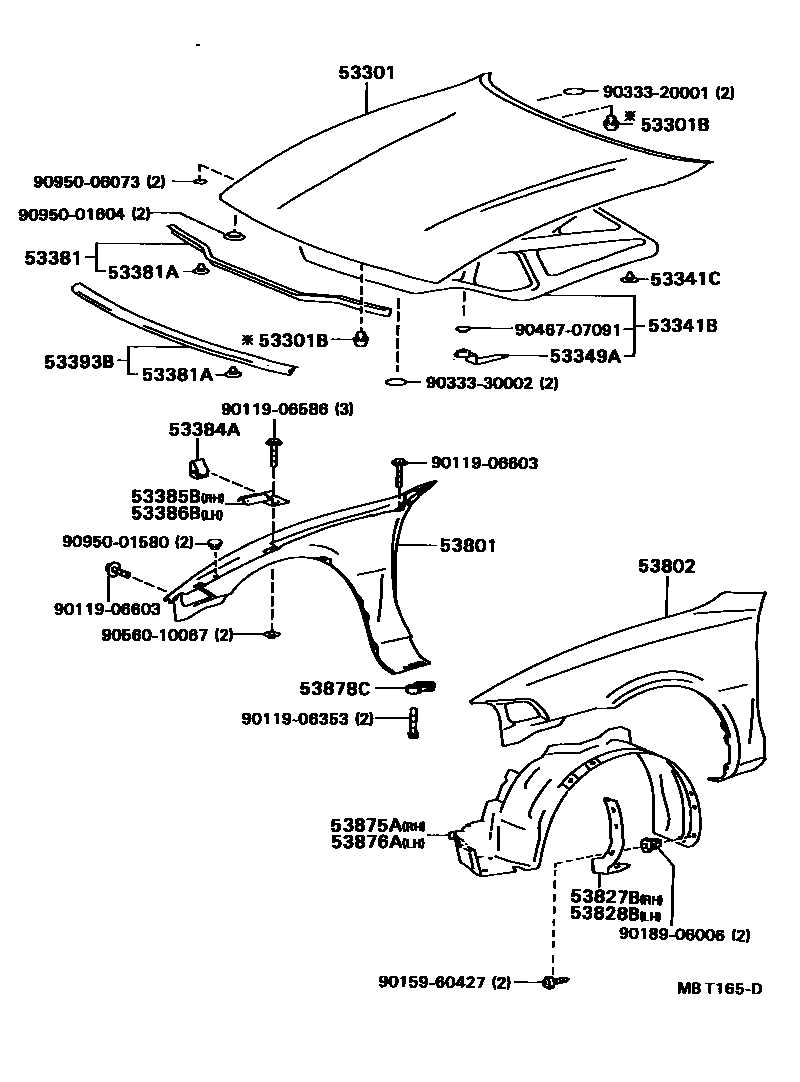

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-20310iST18#198909-199309

53301BCUSHION, HOOD BUMPER

main90541-09055iST18#199208-199309

main90541-09069×2iST18#198909-199309

main90541-09075iST18#198909-199309

53341BINSULATOR, HOOD

main53341-20210iST182,183..TWC198909-199309

53341CCLIP(FOR HOOD INSULATOR)

main90467-08081×13iST182,183..TWC198909-199309

53349ARETAINER, HOOD INSULATOR

main53349-20020iST182,183..TWC198909-199309

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-20120iST18#198909-199309

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×18iST18#198909-199309

53384ABUMPER, FENDER TO HOOD

main53384-20030×2iST18#198909-199309

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-14010iST18#198909-199309

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-14010iST18#198909-199309

53393BPROTECTOR, HOOD, FRONT

main53393-20020iST18#198909-199309

53801FENDER SUB-ASSY, FRONT RH

main53801-2B050iST18#198909-199108

main53801-2B120iST18#198909-199108

main53801-2B240iST18#199108-199309

main53801-2B250iST18#199108-199309

53802FENDER SUB-ASSY, FRONT LH

main53802-2B110iST18#198909-199108

main53802-2B120iST18#198909-199108

main53802-2B240iST18#199108-199309

main53802-2B250iST18#199108-199309

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-20030iST180,181..FG,TR198909-199309

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-20030iST180,181..FG,TR198909-199309

53875ALINER, FRONT FENDER, RH

main53875-20180iST18#198909-199309

53876ALINER, FRONT FENDER, LH

main53876-20190iST18#198909-199309

53878CSPACER, FRONT FENDER

main53878-20040×2iST18#198909-199309

9011906353

main90119-06353

9011906586

main90119-06586

9011906603

main90119-06603

9015960427

main90159-60427

9018906006

main90189-06006

9033320001

main90333-20001

9033330002

main90333-30002

9046707091

main90467-07091

9056010067

main90560-10067

9095001580

main90950-01580

9095001604

main90950-01604

9095006073

main90950-06073

30 parts on this diagram · 2 diagrams in section
