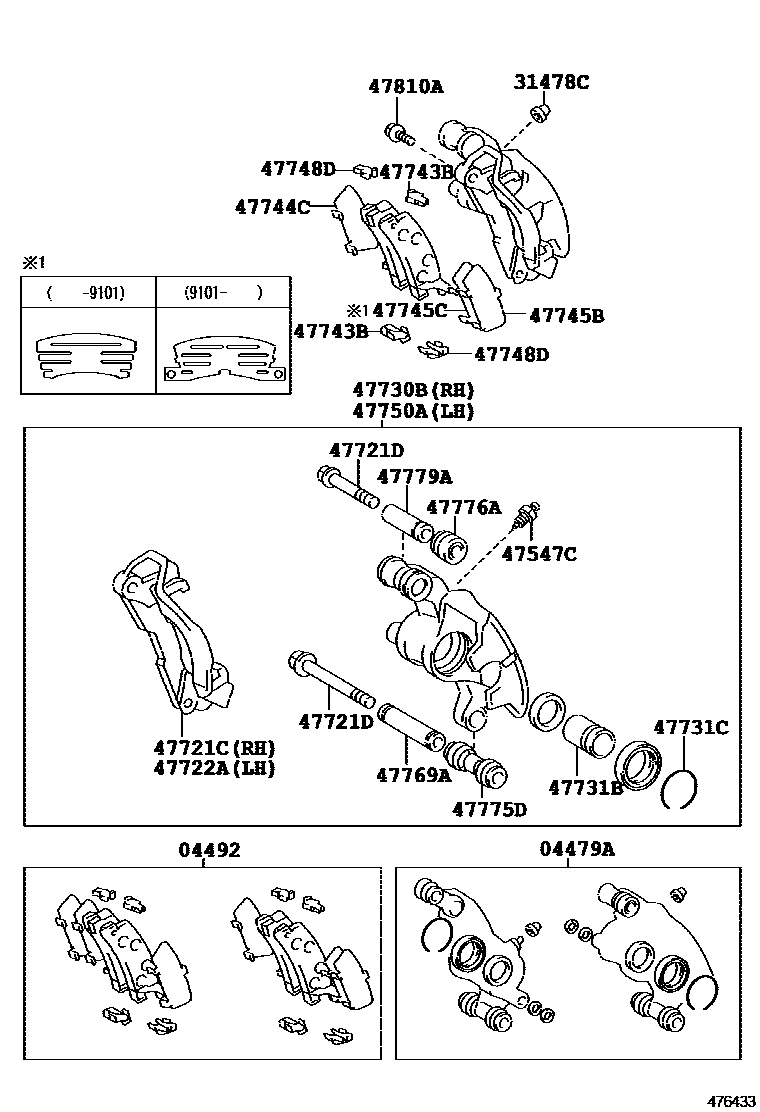

REAR DISC BRAKE CALIPER & DUST COVER

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-20090i198909-199309

04492PAD KIT, DISC BRAKE, REAR

main04492-20060i198909-199101

main04492-20061i199101-199309

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2i198909-199309

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2i198909-199309

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-20310i198909-199307

main47721-20430i199307-199309

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90109-08098×2i198909-199309

main90119-08431×2i198909-199309

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-20310i198909-199307

main47721-20430i199307-199309

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-20420i198909-199309

47731BPISTON, REAR DISC BRAKE

main47731-20110×2i198909-199309

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-45001×2i198909-199309

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-12060×4i198909-199307

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-12071×2i198909-199309

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-32030×2i198909-199101

main47745-32090×2i199101-199309

47745CSHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-32031×2i198909-199101

main47742-32090×2i199101-199309

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47716-12020×4i199307-199309

main47748-12110×4i198909-199307

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-20420i198909-199309

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010×2i198909-199309

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010×2i198909-199309

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-12010×2i198909-199309

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-12010×2i198909-199309

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379×4i198909-199309

21 parts on this diagram · 2 diagrams in section
