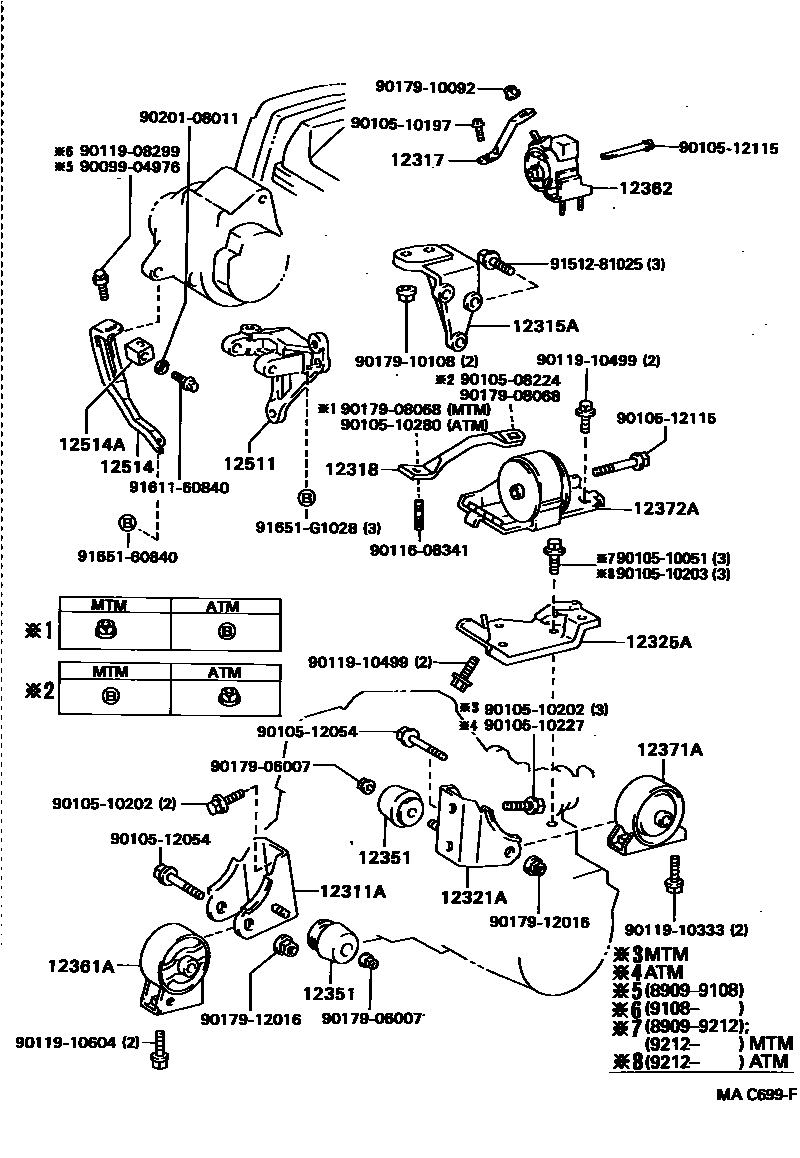

MOUNTING

0001 1 0002 1

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-74080i3S#,4SF#..ST18#198909-199309

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-74030i3S#,4SF#..ST18#198909-199309

12317STAY, ENGINE MOUNTING, RH

main12317-74070i3SGE..ST182,183198909-199309

main12317-74080i3SFE,4SF#..ST18#198909-199309

12318STAY, ENGINE MOUNTING, LH

main12318-74090i3S#,4SF#..ST18#..MTM198909-199309

main12318-74100i3S#,4SF#..ST18#..ATM198909-199309

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-74150i3S#,4SF#..ST18#..ATM198909-199309

main12321-74180i3S#,4SF#..ST18#..MTM198909-199309

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-74080i3S#,4SF#..ST18#..MTM198909-199309

main12325-74090i3S#,4SF#..ST18#..ATM198909-199309

12351DAMPER, ENGINE MOUNTING

main12351-74060i3S#,4SF#..ST18#..ATM; 3S#,4SF#..ST18#..MTM198909-199309

main12351-74070i3S#,4SF#..ST18#..ATM198909-199309

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-74130i3S#,4SF#..ST18#..MTM198909-199309

main12361-74140i3S#,4SF#..ST18#..ATM198909-199309

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-74120i3SFE,4SF#..ST18#198909-199309

main12362-74150i3SGE..ST182,183..MTM198909-199309

main12362-74160i3SGE..ST182,183..ATM198909-199309

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-74180i3S#,4SF#..ST18#..MTM198909-199309

main12371-74190i3S#,4SF#..ST18#..ATM198909-199309

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-74200i3S#,4SF#..ST18#..MTM198909-199309

main12372-74211i3SFE,4SF#..ST18#..ATM198909-199309

main12372-74240i3SGE..ST182,183..ATM198909-199309

12511BRACKET, ALTERNATOR, NO.1

main12511-74050i3SFE,4SF#..ST18#198909-199108

main12511-74051i3SFE,4SFE..ST18#199108-199309

main12511-74060i3SGE..ST182,183198909-199309

12514BAR, ALTERNATOR BELT ADJUSTING

main12514-74040i3SFE,4SF#..ST18#198909-199309

12514ASLIDER, FAN BELT ADJUSTING

main16385-64011i3SFE,4SF#..ST18#198909-199009

9009904976

main90099-04976

9010508224

main90105-08224

9010510051

main90105-10051

9010510197

main90105-10197

9010510202

main90105-10202

9010510203

main90105-10203

9010510227

main90105-10227

9010510280

main90105-10280

9010512054

main90105-12054

9010512115

main90105-12115

9011608341

main90116-08341

9011908299

main90119-08299

9011910333

main90119-10333

9011910499

main90119-10499

9011910604

main90119-10604

9017906007

main90179-06007

9017908068

main90179-08068

9017910092

main90179-10092

9017910108

main90179-10108

9017912016

main90179-12016

9020108011

main90201-08011

9151281025

main91512-81025

9161160840

main91611-60840

9165160840

main91651-60840

91651G1028

main91651-G1028

39 parts on this diagram · 2 diagrams in section
